Key On Reminder System
Key On Reminder System

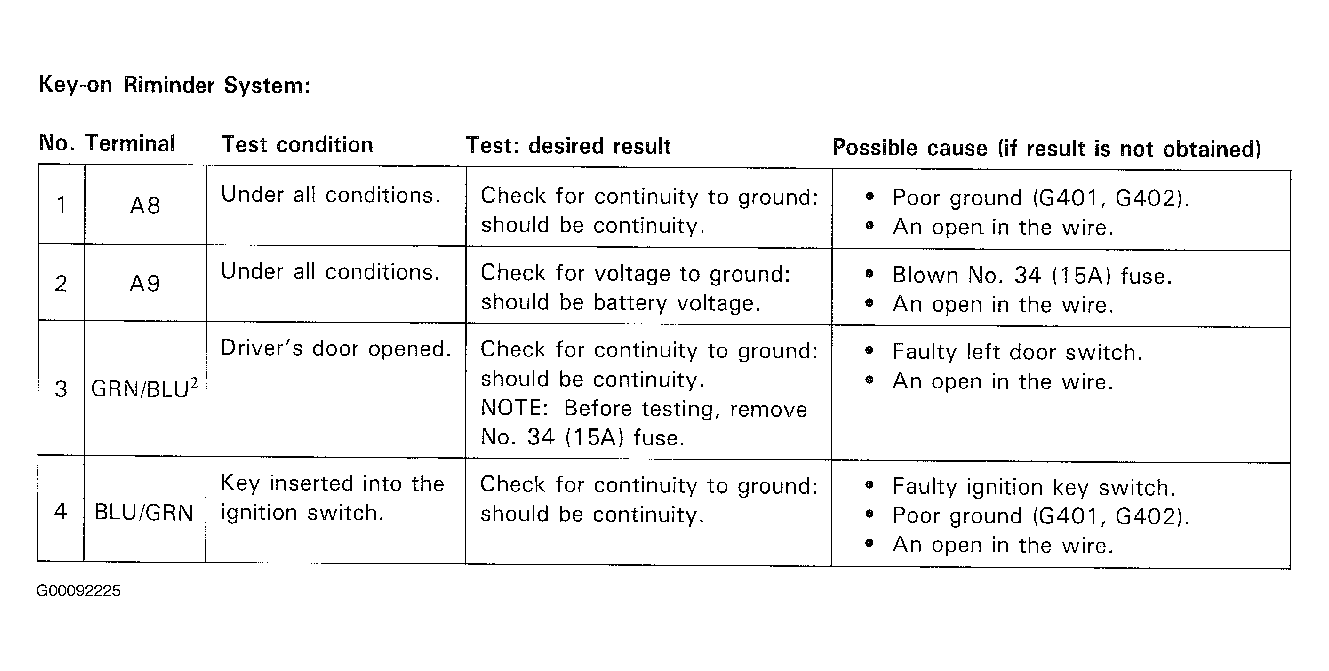

Fig 1: Key On Reminder Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
