Light-On Warning System
Light-On Warning System
See
Figure
for connector terminal identification.

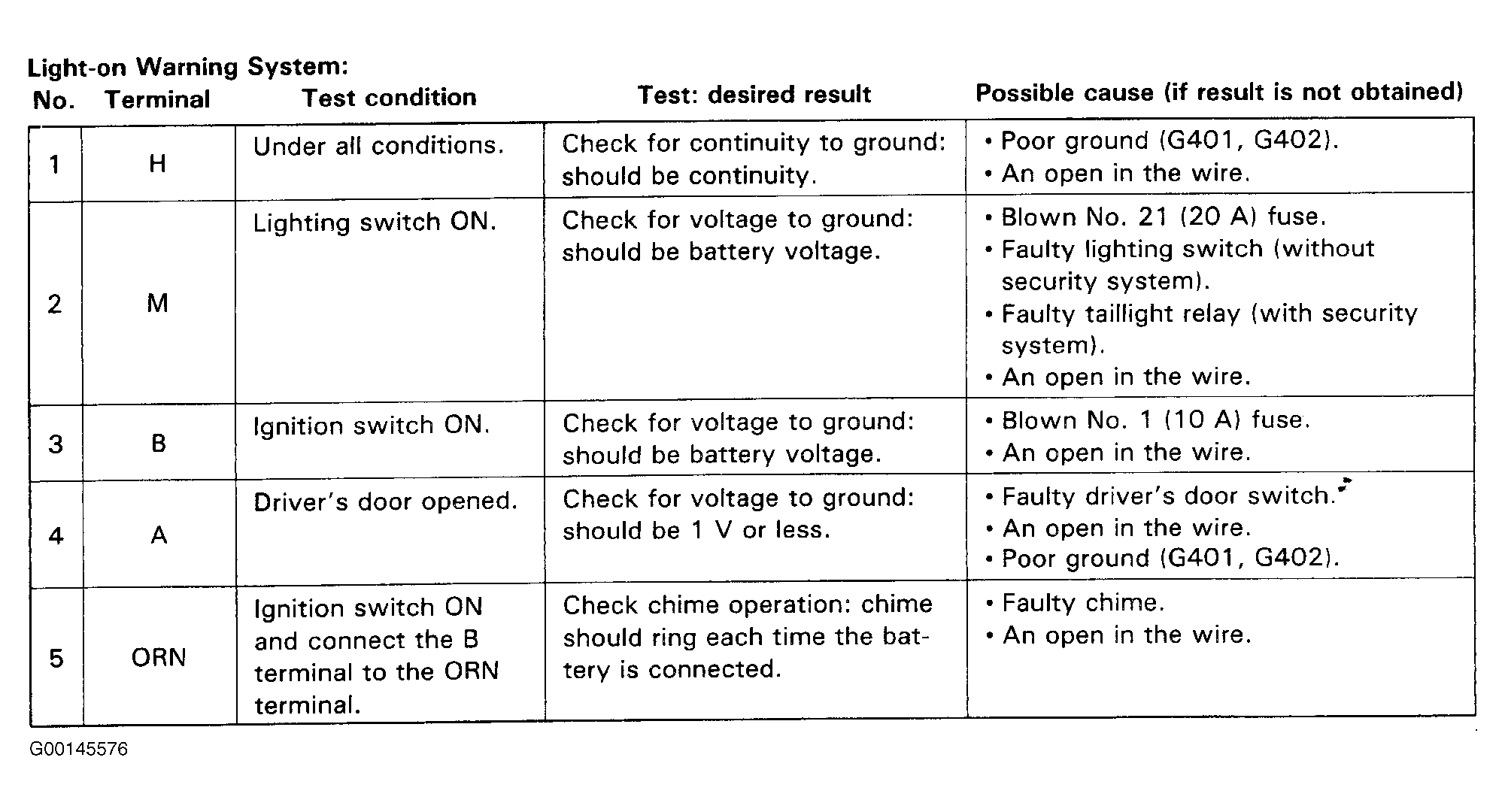

Fig 1: Lights-On Warning System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
