Brake Bulb Check System
For testing procedure, see
Fig 1
.

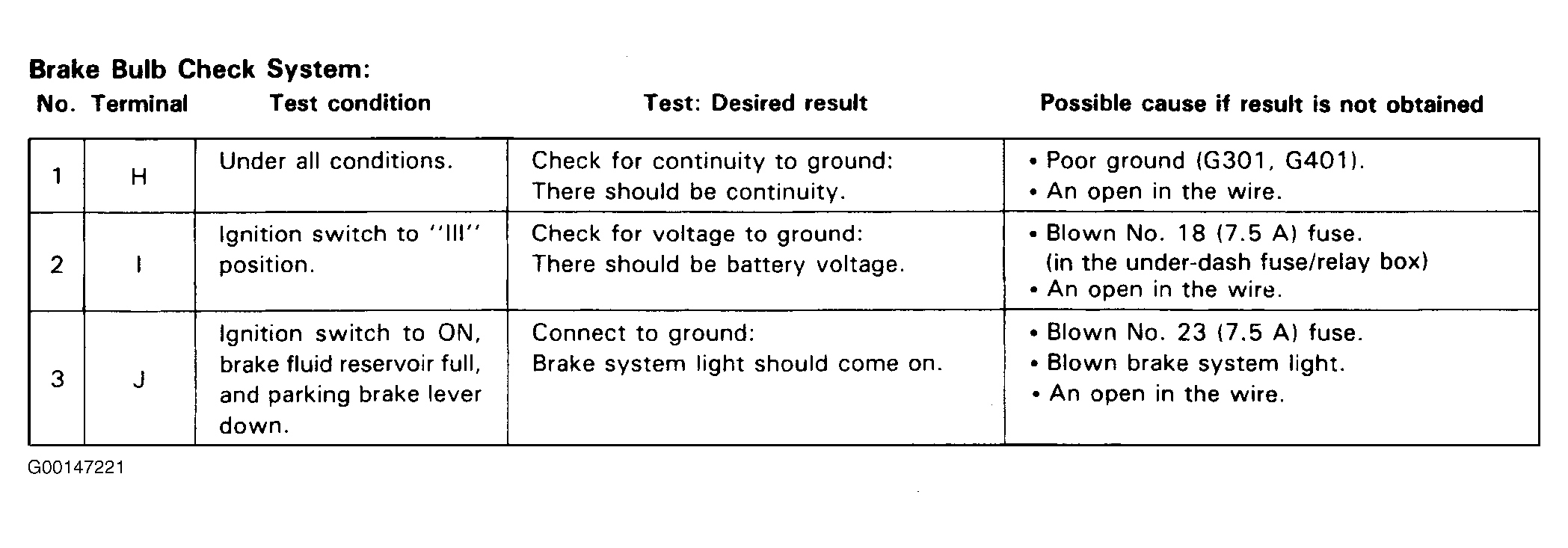

Fig 1: Brake Warning System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
