Seat Belt Switch

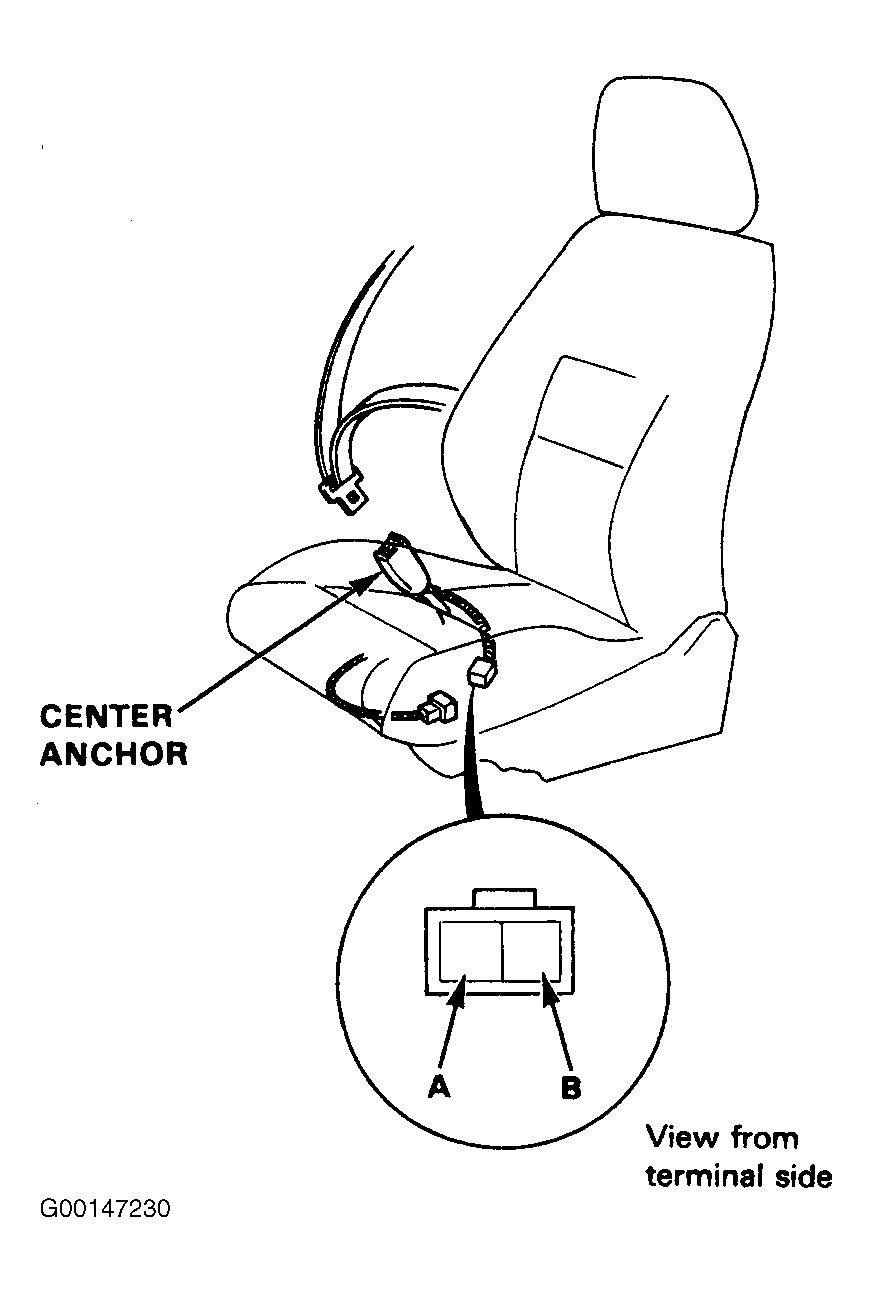

- Slide the drivers seat forward until the seat belt center anchor bolt is accessible, to disconnect the 2-P connector from the seat belt switch. See Fig 1 .
- There should be continuity between the "A" and "B" terminals when the drivers seat belt is not buckled. There should be no continuity when the drivers seat belt is buckled.
