Alternator & Regulator: Description

Nippondenso 3-phase alternators use 4 positive and 4 negative diodes to rectify current. An internal Integrated Circuit (IC) voltage regulator controls charging system voltage. See Fig 1.

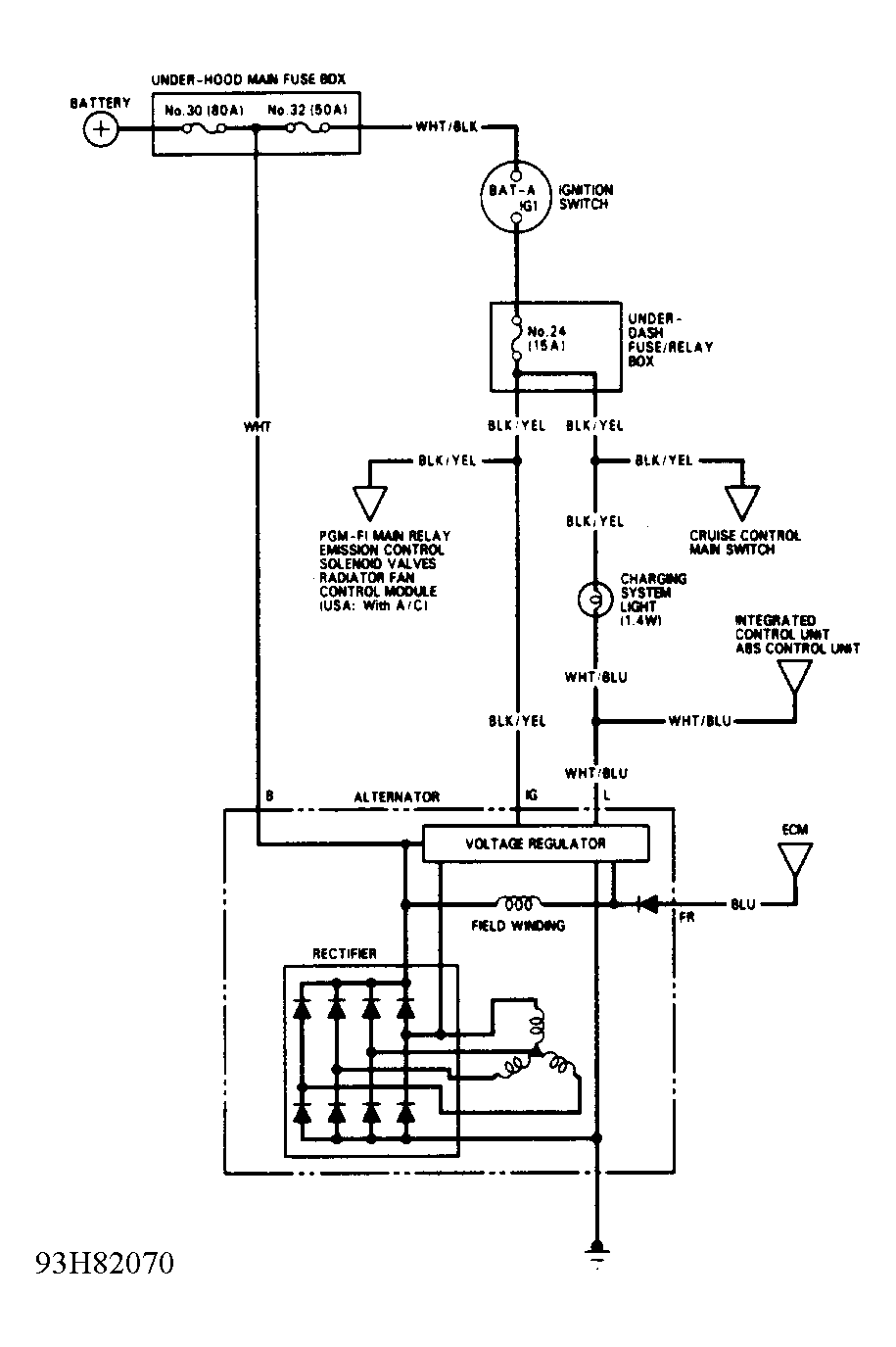

Fig 1: Charging System Wiring Schematic
