Wiring Diagrams - Vigor

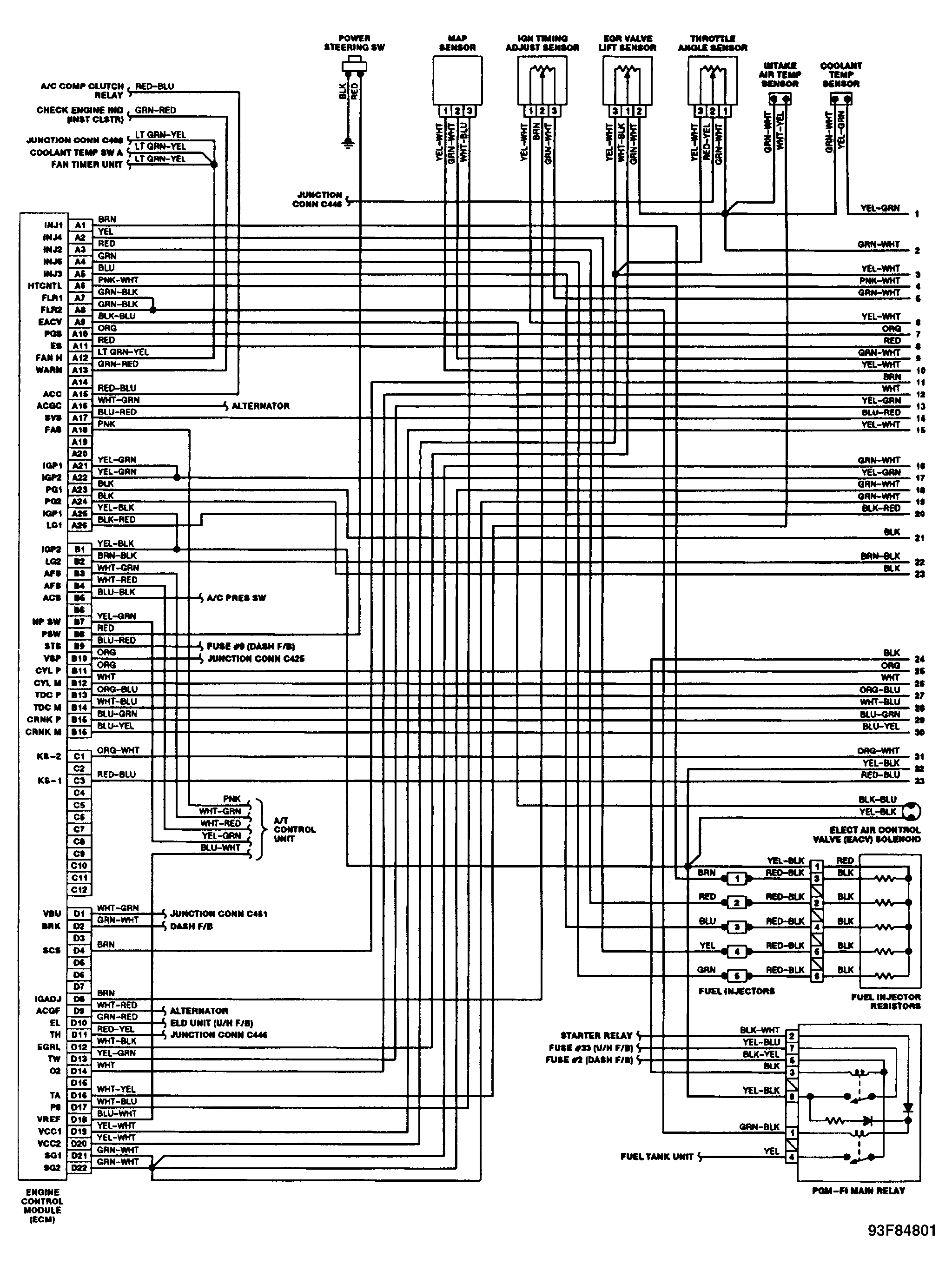

Fig 1: Wiring Diagram (Vigor 2.5L - 1 Of 2)

G93F84801

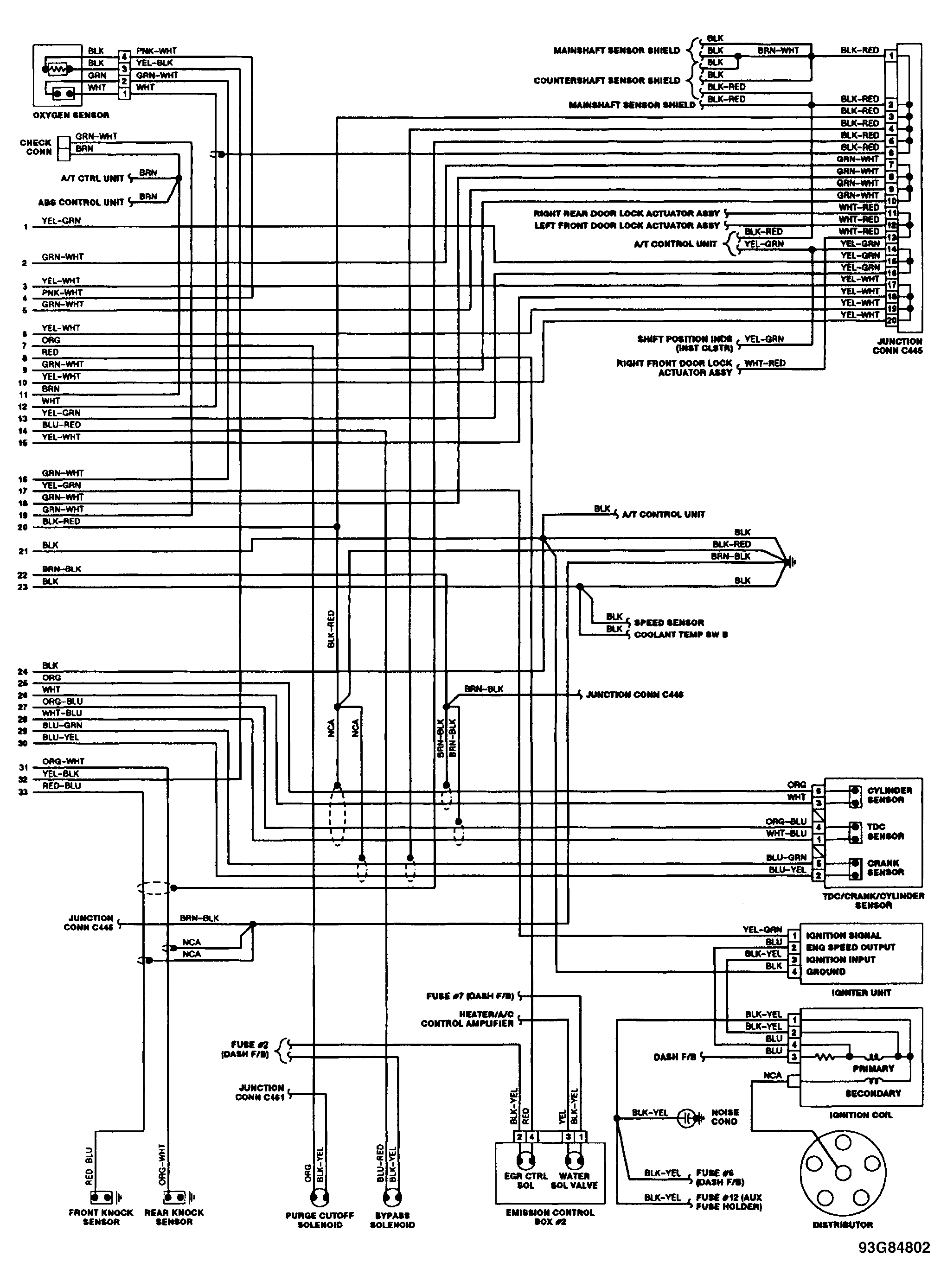

Fig 2: Wiring Diagram (Vigor 2.5L - 2 Of 2)

G93G84802
