Piston Pin Installation

WARNING: This page is about a different variant/trim than selected.

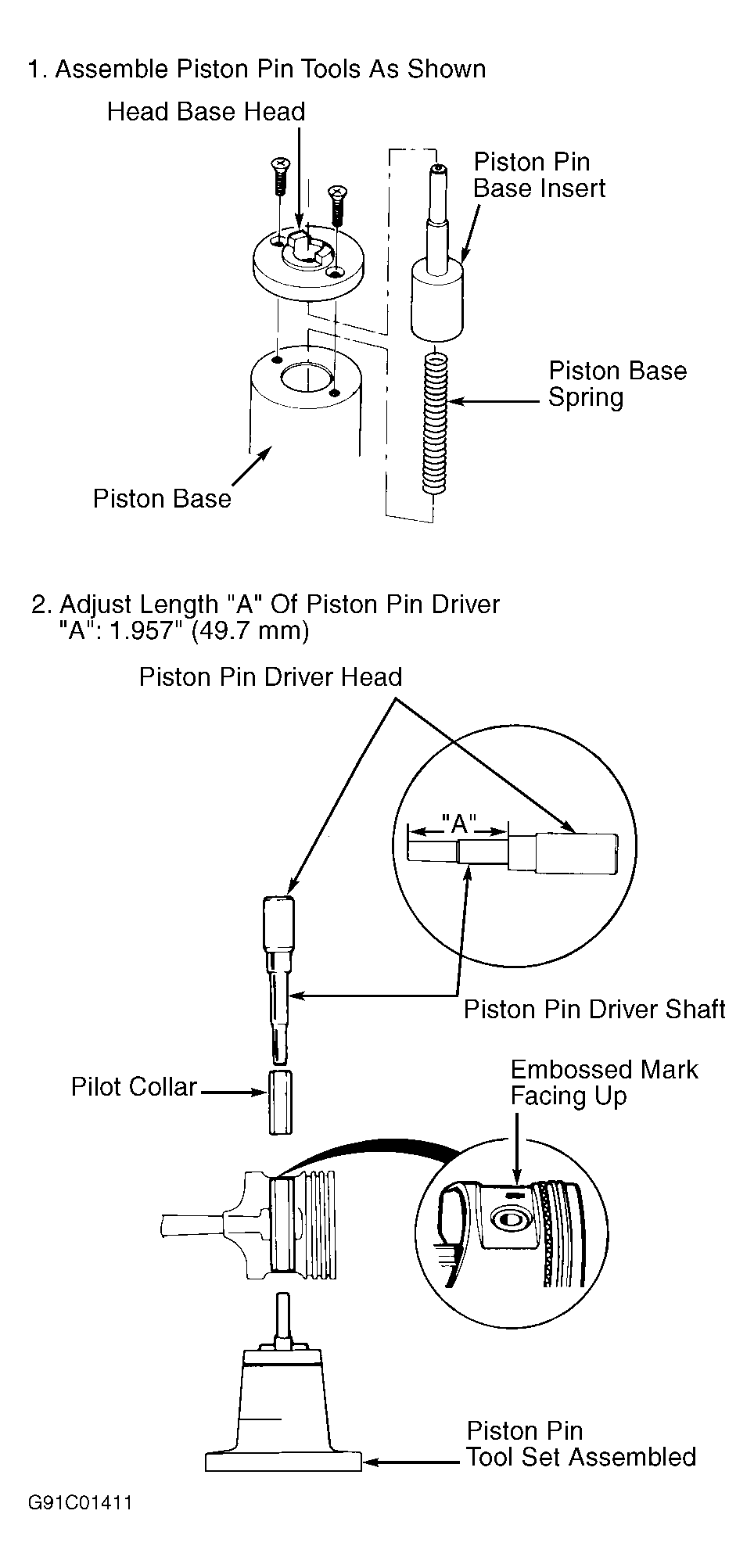

  1. Ensure piston and connecting rod are positioned as shown. See Figure . Turn handle on Piston Pin Driver (07973-PE00320) so piston driver length is 1.957" (49.70 mm).
  2. Install Pilot Collar (07LAF-PR30100) into piston and connecting rod. Lubricate new piston pin lightly. Place piston onto base. Press in piston pin.
