Heater System: Description

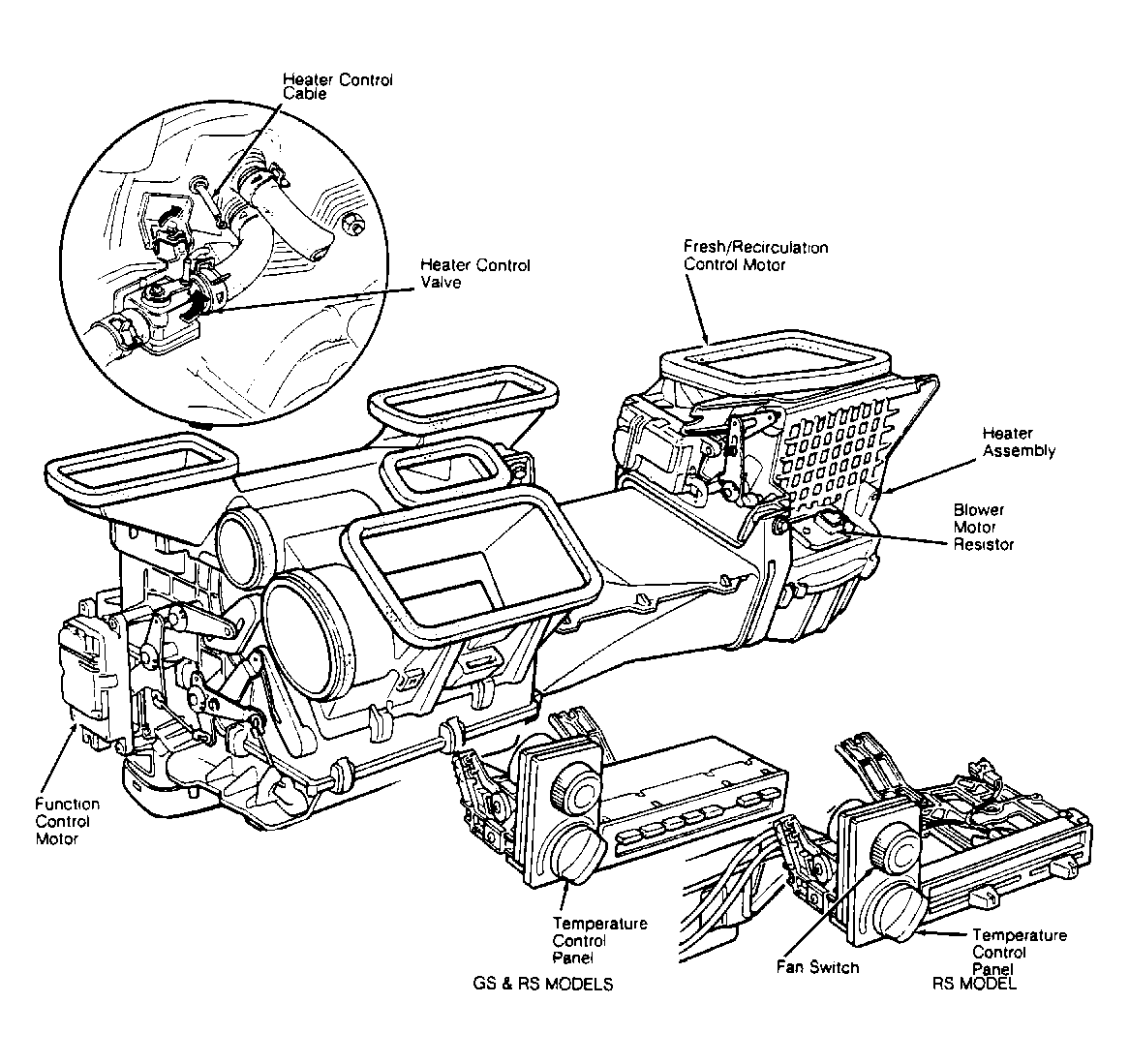

The heater system delivers fresh or recirculated air to the passenger compartment. Airflow passes through the heater unit and is warmed and distributed to selected passenger compartment outlets. The outlets are chosen by function control buttons or a lever. The temperature control knob regulates temperature of delivered air. The blower motor is controlled by turning the fan speed dial to any of 4 positions. See Fig 1 .
