Shoulder Buckle Motor Test

Remove the center pillar lower trim panel.
Disconnect the 2-P connector from the shoulder buckle motor see Fig 1 .
Test the motor operation by connecting battery leads to the No.1 and No. 2 terminals. Test the motor in each direction, by switching the leads from the battery.
CAUTION: When the motor stops running, disconnect a battery lead immediately.
If the motor dose not run, replace the shoulder seat belt rail assembly.

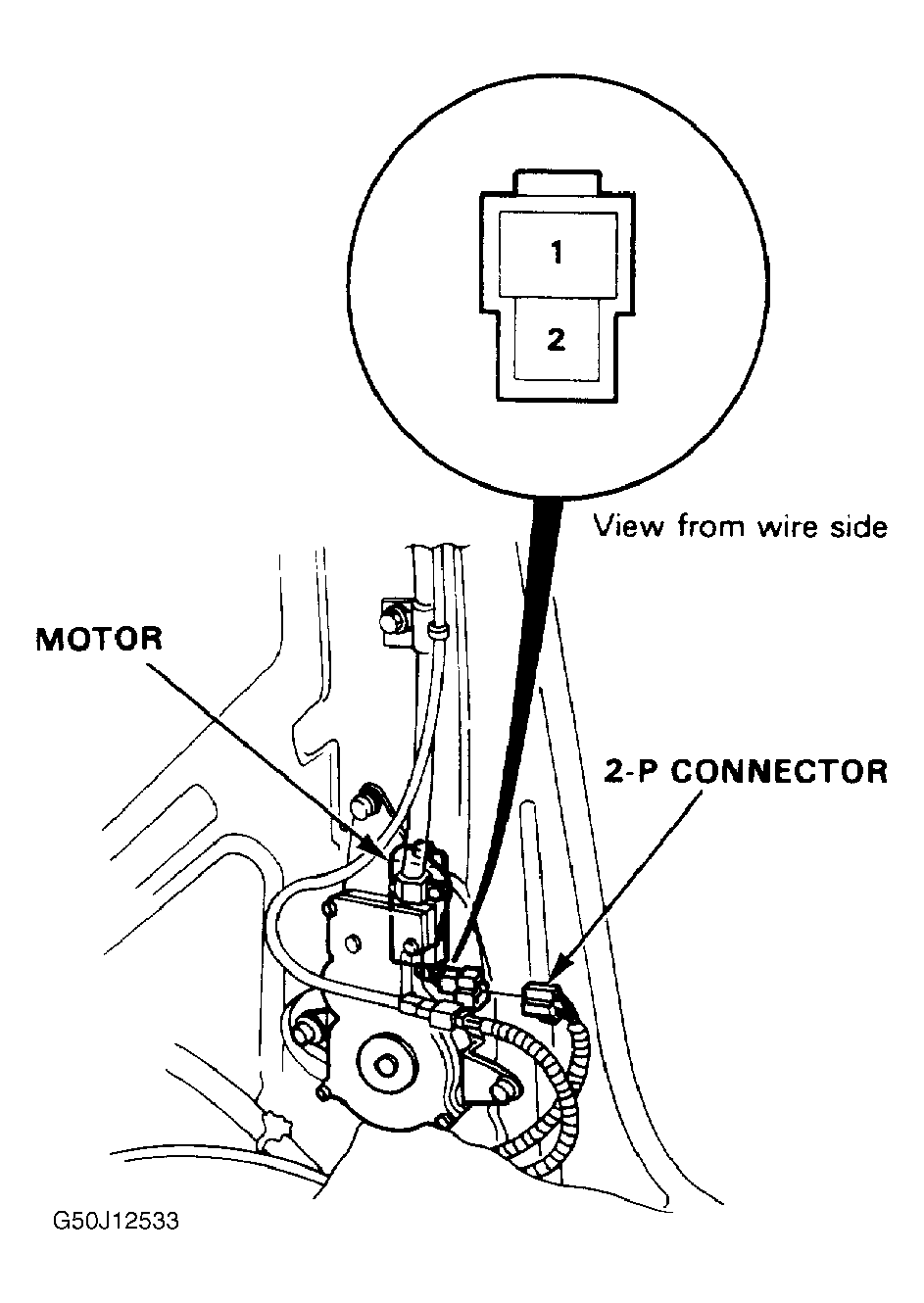

Fig 1: Shoulder Seat Belt Motor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
