Overhaul - "Y" Series: Differential: Introduction: Reassembly

1. Coat all parts with molylube before reassembly. To check backlash of both pinion gears, place differential assembly on blocks and install both axles. Backlash should be .002-.006" (.05-.15 mm). See Fig 2 .
2. If backlash exceeds limit, replace carrier assembly. After final backlash check and with all tolerances correct, install ring gear. Ensure chamfer on inside diameter of ring gear is facing the carrier.

Fig 1: Exploded View Of Differential Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.

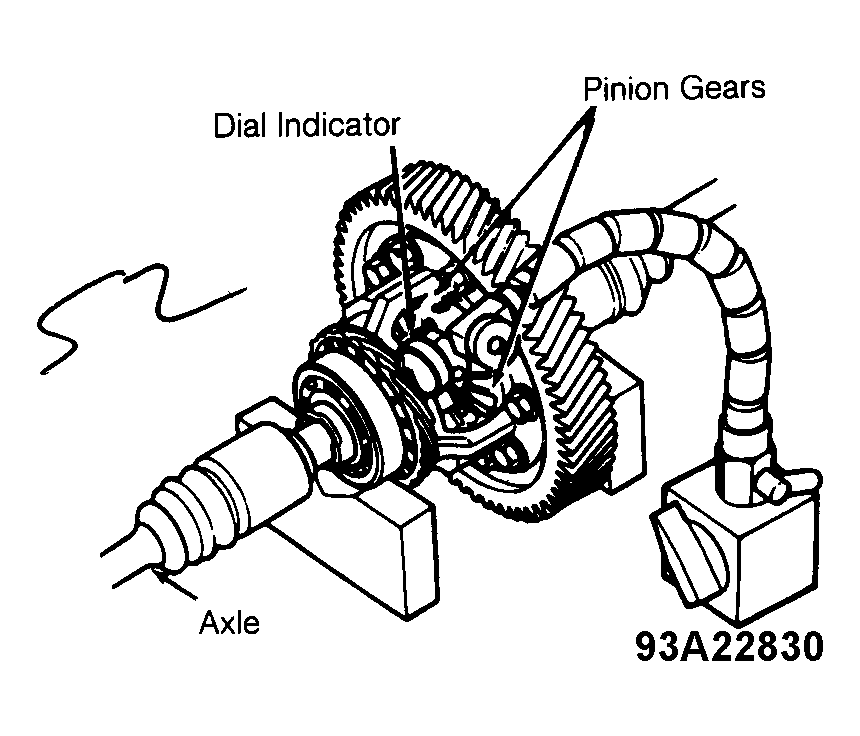

Fig 2: Measuring Pinion Gear Backlash

Courtesy of AMERICAN HONDA MOTOR CO., INC.
