Key-In Reminder System
Key-In Reminder System
NOTE:
See
Figure
or
Figure
for connector terminal identification.
For testing procedures, see
Fig 1
.

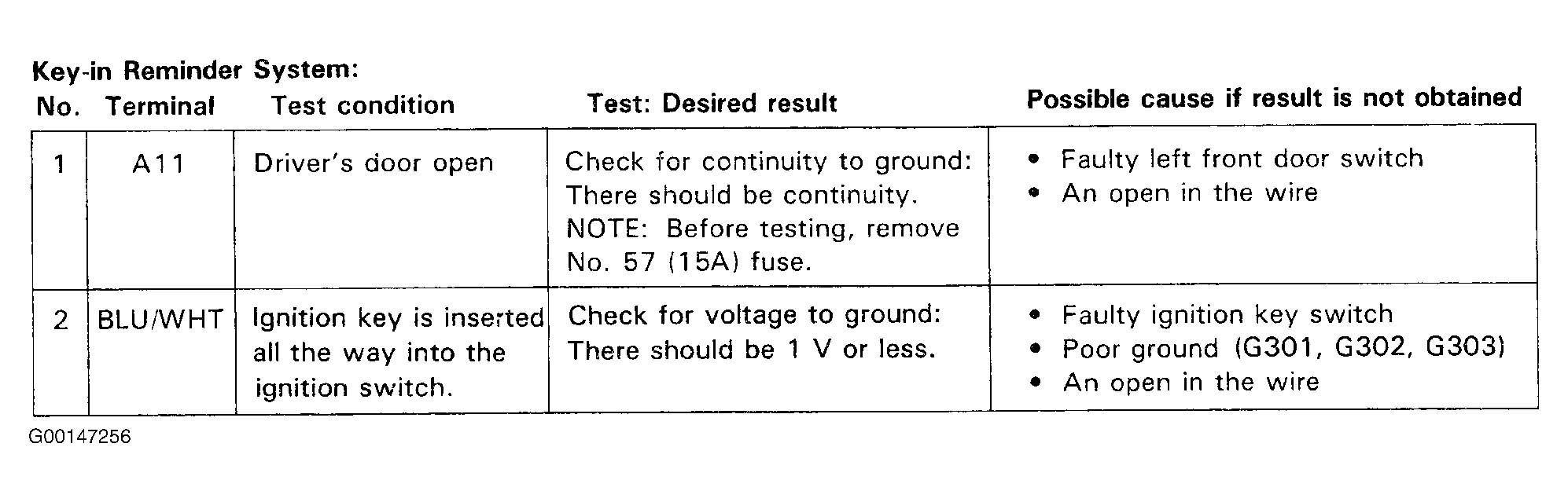

Fig 1: Key-In Reminder System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
