Rear Window Defogger Timer System

NOTE: See Figure or Figure for connector terminal identification.

For testing procedures, see Fig 1 .

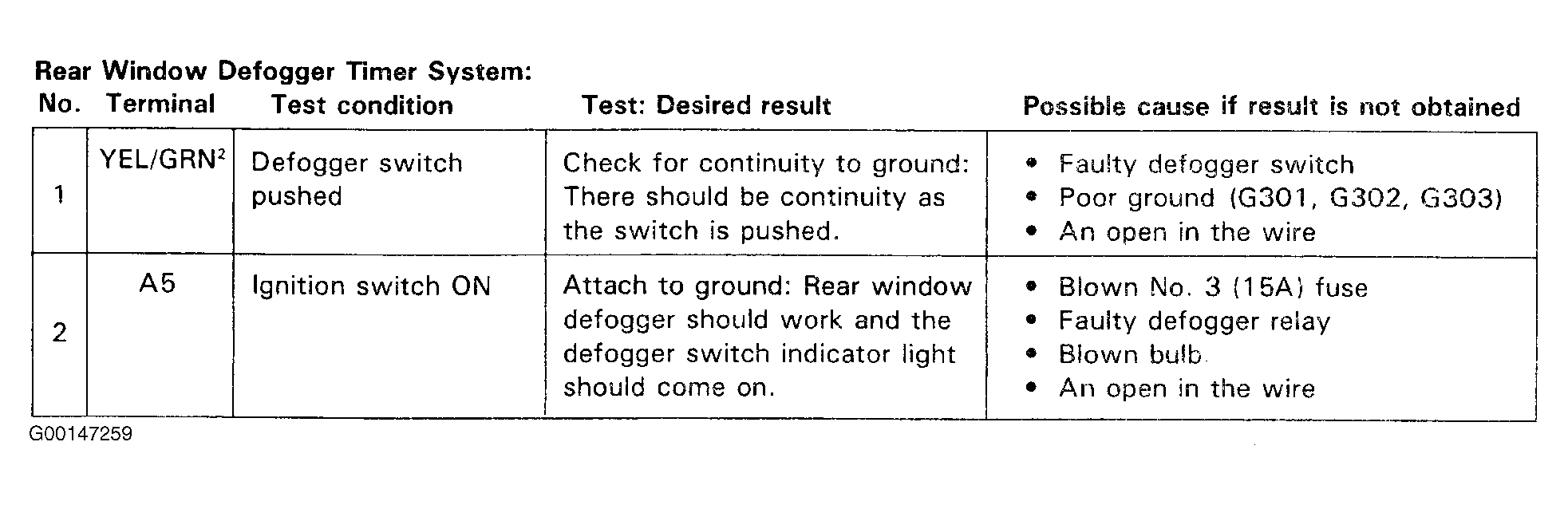

Fig 1: Rear Window Defogger Timer System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
