Component Locations
Component Locations

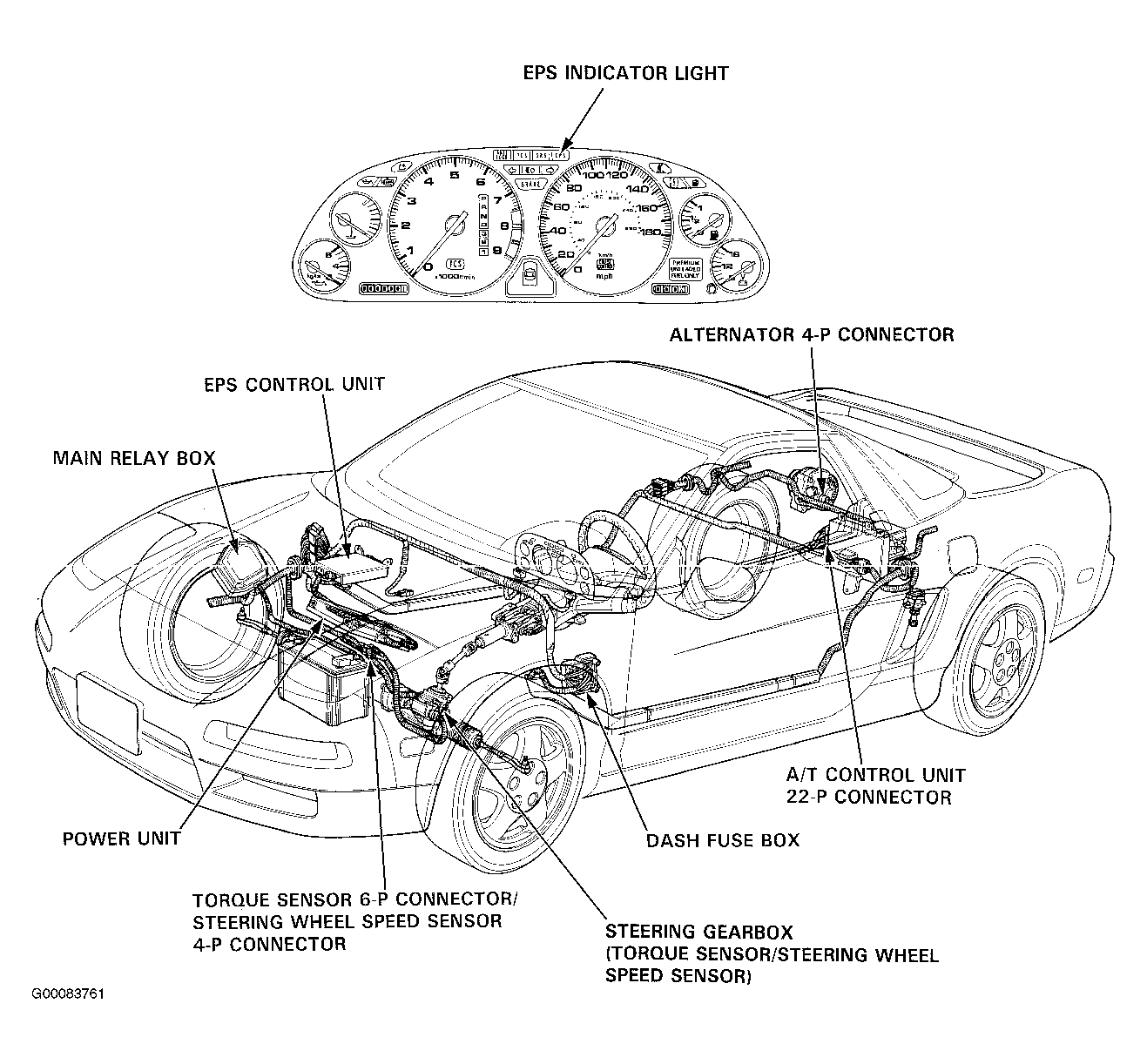

Fig 1: Major Component Locations (1 Of 2)
Courtesy of AMERICA HONDA MOTOR CO., INC.
Fig 2: Major Component Locations (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICA HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
