Diagnostic Trouble Code Definitions

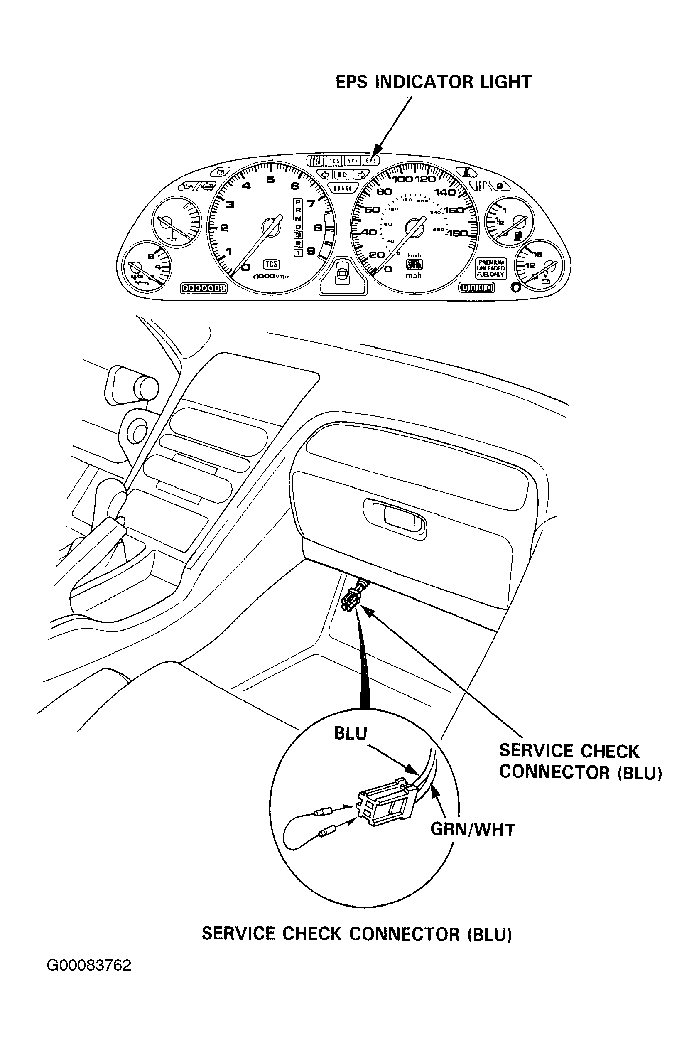

NOTE: Connect service check connector with a jumper wire. See Figure . Turn on ignition switch. Read problem code and perform test according to Fig 1 .

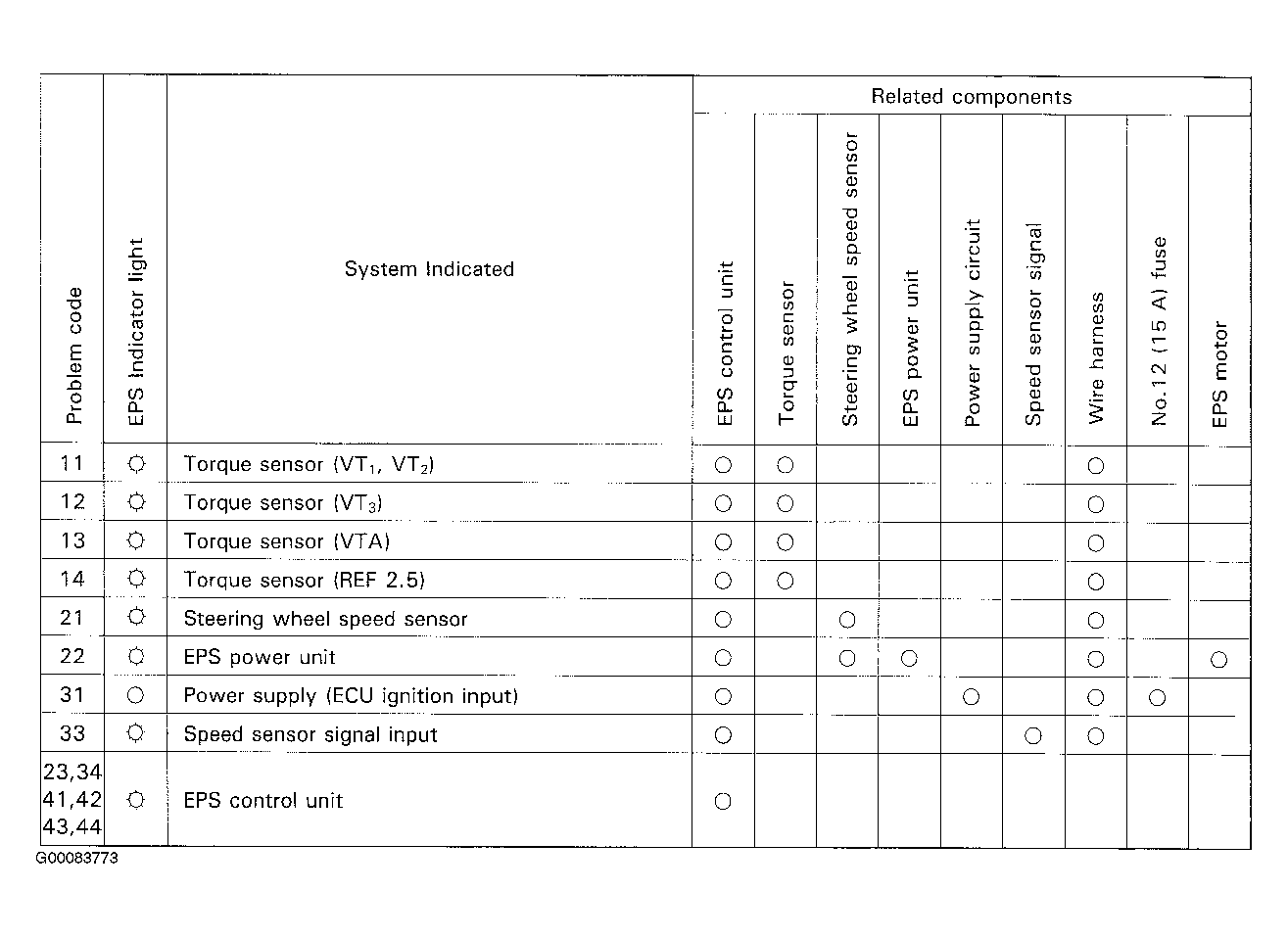

Fig 1: Diagnostic Problem Code Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.
