Control Unit
Control Unit

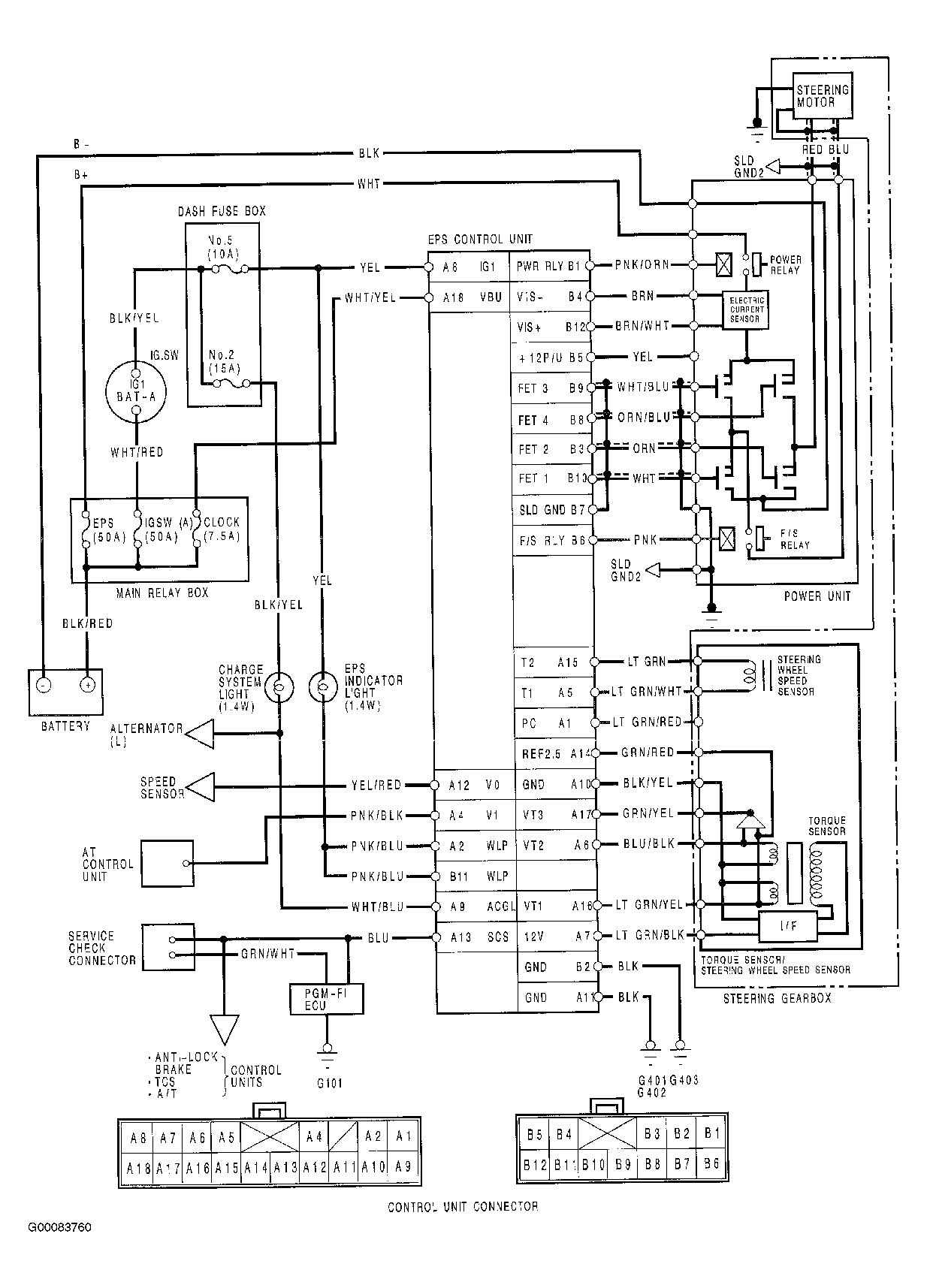

Fig 1: Control Unit Circuit
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
