Engine Oil Pressure Indicator Flasher System
Engine Oil Pressure Indicator Flasher System
See
Figure
for connector terminal identification.

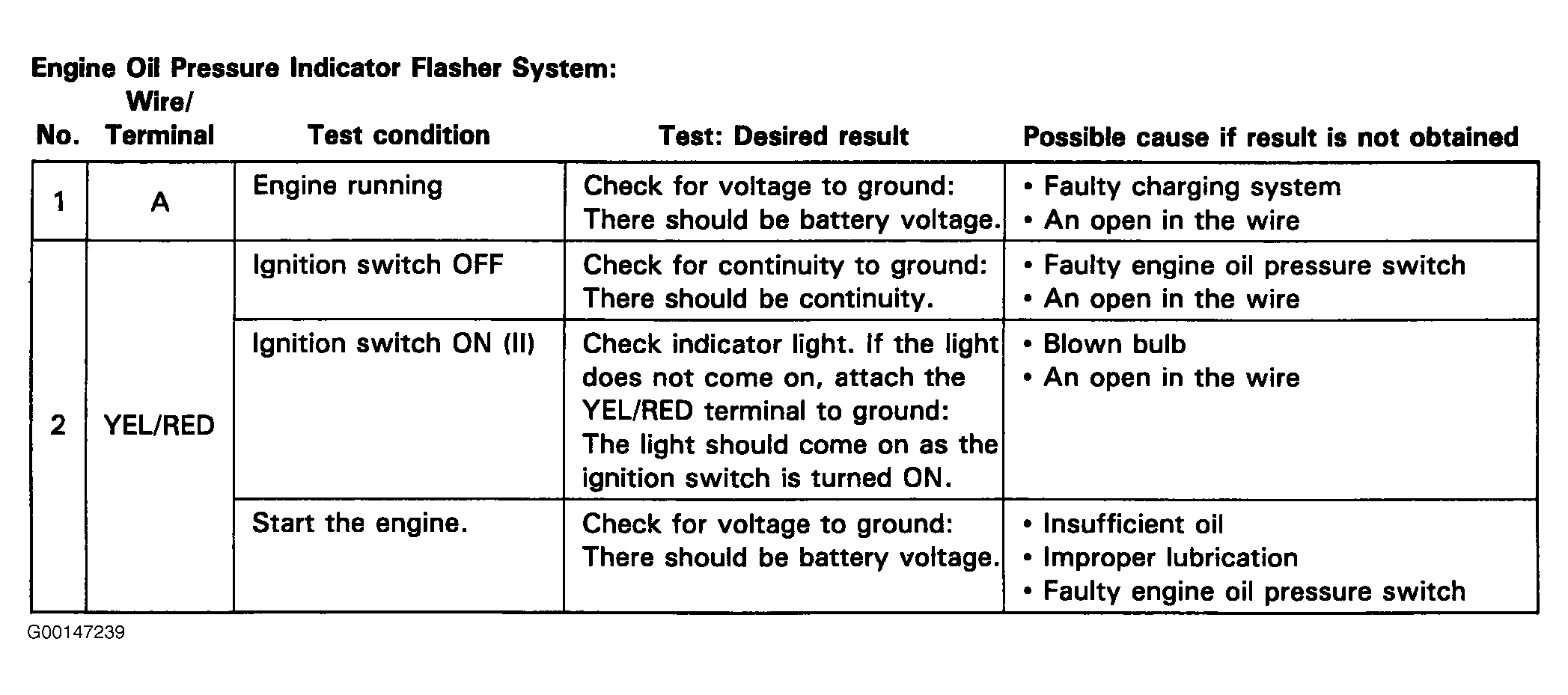

Fig 1: Engine Oil Pressure Indicator Flasher System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
