Power & Ground Test
See
Figure
for connector terminal identification.

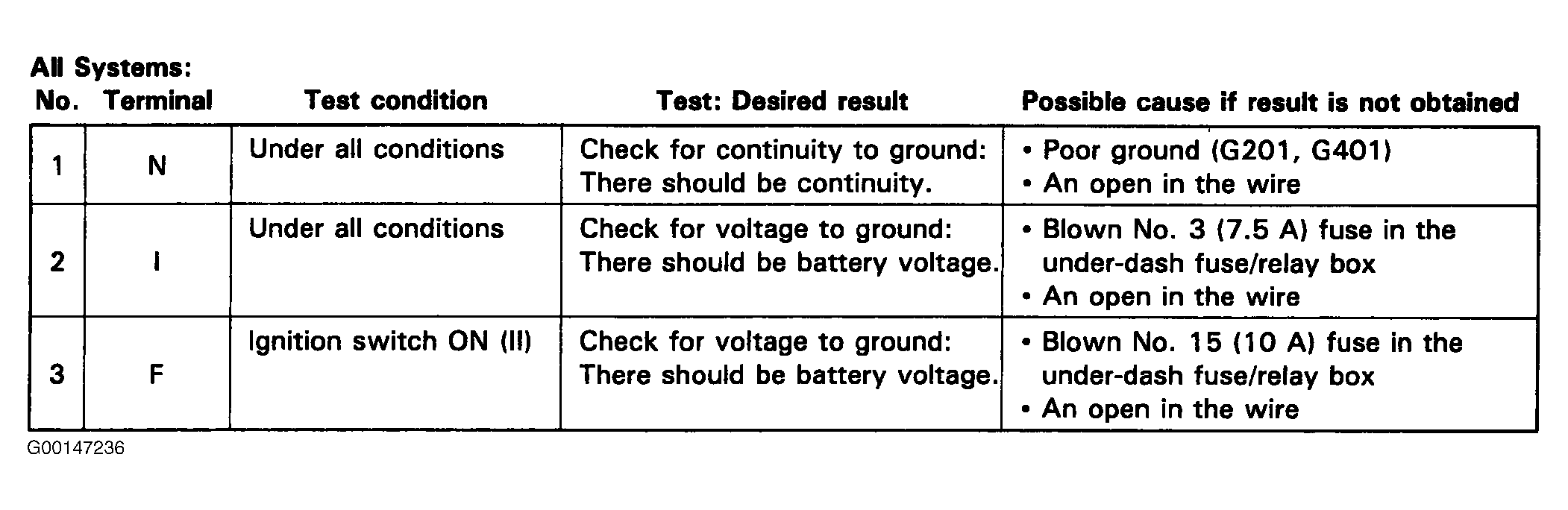

Fig 1: Power & Ground Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
