Integra GS-R, 4D Sedan
›
Repair and Diagnosis
›
Accessories & Equipment
›
Warning Systems
›
Integrated Control Unit
›
Wiring Diagrams
Wiring Diagrams

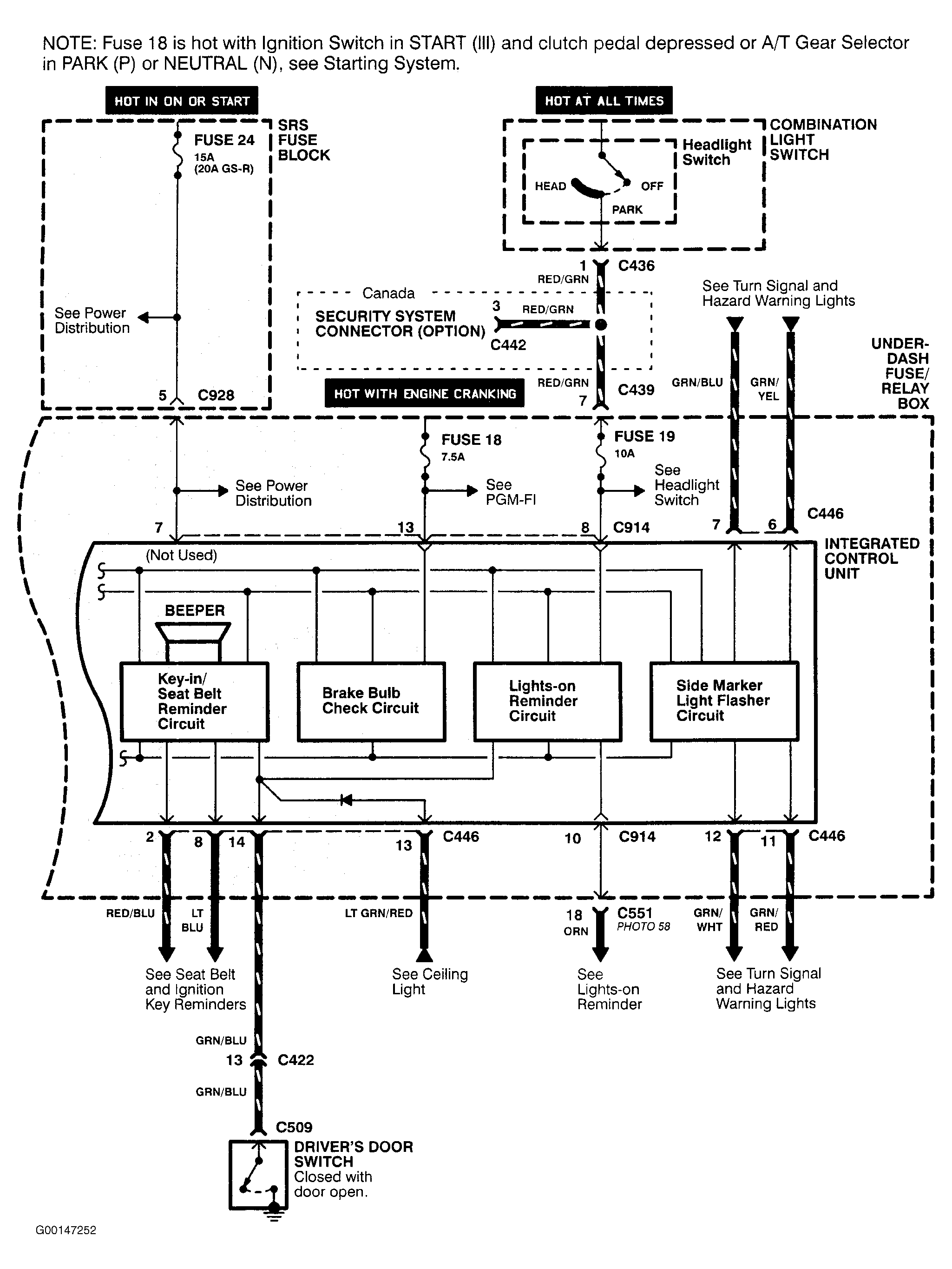

Fig 1: Integrated Control Circuit Wiring Diagram (1994 - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

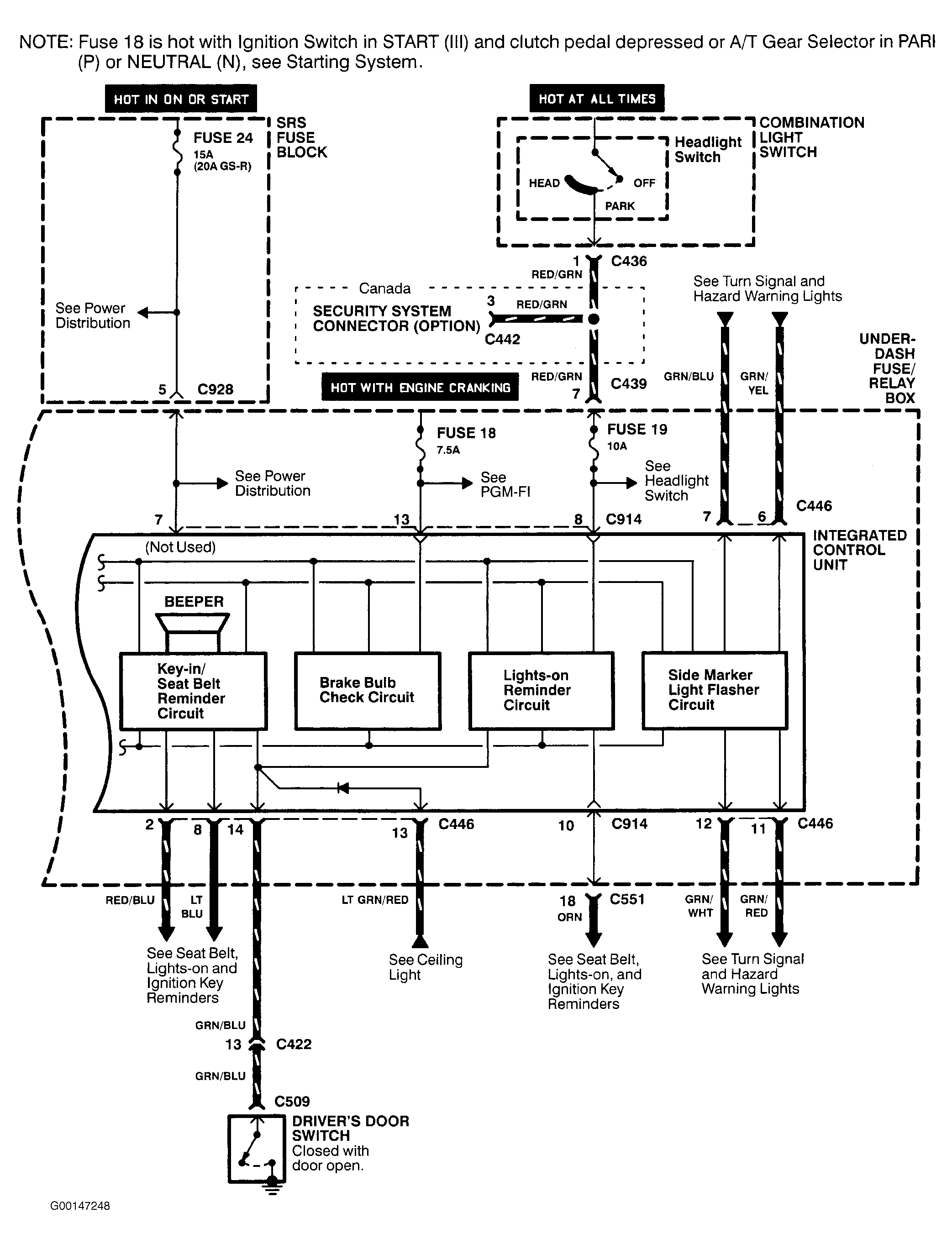

Fig 2: Integrated Control Circuit Wiring Diagram (1994 - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

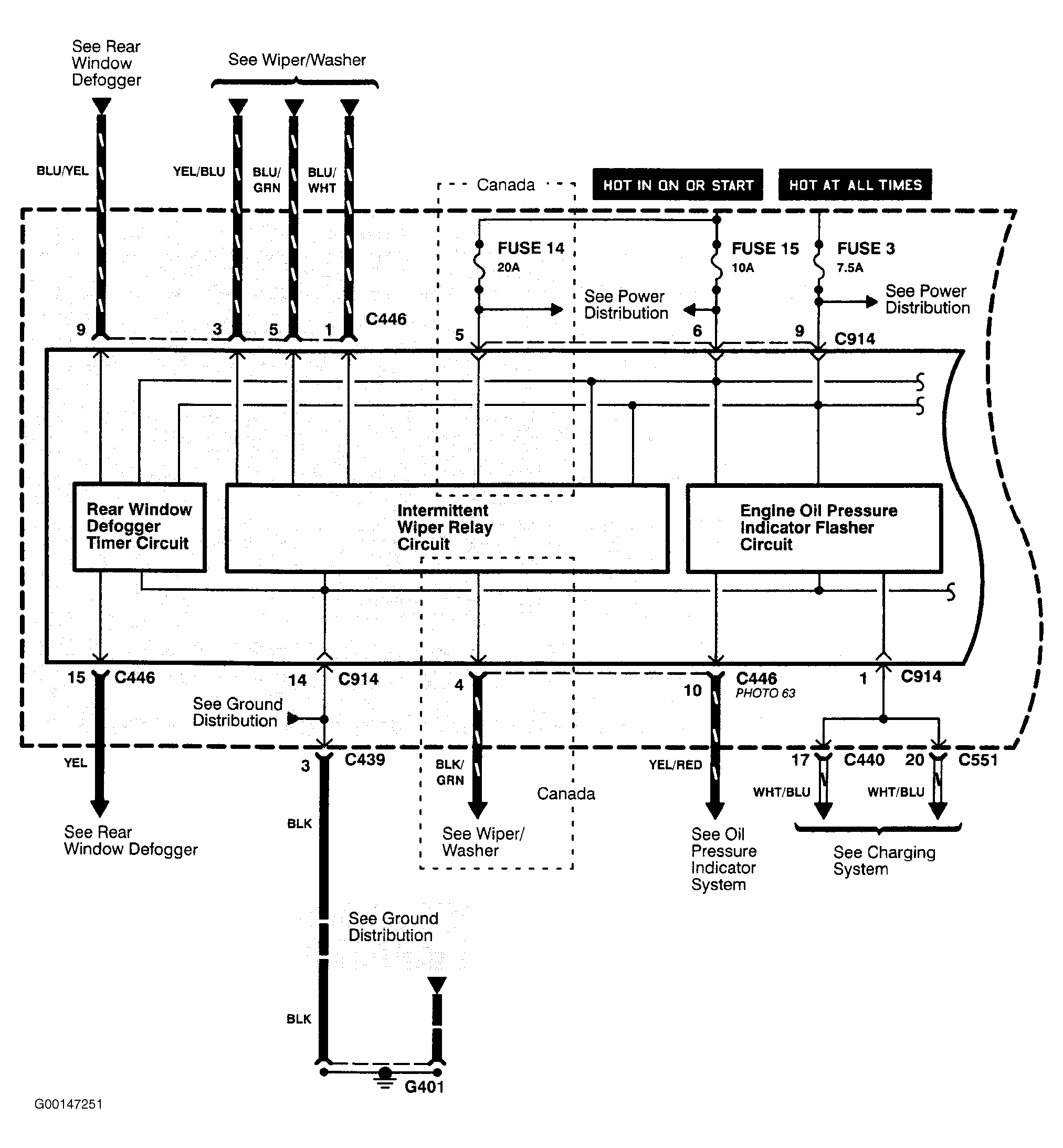

Fig 3: Integrated Control Circuit Wiring Diagram (1995-97 - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

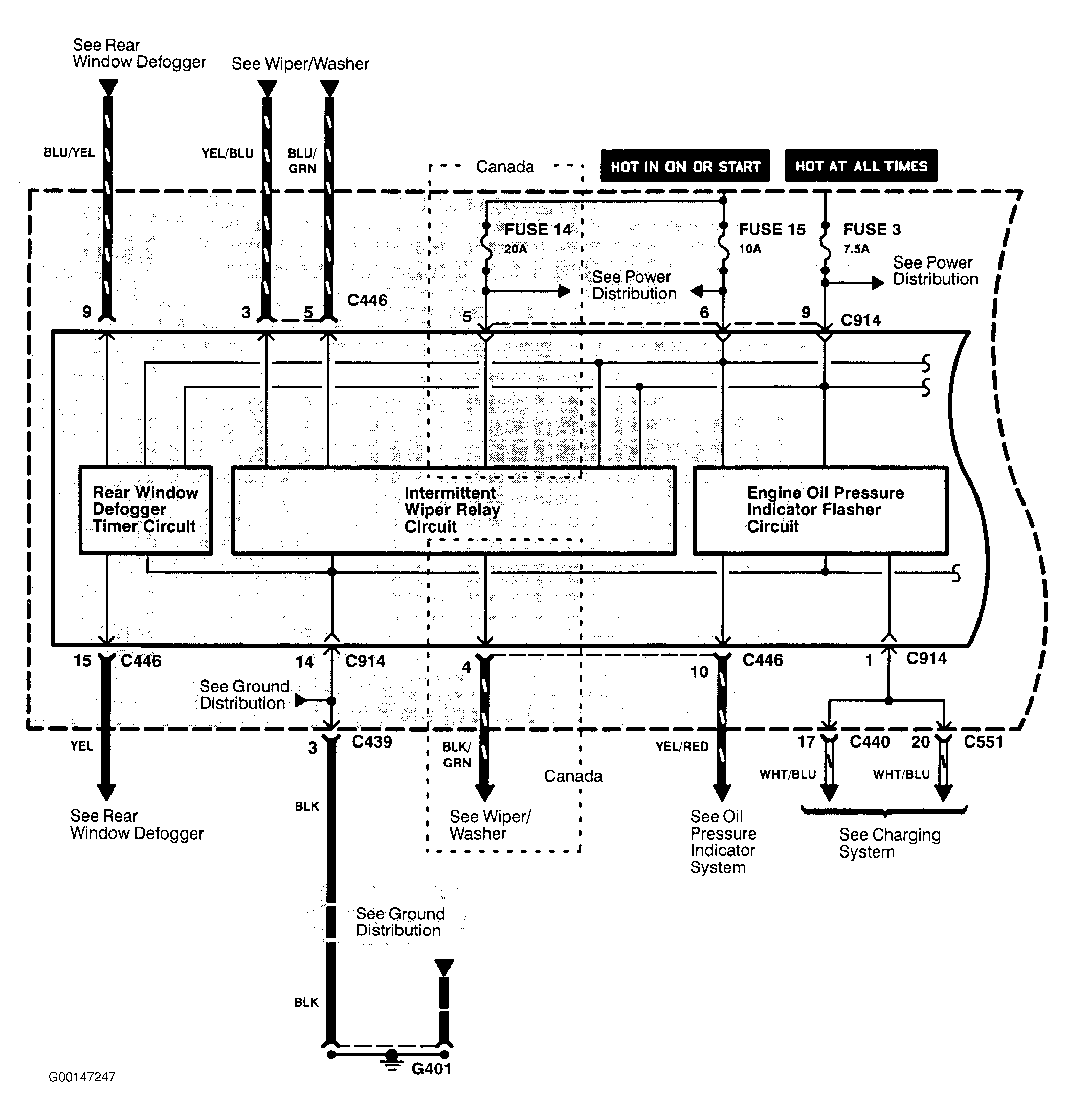

Fig 4: Integrated Control Circuit Wiring Diagram (1995-97 - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
