Rear Wiper Motor Test

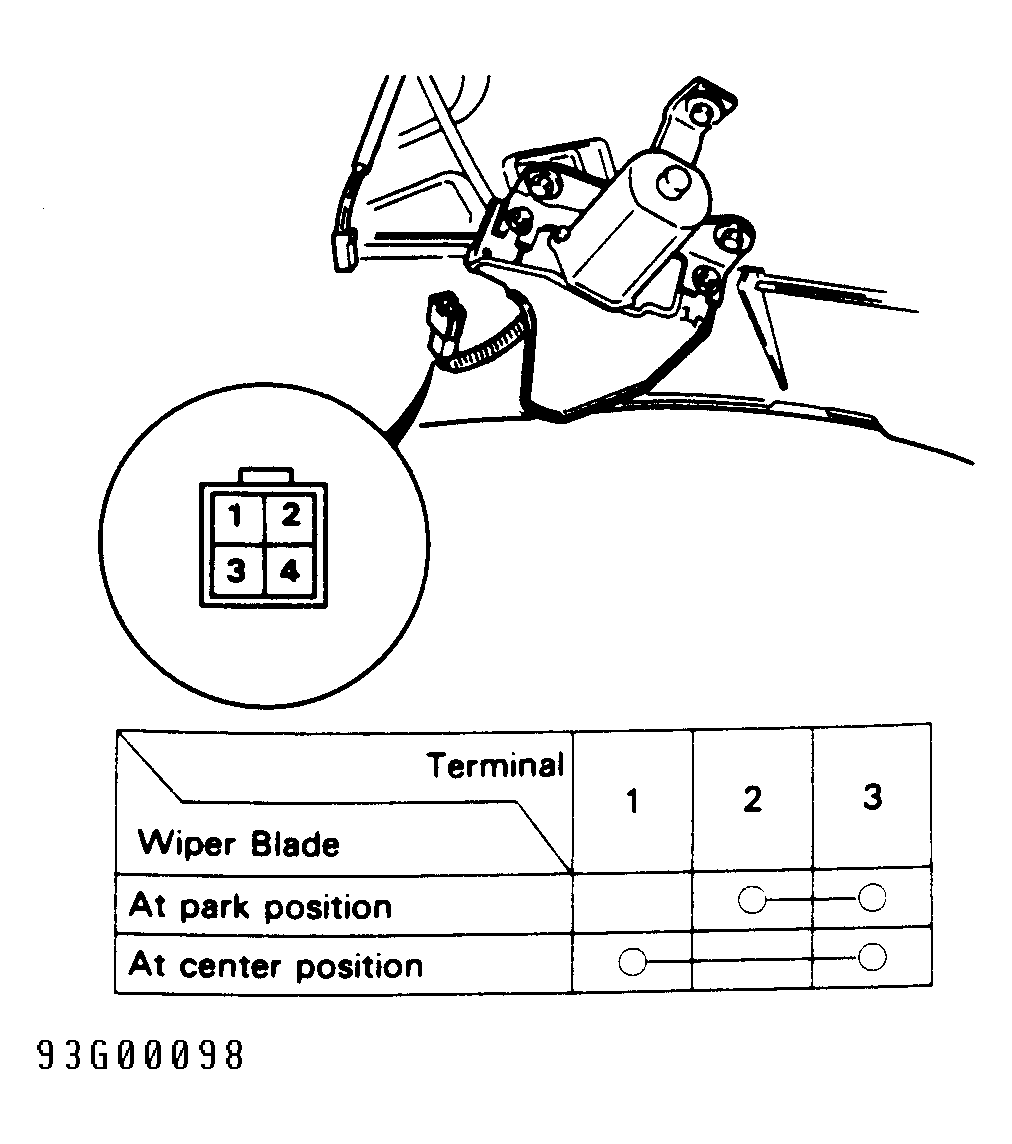

- Remove hatch trim panel. Unplug 4-pin connector. Connect battery voltage to terminal No. 2 (Green/Black wire). Connect terminal No. 4 (Green wire) to ground. See Fig 1 . If motor fails to run, replace motor.
- Check for continuity between specified terminals. Replace motor if continuity is not as specified.
