| Countershaft Lock Nut |
76 (103) |
| Drain Plug |
36 (49) |
| Joint Bolt |
21 (29) |
| Mainshaft Lock Nut |
69 (94) |
| Mount Bracket Bolt |
47 (64) |
| Pressure Tap Plug |
13 (18) |
| Ring Gear Bolt |
74 (100) |
| Sub-Shaft Lock Nut |
69 (94) |

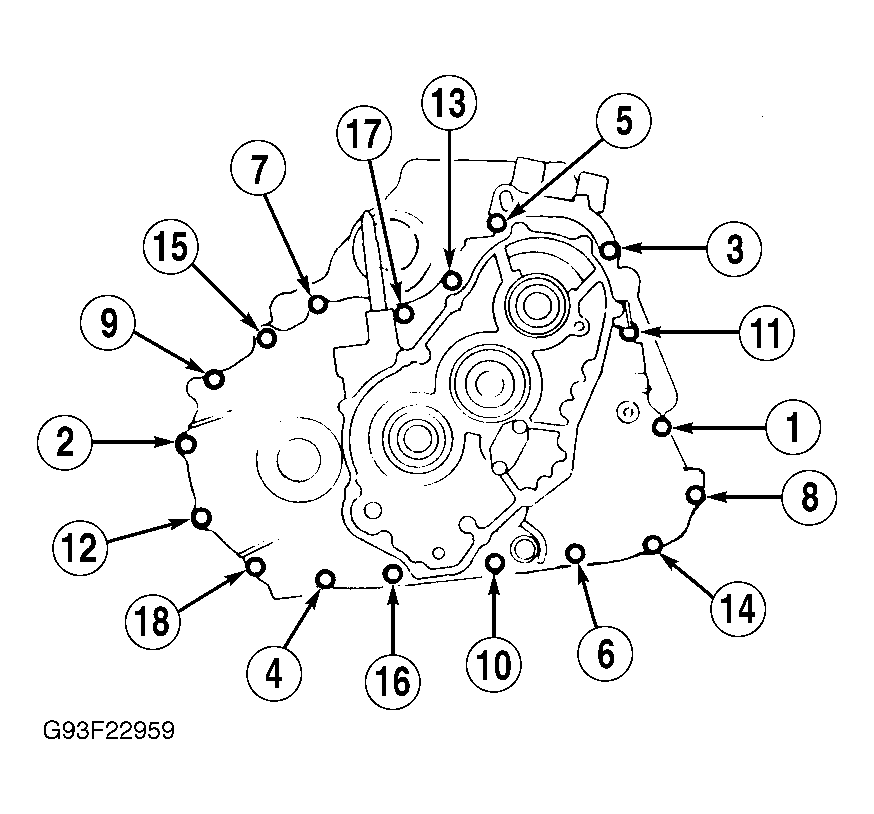

| Transaxle Housing Bolt |
33 (45) |
| Vehicle Speed Sensor Bolt |
16 (22) |
| INCH Lbs. (N.m) |
| Accumulator Cover Bolt |
106 (12.0) |
| Countershaft Speed Sensor Bolt |
106 (12.0) |
| Lock-Up Control Solenoid |
| Valve Assembly Bolt |
106 (12.0) |
| Lock-Up Valve Body Bolt |
106 (12.0) |
| Mainshaft Speed Sensor Bolt |
106 (12.0) |
| Main Valve Body Bolt |
106 (12.0) |
| Needle Bearing Stopper Bolt |
106 (12.0) |
| Parking Brake Stopper Bolt |
124 (14.0) |
| Regulator Valve Body Bolt |
106 (12.0) |
| Reverse Idler Gear Shaft Holder Bolt |
106 (12.0) |
| Reverse Shift Fork Bolt |
124 (14.0) |
| Right Side Cover Bolt |
106 (12.0) |
| Secondary Valve Body Bolt |
106 (12.0) |
| Servo Body Bolt |
106 (12.0) |
| Servo Detent Base Bolt |
106 (12.0) |
| Shift Control Solenoid Valve Assembly Bolt |
106 (12.0) |
| Stopper Bolt |
106 (12.0) |
| Throttle Cam Stopper Bolt |
106 (12.0) |
| Throttle Control Lever Bolt |
69 (7.8) |
