Key-In Reminder System
Key-In Reminder System

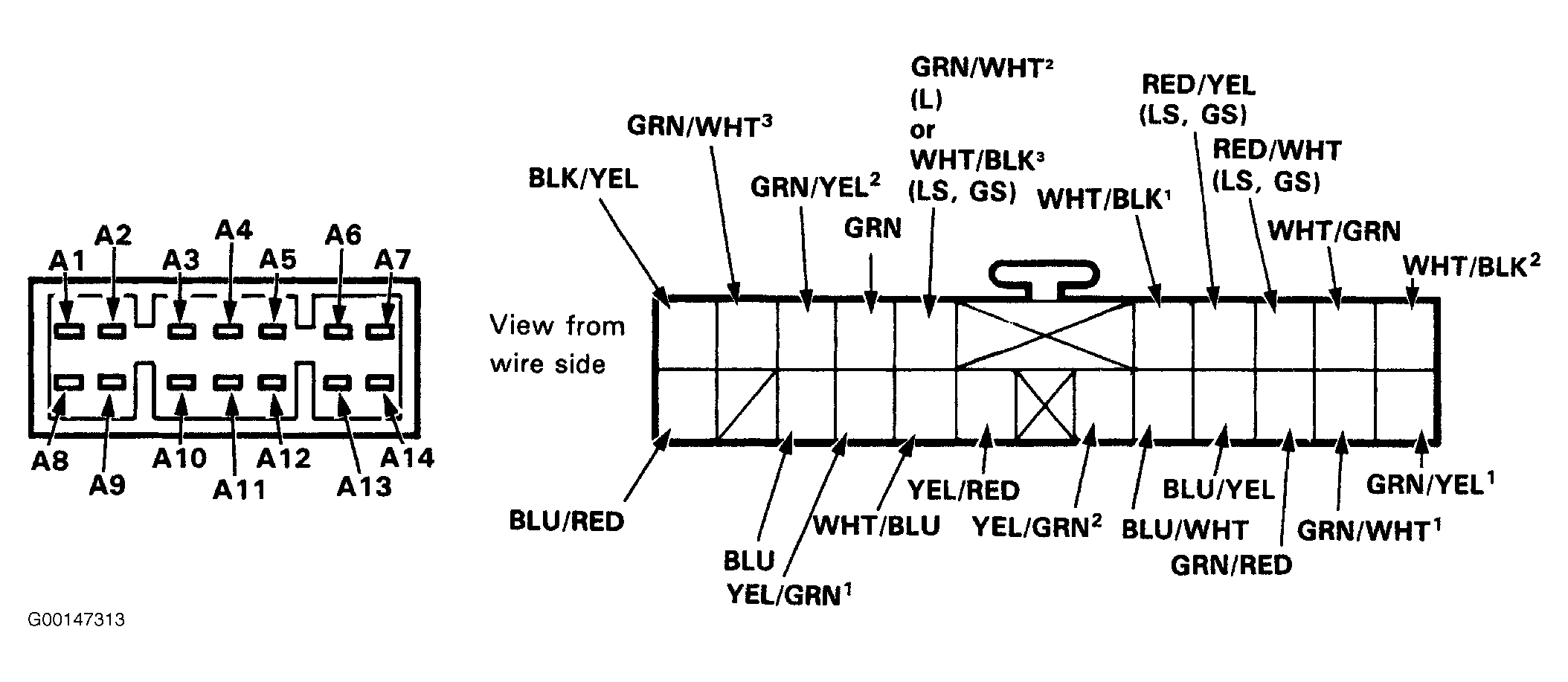

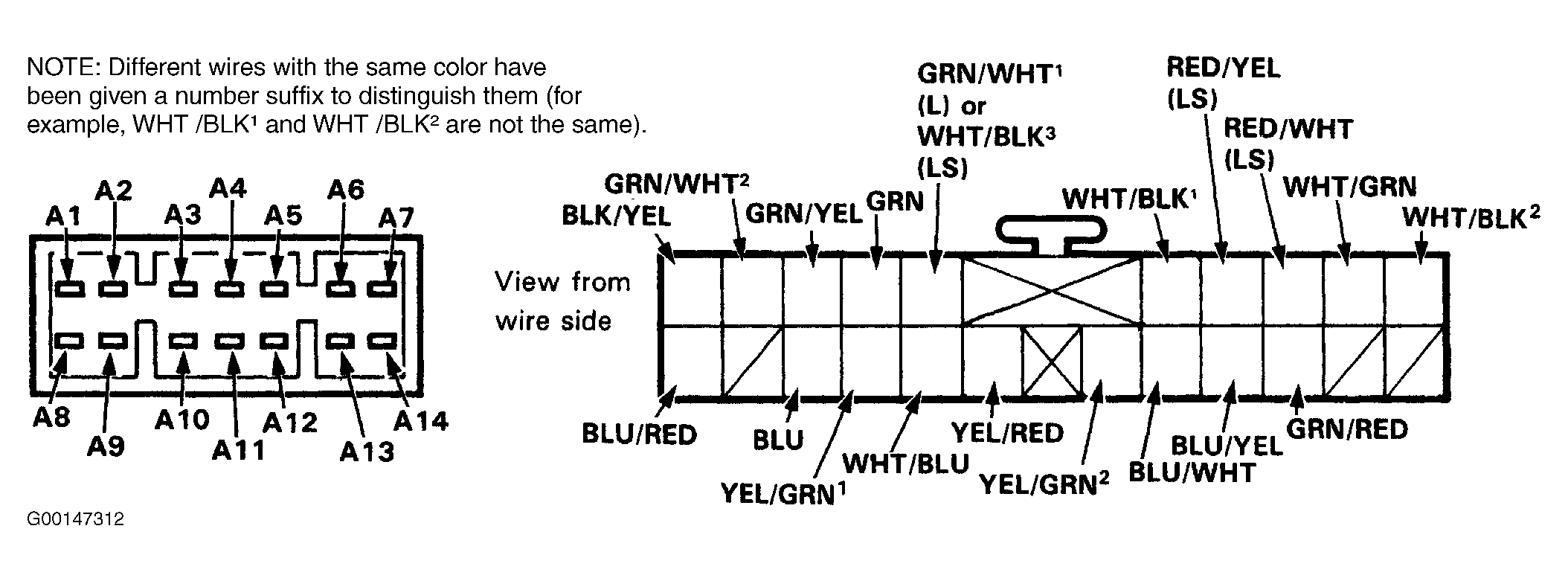

See
Figure
and
Figure
for connector terminal identification. For input test, see

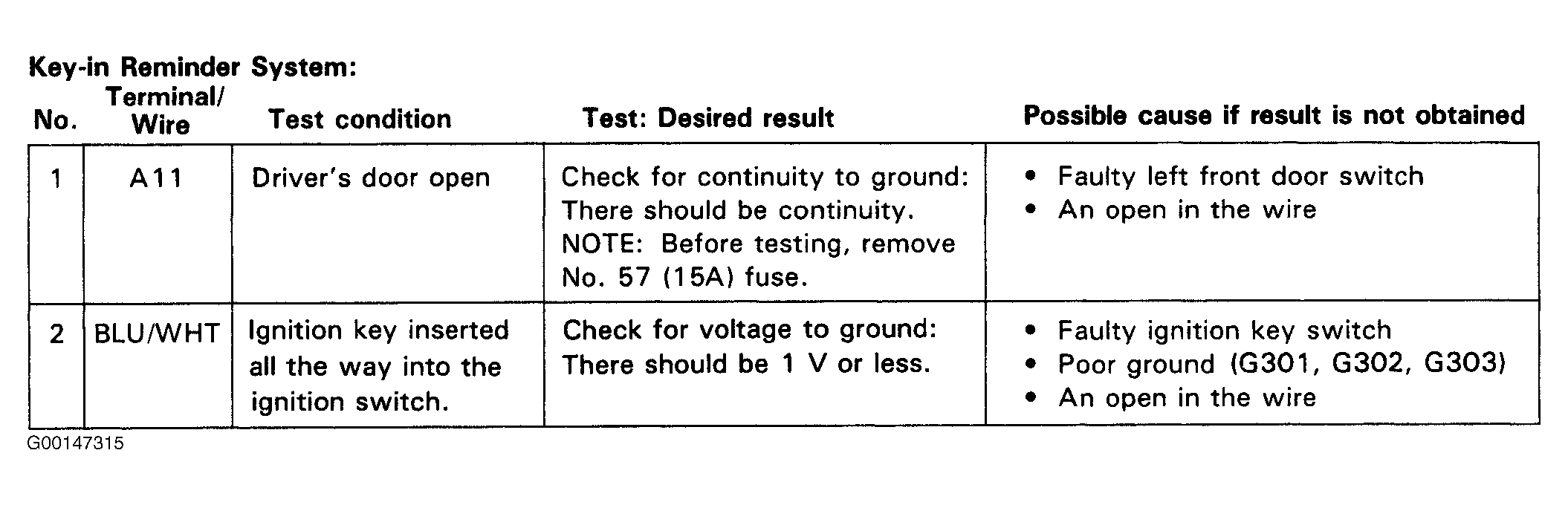

Fig 1
.
Fig 1: Key-In Reminder System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
