Rear Window Defogger Timer System

See Figure and Figure for connector terminal identification. For input test, see Fig 1 .

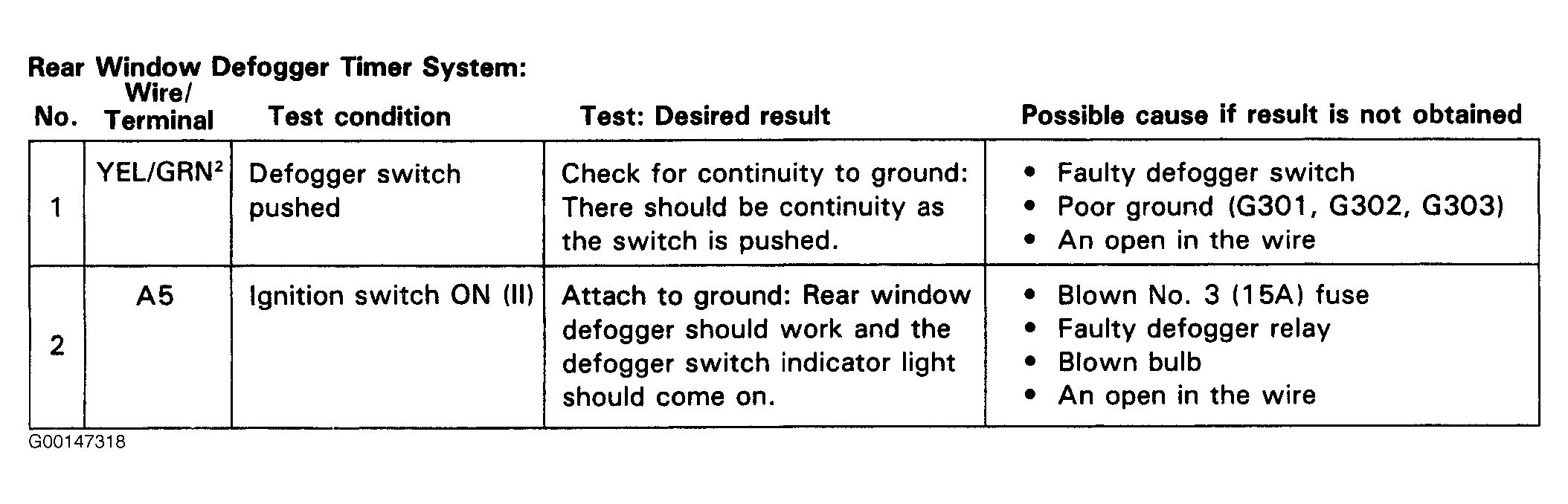

Fig 1: Rear Window Defogger Timer System Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
