DTC 12: Exhaust Gas RECIRCULATION System

If the Malfunction Indicator Lamp (MIL) indicates Diagnostic Trouble Code (DTC) 12, a problem may exist in the Exhaust Gas Recirculation (EGR) system. See Fig 1 -Fig 5 . The EGR system is designed to reduce oxides of nitrogen emissions (NOx) by recirculating exhaust gas through the EGR valve and the intake manifold into the combustion chambers. It is composed of the EGR valve, EGR vacuum control valve, EGR control solenoid valve, ECM and various sensors. The ECM contains memories for ideal EGR valve lifts for varying operating conditions. The EGR valve lift sensor detects the amount of EGR valve lift and sends the information to the ECM. The ECM then compares it with the ideal EGR valve lift which is determined by signals sent from the other sensors. If there is any difference between the two, the ECM varies current to the EGR control solenoid valve to regulate vacuum applied to the EGR valve.

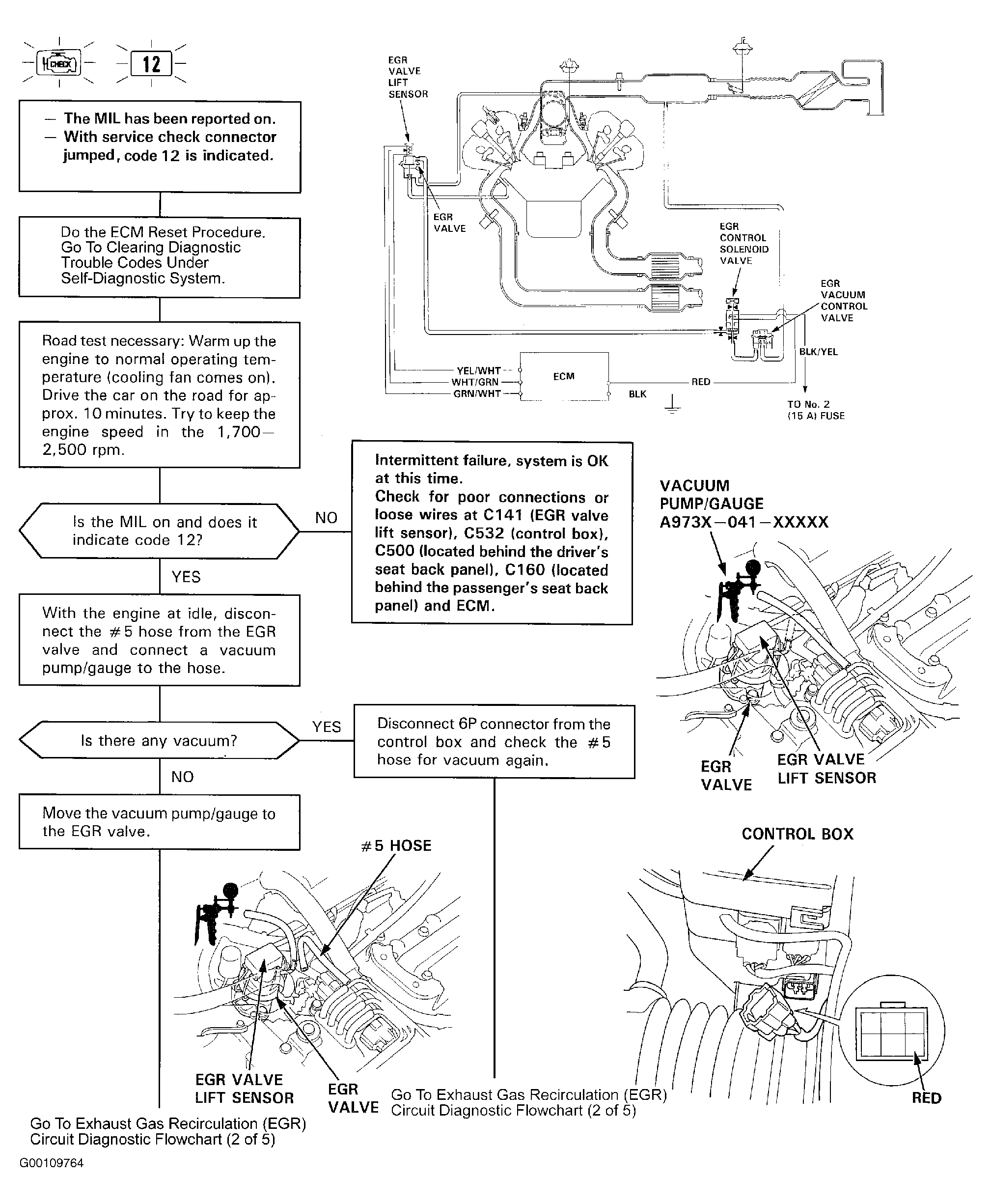

Fig 1: Exhaust Gas Recirculation (EGR) Circuit Diagnostic Flowchart (1 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

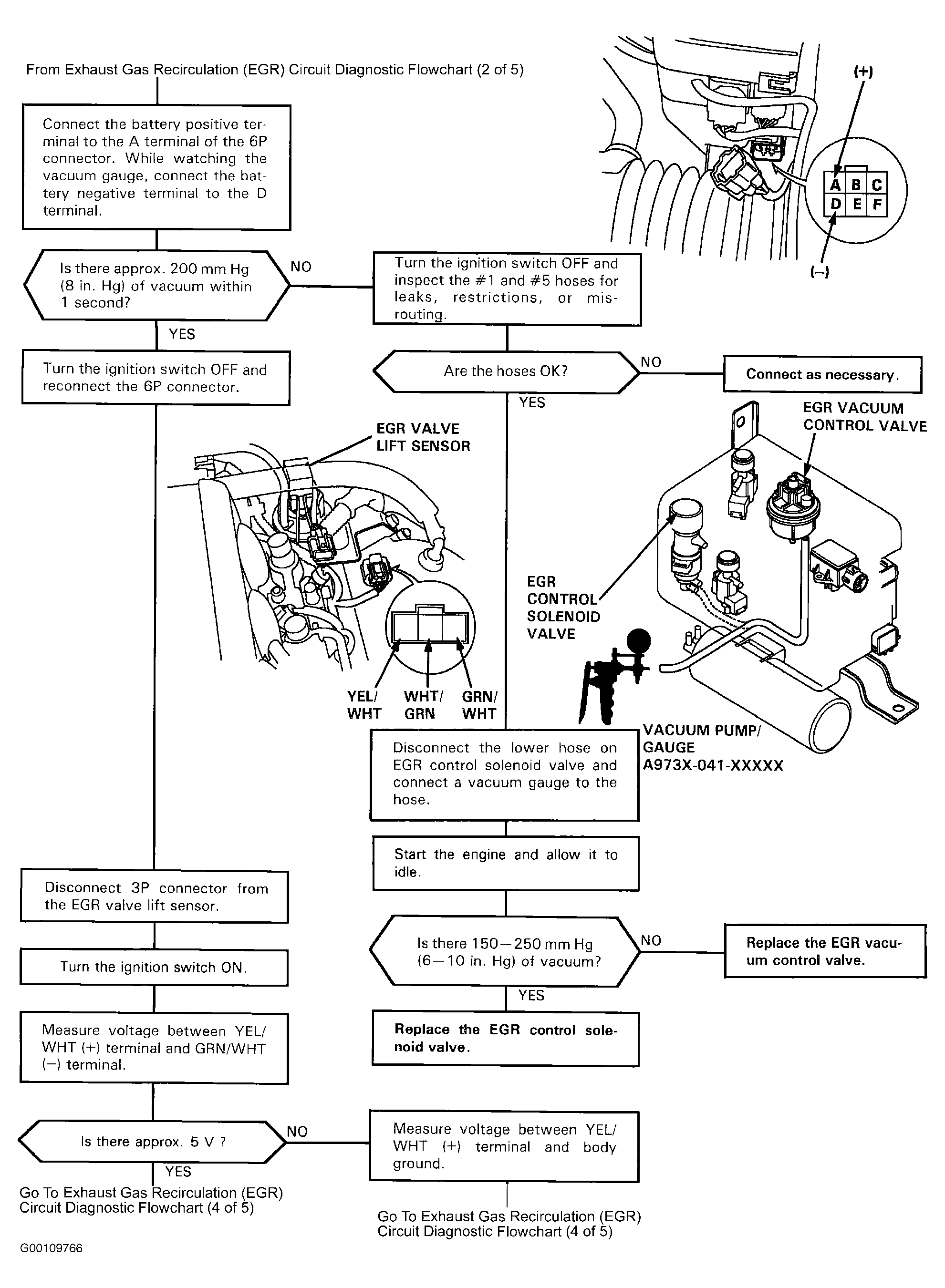

Fig 2: Exhaust Gas Recirculation (EGR) Circuit Diagnostic Flowchart (2 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

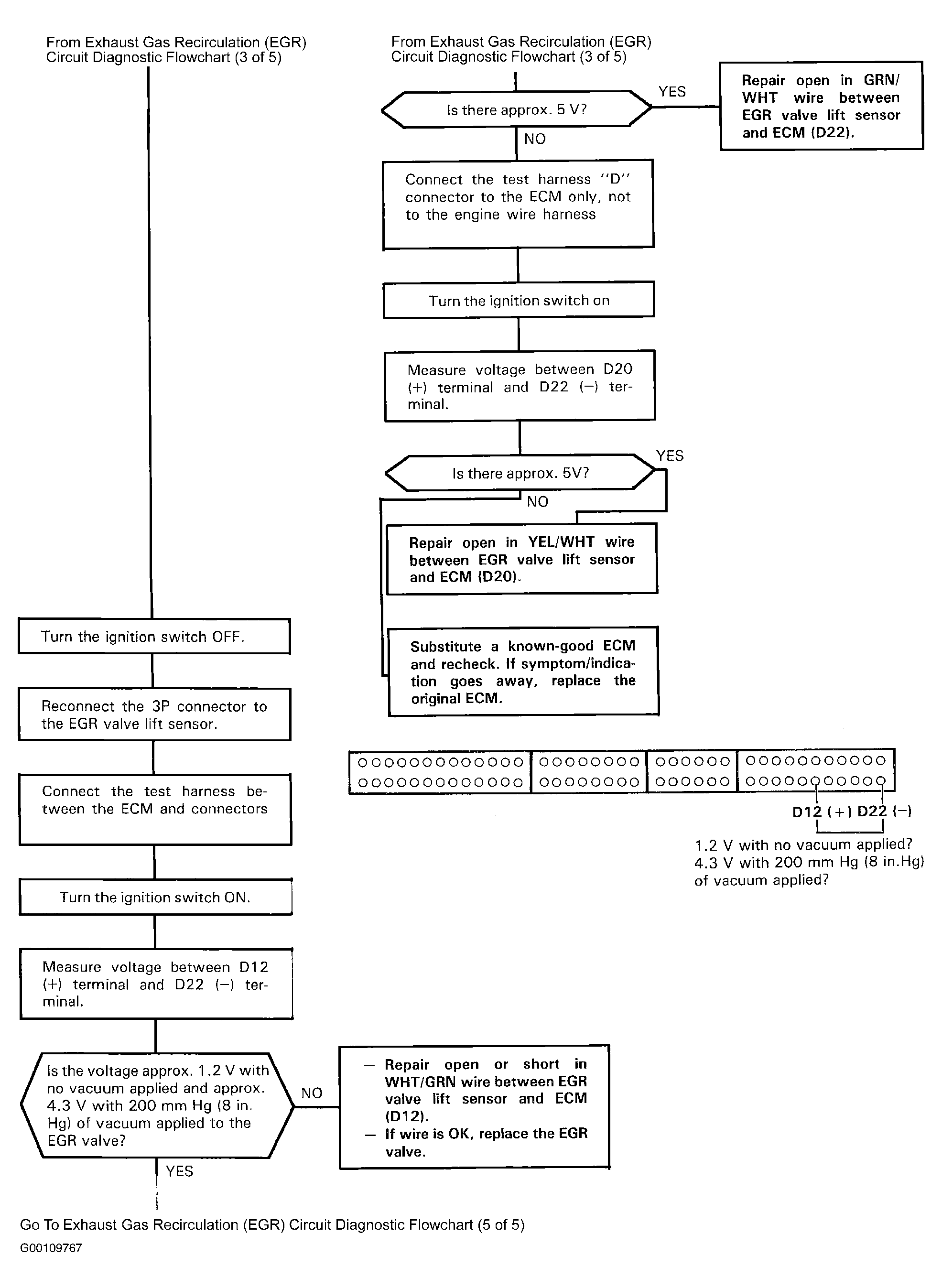

Fig 3: Exhaust Gas Recirculation (EGR) Circuit Diagnostic Flowchart (3 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

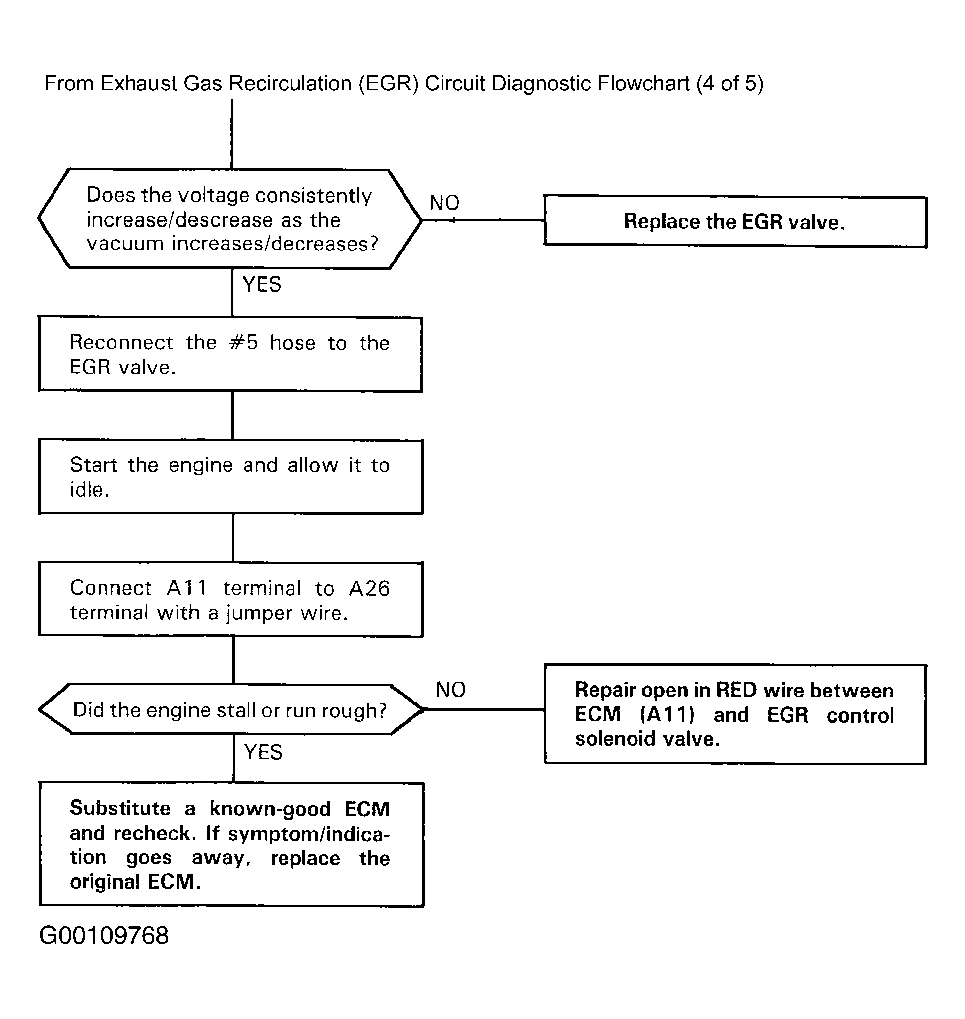

Fig 4: Exhaust Gas Recirculation (EGR) Circuit Diagnostic Flowchart (4 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Exhaust Gas Recirculation (EGR) Circuit Diagnostic Flowchart (5 Of 5)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
