Removal & Installation

  1. Disconnect the 8-P and 6-P connectors from the Ignition Control Module (ICM). See Figure and Fig 1 .
  2. Remove the 2 mounting bolts from the ICM.
  3. Slide the ICM out the front side.
  4. To install, reverse removal procedure. Tighten mounting bolts to specification. See TORQUE SPECIFICATIONS  .

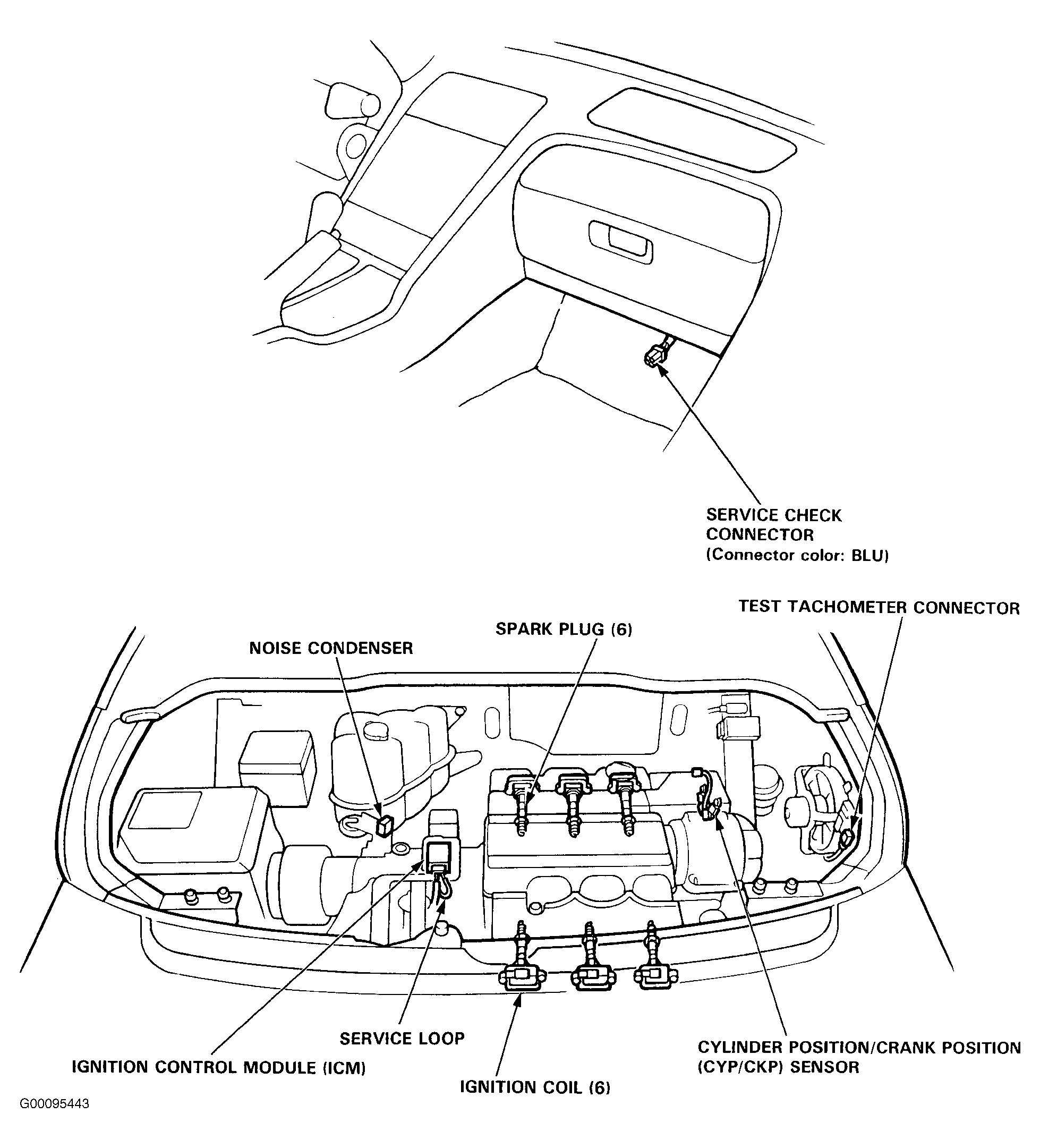

Fig 1: Removing Ignition Control Module
G00087631Courtesy of AMERICAN HONDA MOTOR CO., INC.
