Component Locations

NOTE: For component locations, refer to illustrations. See Fig 1 and Fig 2 .

COMPONENT LOCATIONS

Component	Location
Dash Fuse Box	Under Driver Side Of Dash, At Kick Panel
Driver Headlight Retractor Brake/Drive Relay	Passenger Side Of Front Compartment
Driver Headlight Retractor Control Relay	In Sub-Relay Box "A"
Relay Box	Passenger Side Of Front Compartment
Retractable Headlights Control Unit	On Center Of Rear Bulkhead, In Passenger Compartment
Passenger Headlight Retractor Brake/Drive Relay	Passenger Side Of Front Compartment
Passenger Headlight Retractor Control Relay	In Sub-Relay Box "A"
Sub-Relay Box "A"	Rear Of Front Compartment
Sub-Relay Box "B"	Passenger Side Of Front Compartment
G201	Passenger Front Corner Of Front Compartment
G202	Passenger Front Corner Of Front Compartment
G401	Behind Driver Kick Panel
G403	On Center Of Rear Bulkhead

Fig 1: Locating Headlight Retractor Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.

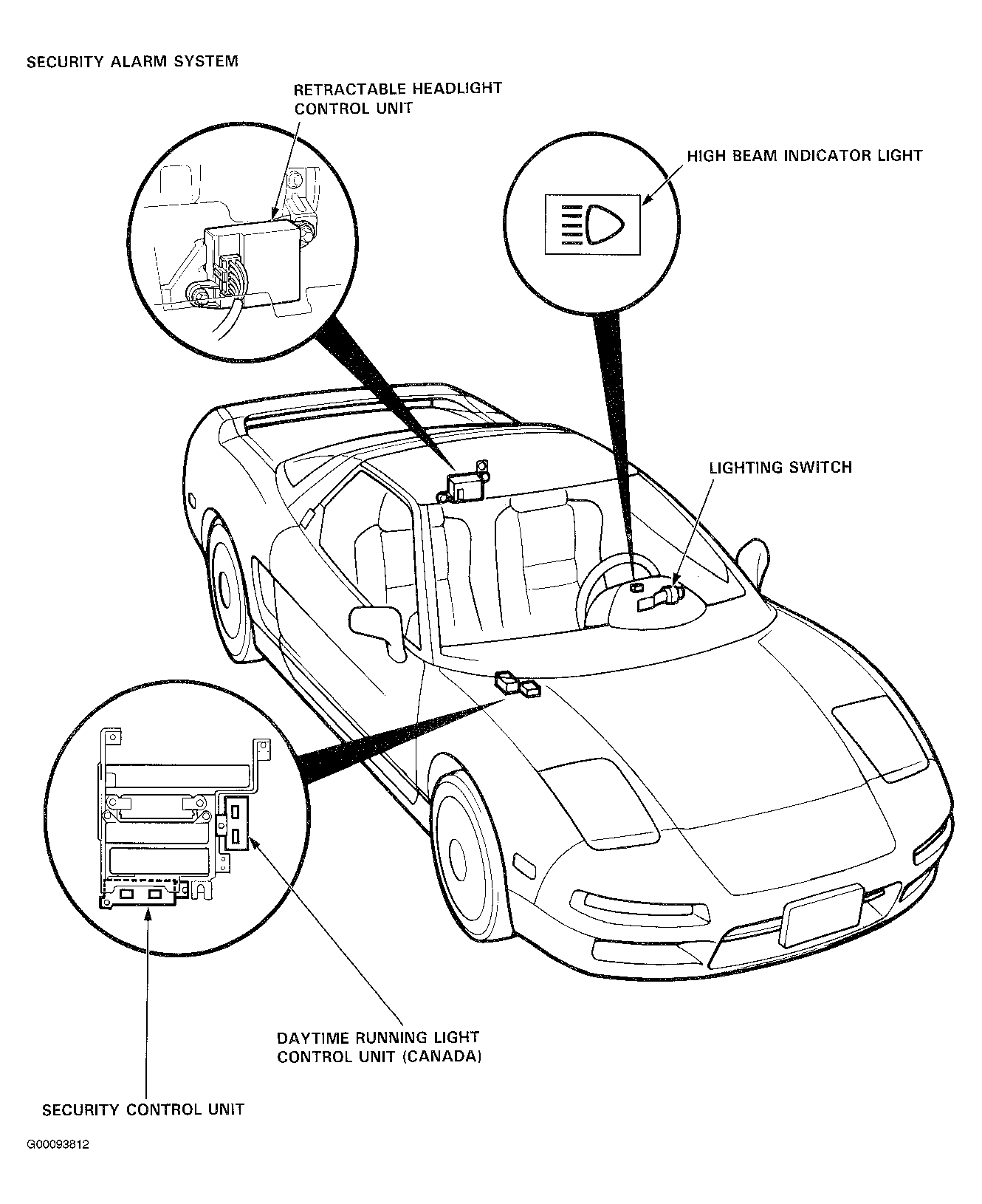

Fig 2: Locating Lighting System Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
