EVAP Controls Diagnosis

For the troubleshooting flowcharts for the (EVAP) see Fig 1 -Fig 3 .

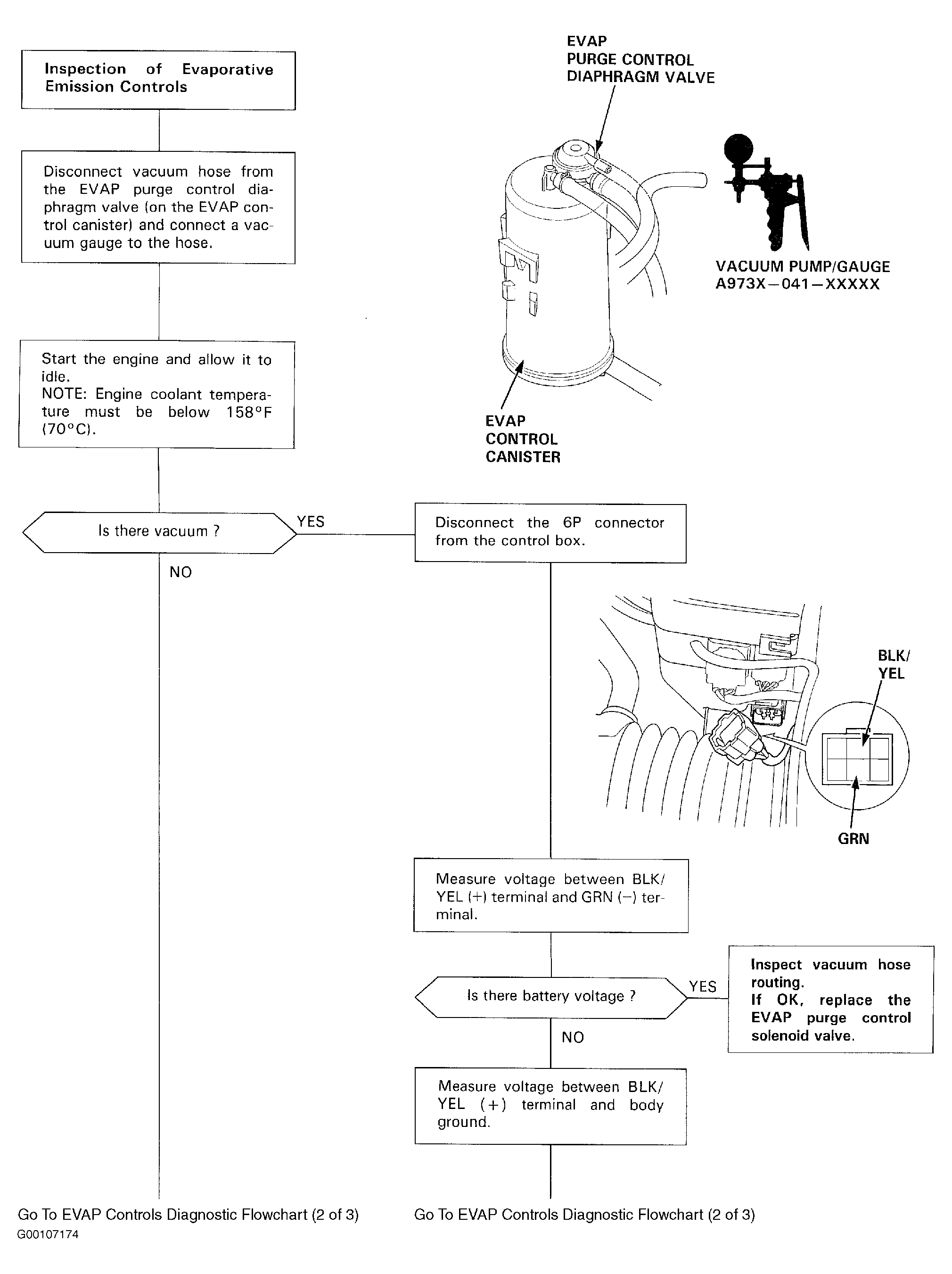

Fig 1: EVAP Controls Diagnostic Flowchart (1 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

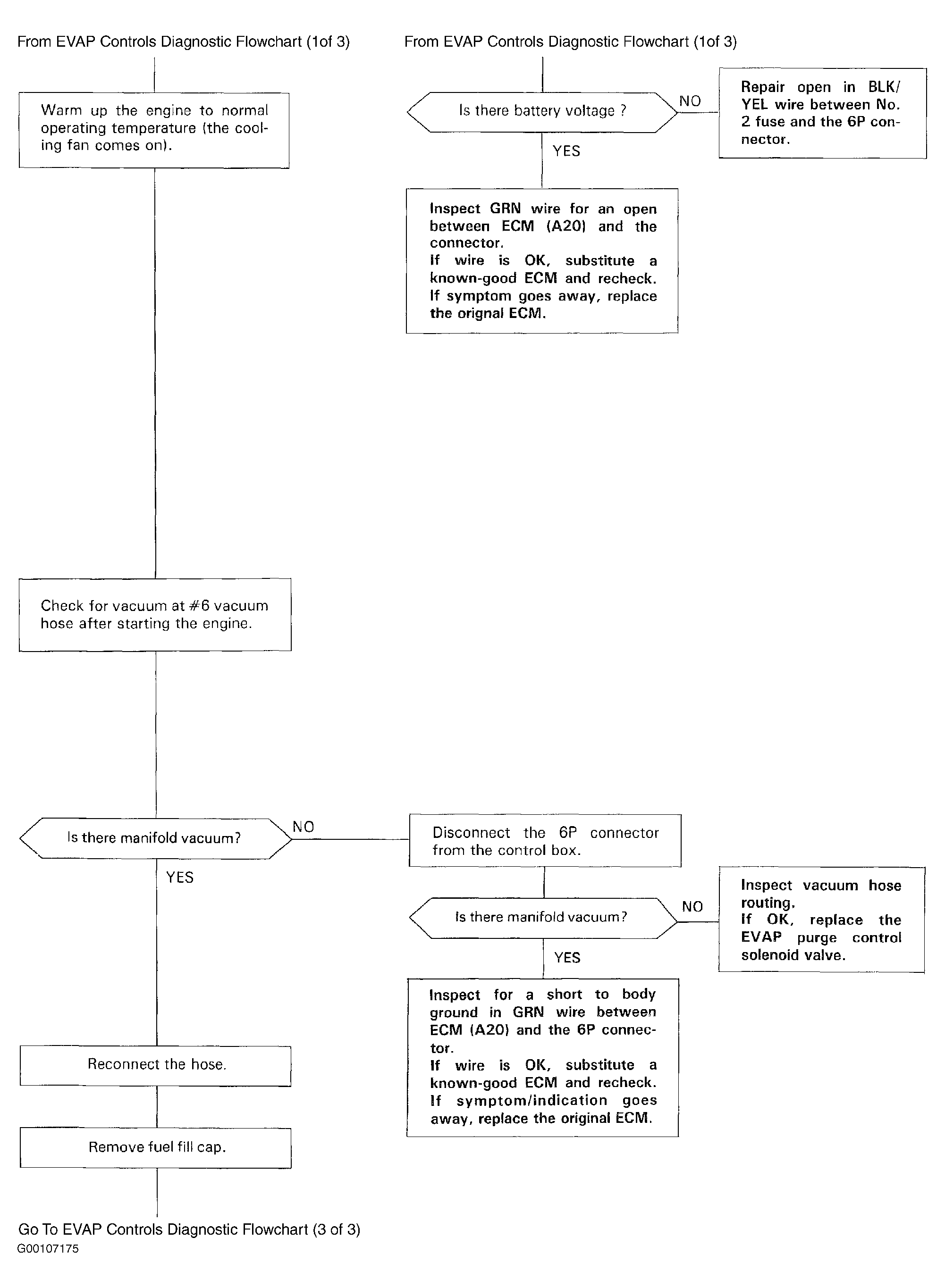

Fig 2: EVAP Controls Diagnostic Flowchart (2 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

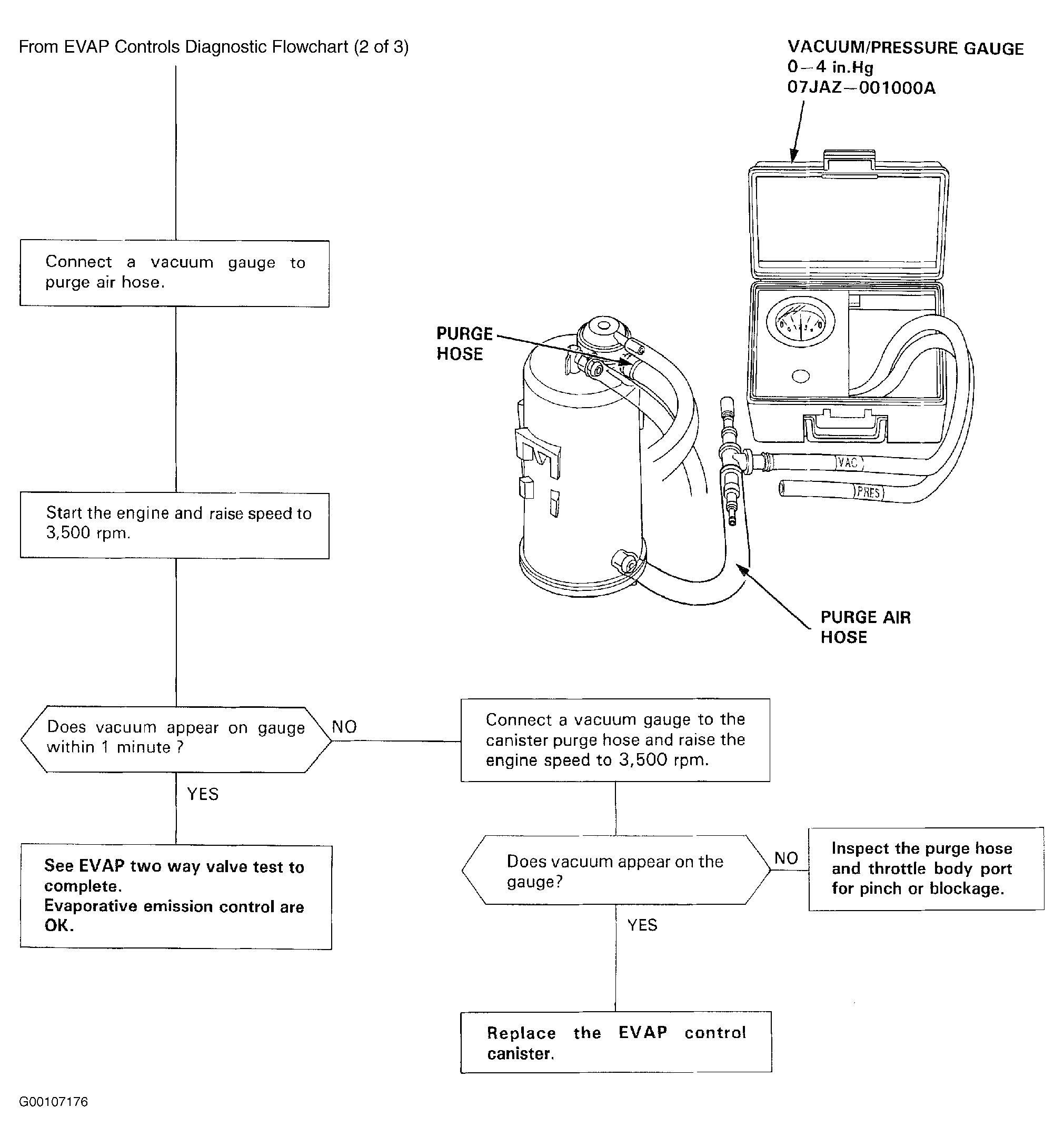

Fig 3: EVAP Controls Diagnostic Flowchart (3 Of 3)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
