Power Window Key Off Timer System

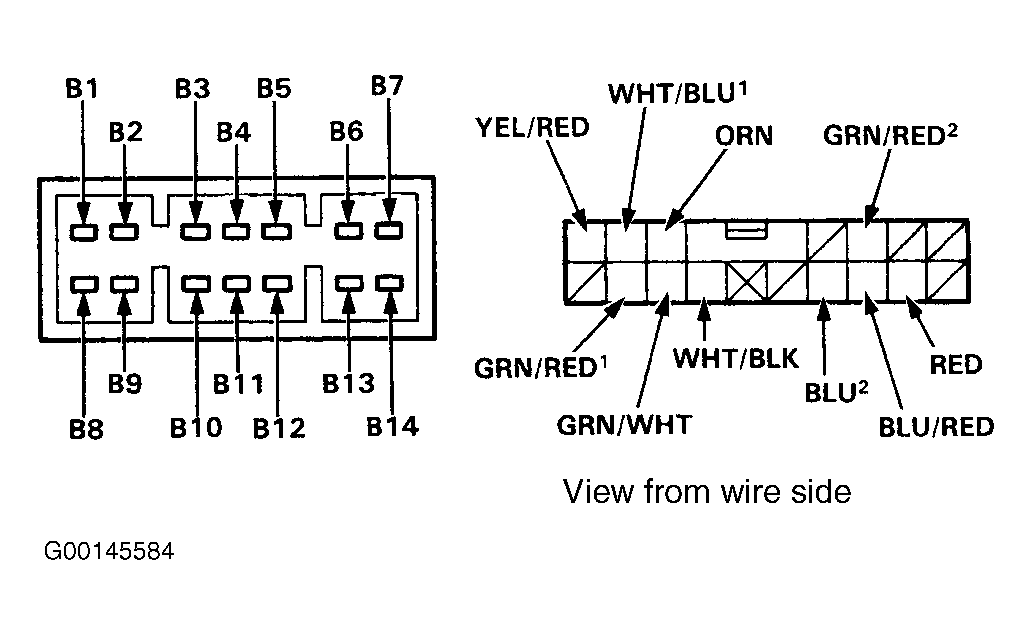

See
Figure
for connector identification.

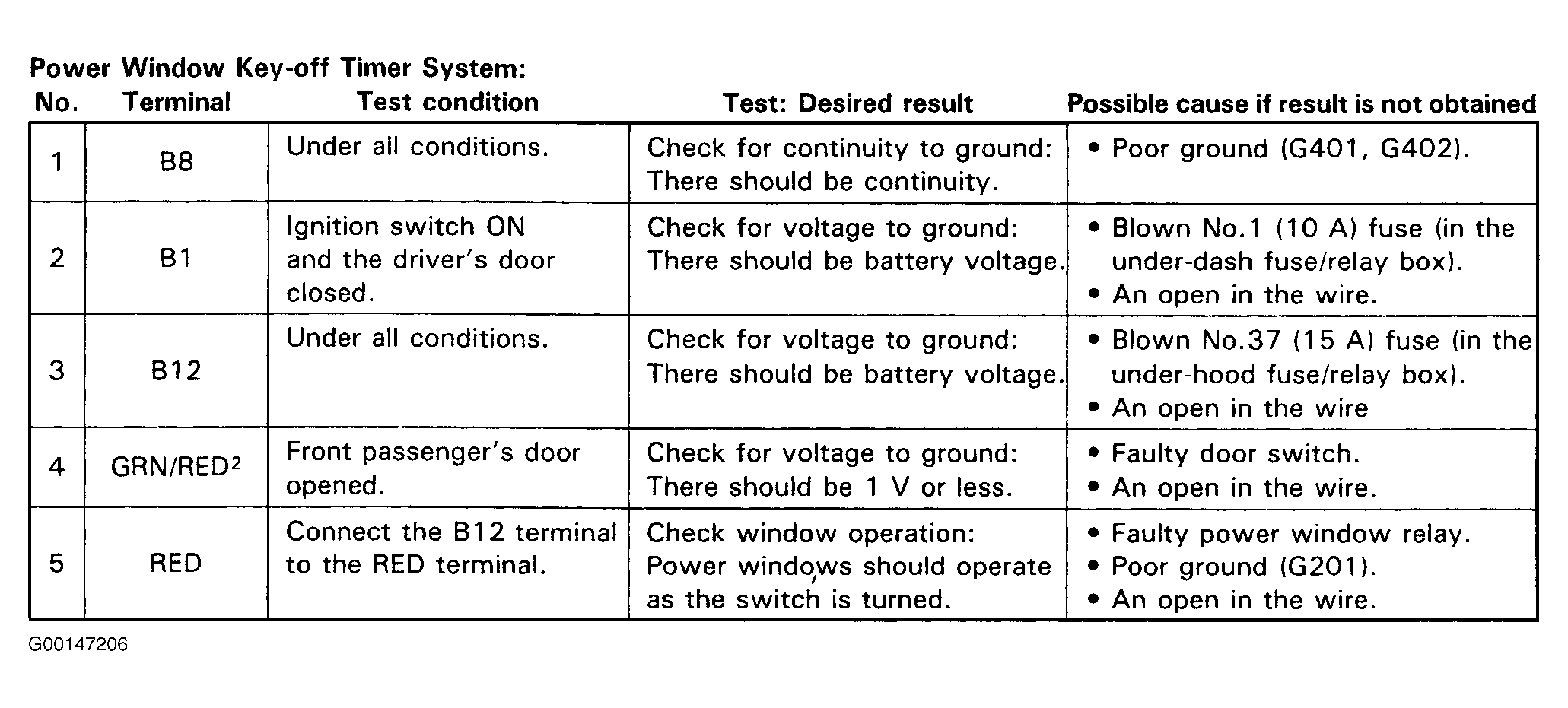

Fig 1: Power Window Key Off Timer System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
