Integrated Control Unit

Remove integrated control unit from underdash fuse and relay panel. Test each circuit of integrated control unit connector for continuity or voltage as indicated. See Fig 1 -Fig 6 . Correct any problems found. If no problems are found, replace integrated control unit.

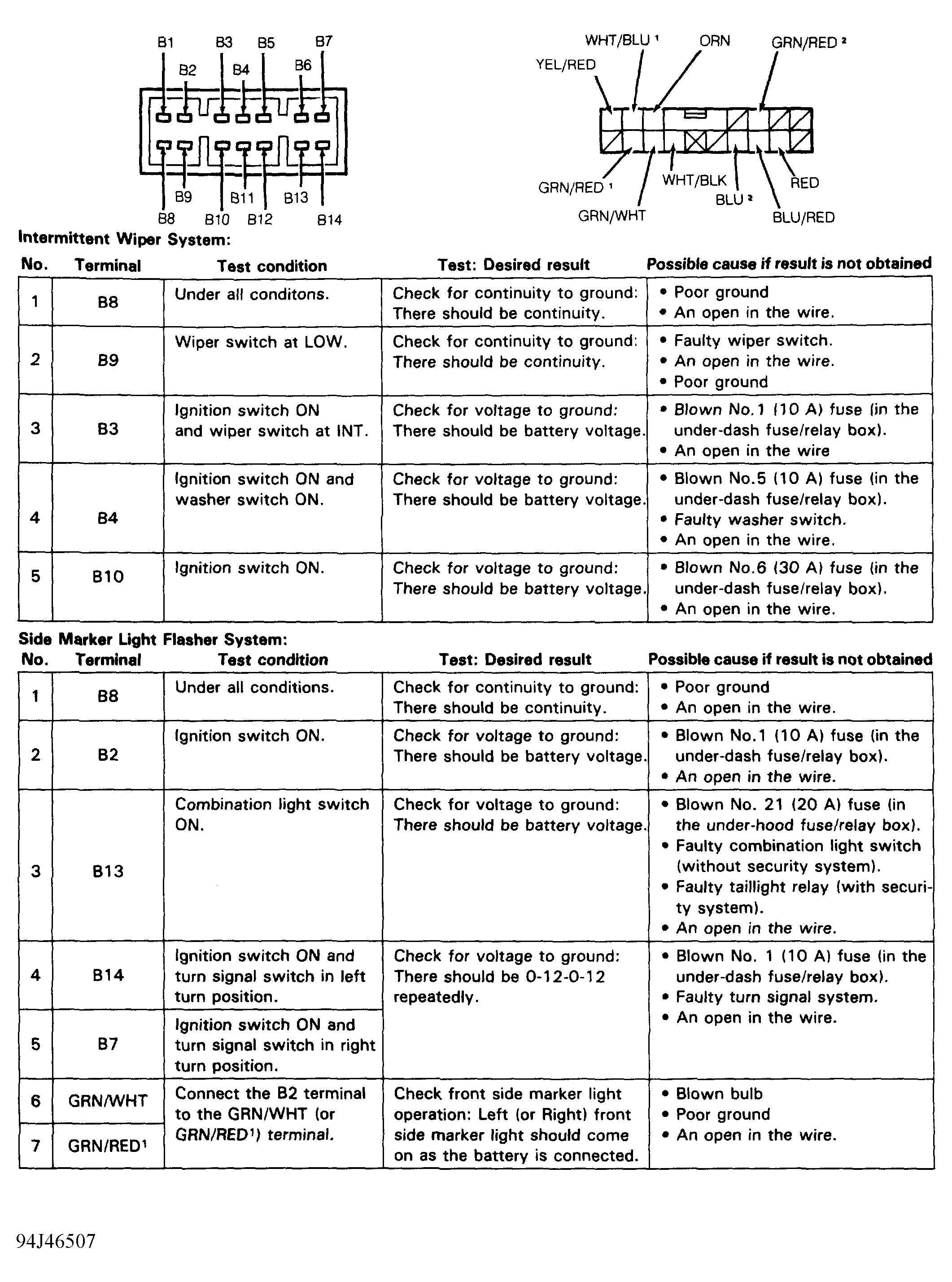

Fig 1: Integrated Control Unit Connector Terminal ID (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

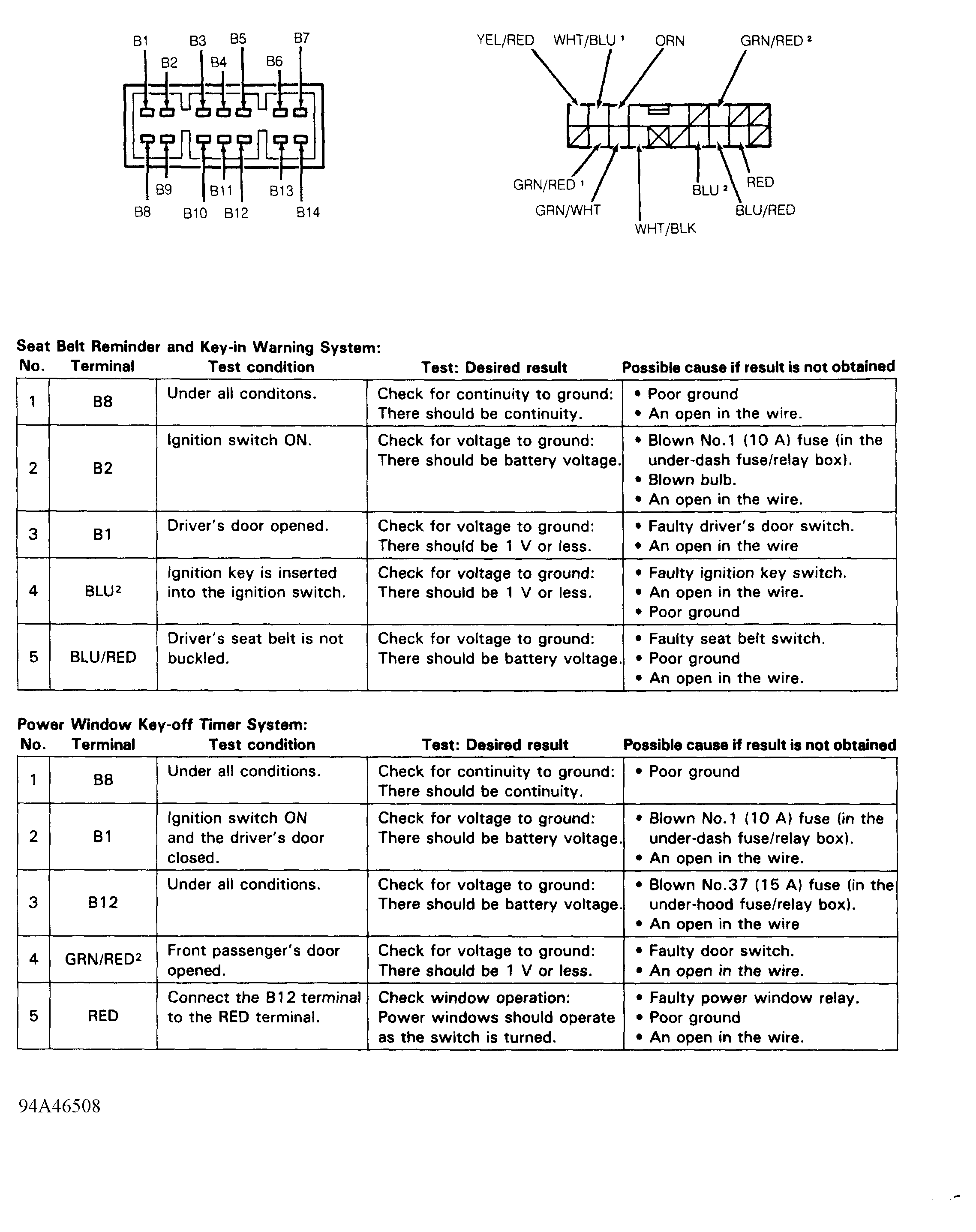

Fig 2: Integrated Control Unit Connector Terminal ID (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

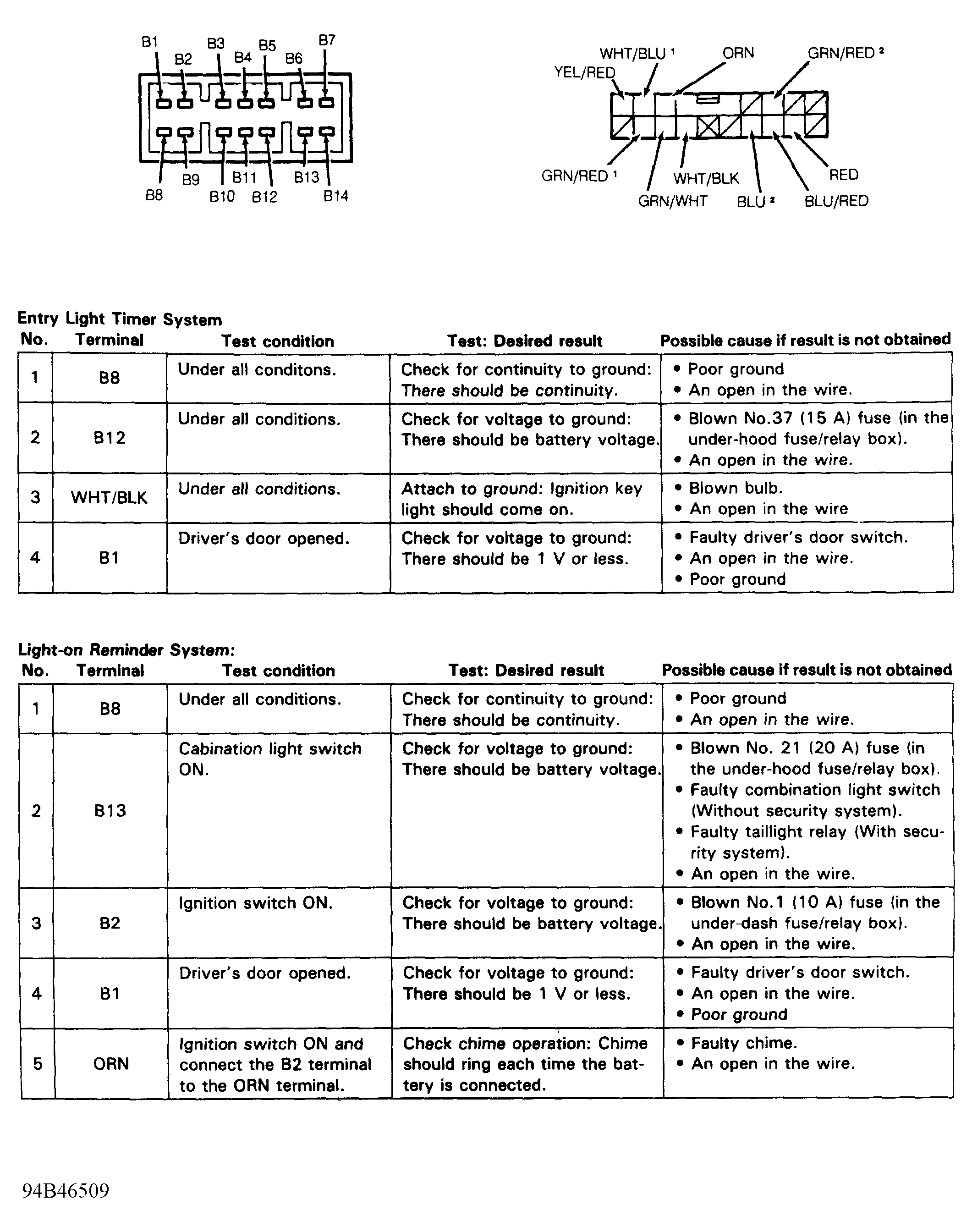

Fig 3: Testing Integrated Control Unit (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

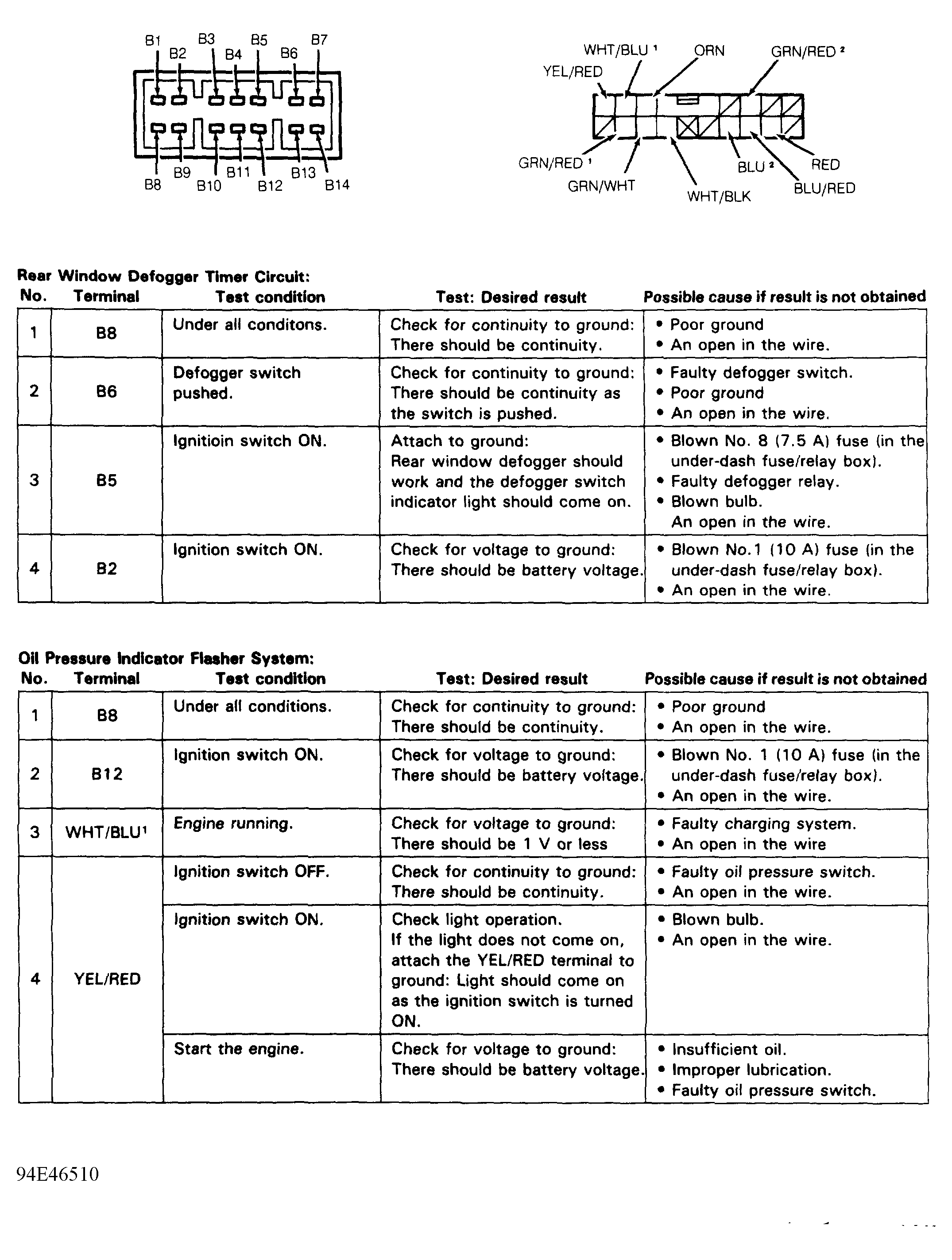

Fig 4: Testing Integrated Control Unit (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: Testing Integrated Control Unit (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 6: Testing Integrated Control Unit (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
