Intermittent Wiper System
Intermittent Wiper System
See
Figure
for connector identification.

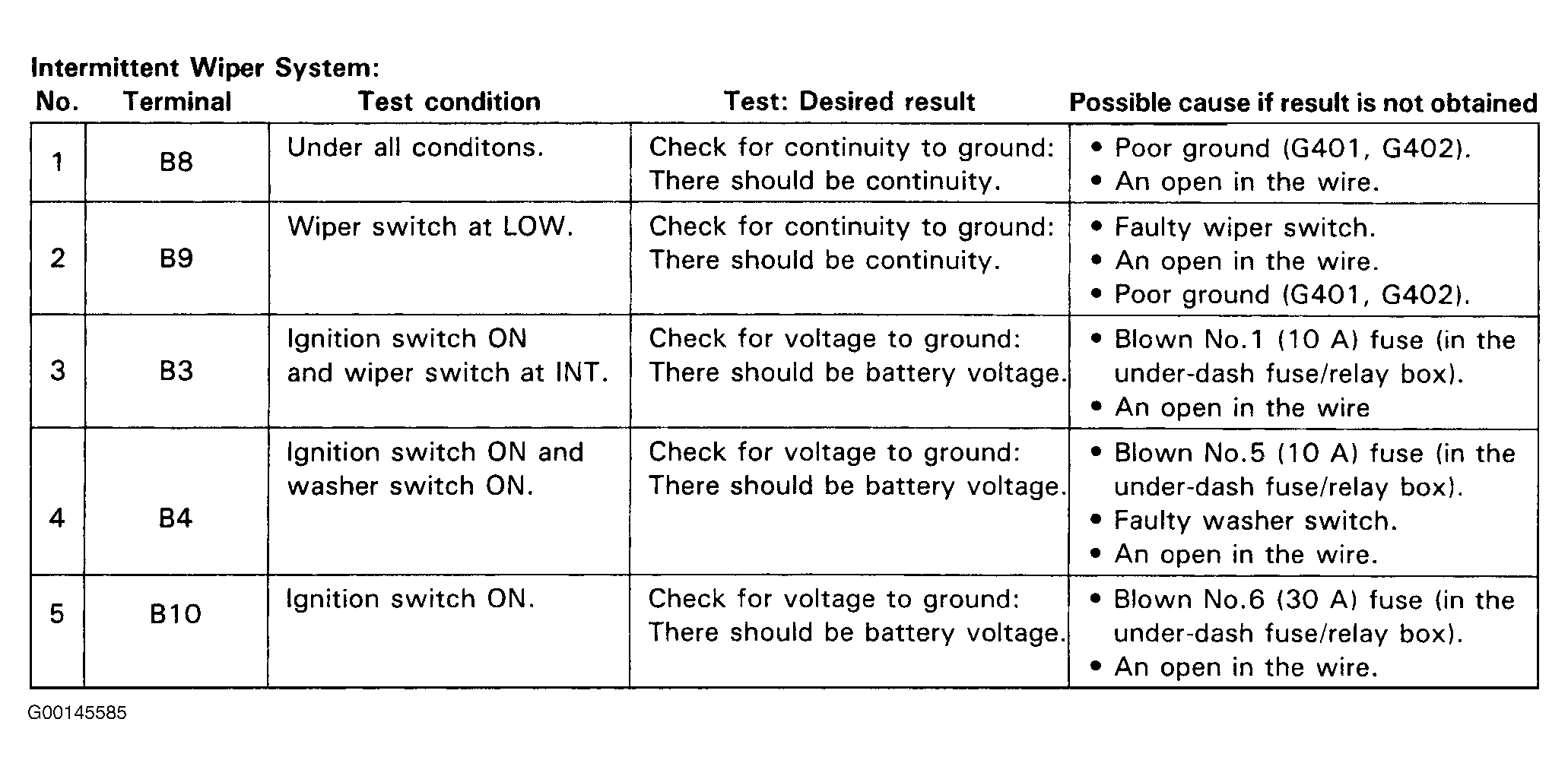

Fig 1: Intermittent Wiper System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
