Preliminary Checks

Remove the drivers side kick panel, then disconnect the 16-pin connector from the integrated control unit. Remove the integrated control unit from the under-dash fuse/relay box. Inspect the connector and socket terminals to be sure they are all making good contact. See Fig 1 and Fig 2 .

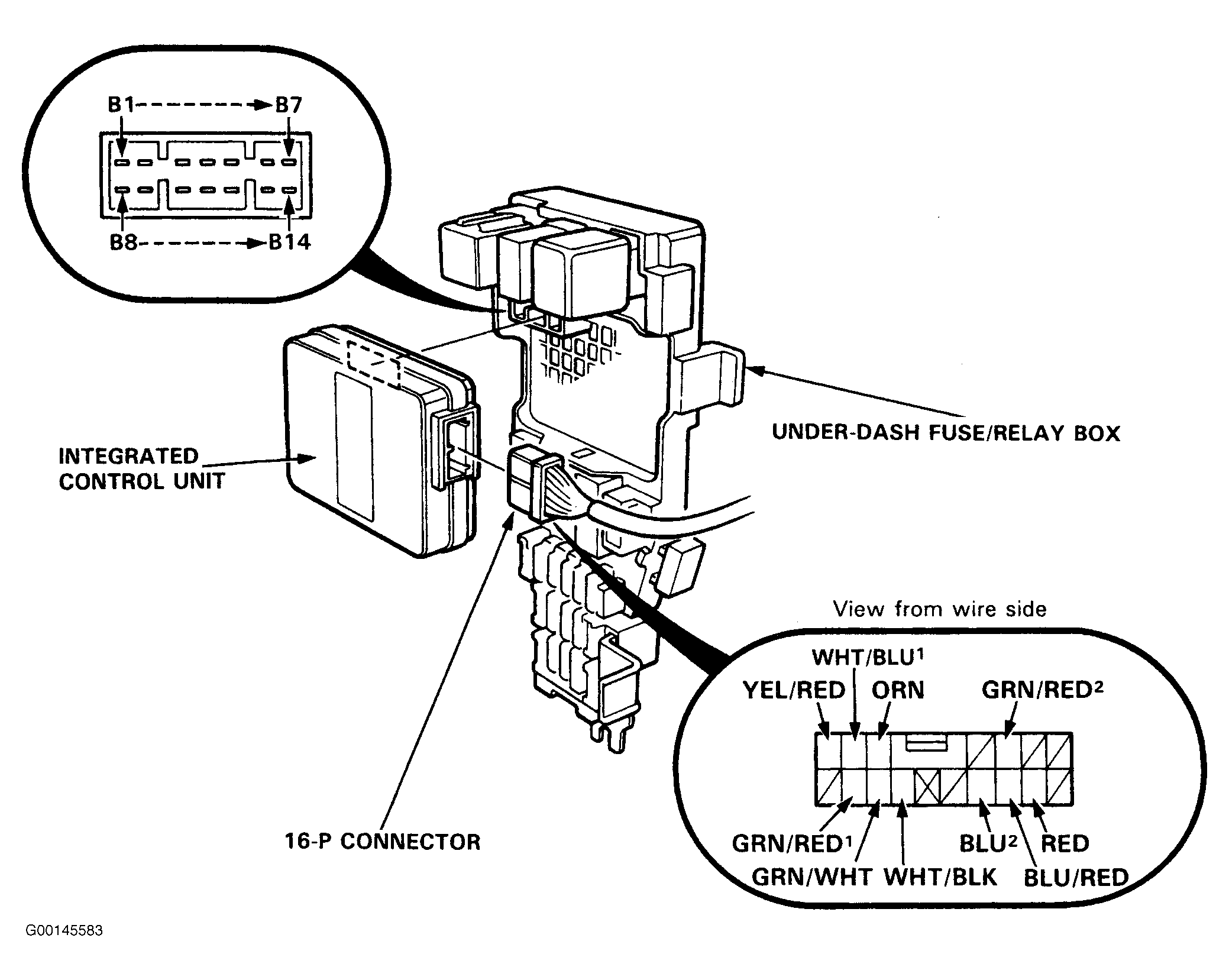

Fig 1: Identifying Integrated Control Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 2: Identifying Integrated Control Unit Connectors
Courtesy of AMERICAN HONDA MOTOR CO., INC.
If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system. If the terminals look OK , make the following input tests at the connector and socket.
If any test indicates a problem, find and correct the cause, then recheck the system. If all input tests prove OK, the control unit must be faulty, replace it.
