Rear Window Defogger Timer Circuit

See Figure for connector identification.

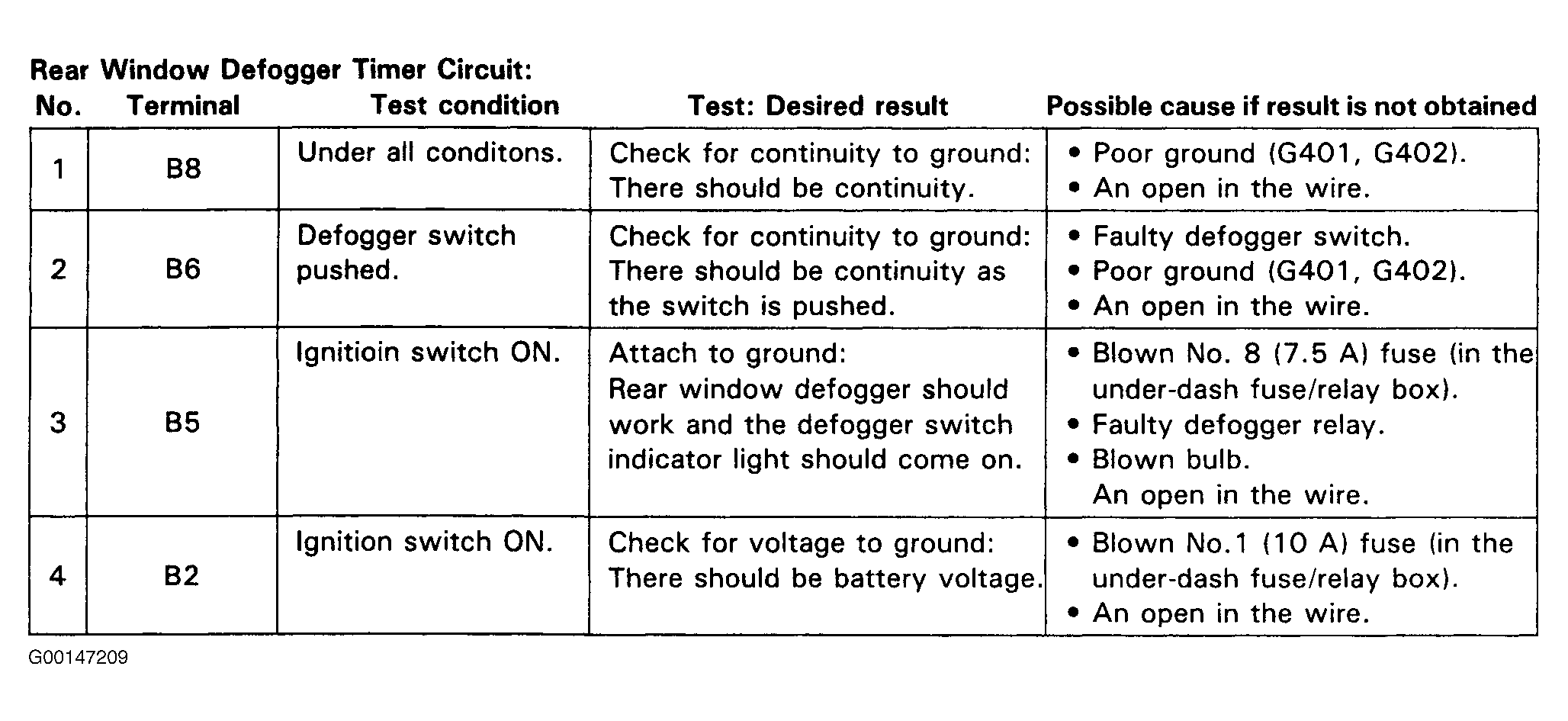

Fig 1: Rear Window Defogger Timer Circuit Input Test
G00147209Courtesy of AMERICAN HONDA MOTOR CO., INC.
