Side Marker Light Flasher System
Side Marker Light Flasher System
NOTE:
See
Figure
for connector identification.

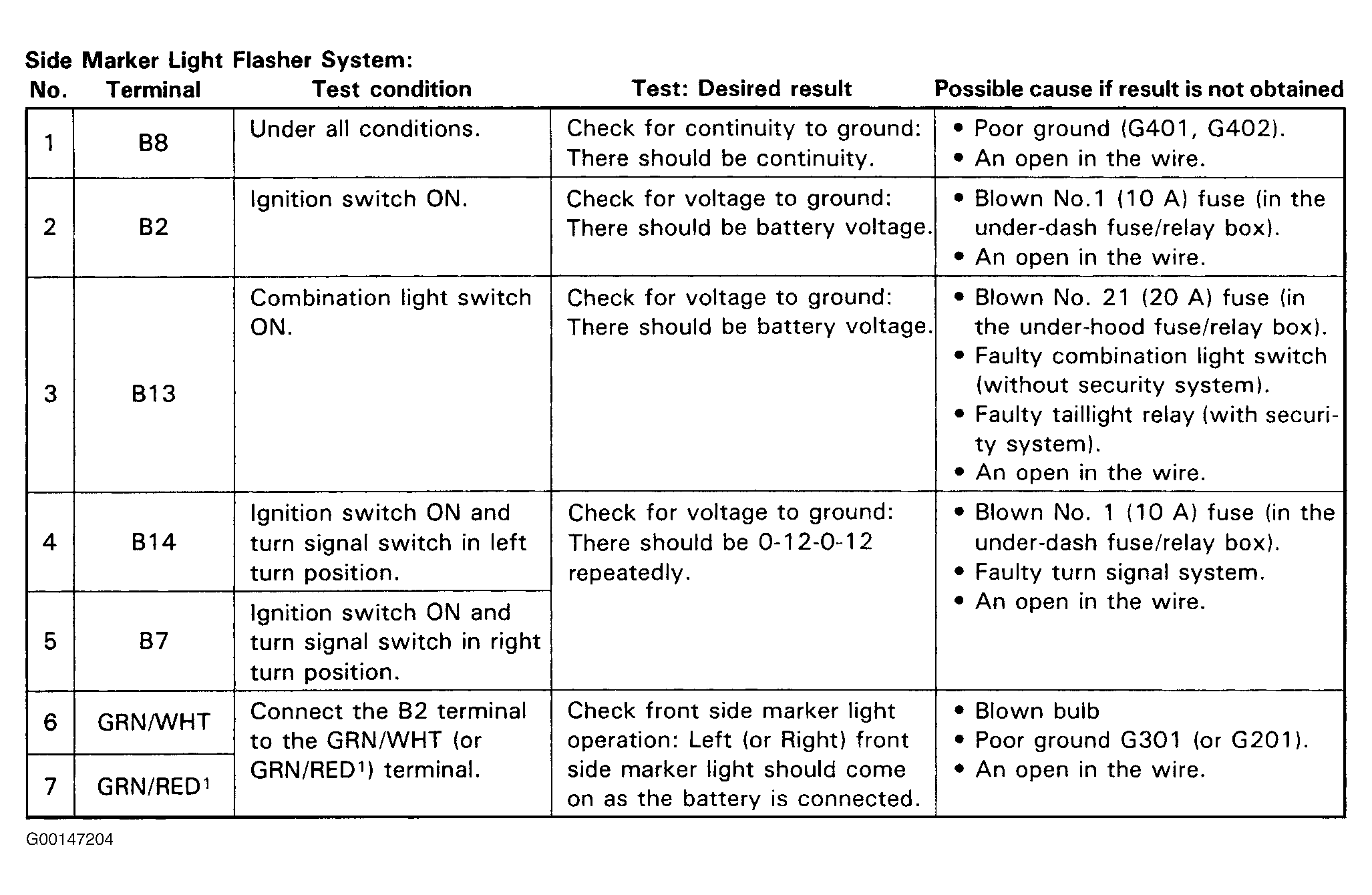

Fig 1: Side Marker Light Flasher System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
