Control Unit Input Test

1. Turn ignition off. Cruise control unit is located under instrument panel above brake pedal bracket. Unplug cruise control unit 13-pin connector.
2. Using a DVOM, perform cruise control unit input tests in Fig 1 and Fig 2 . If all input test results are okay, inspect cruise control unit connector for damage and proper fit. If connector is okay but cruise control still malfunctions, replace cruise control unit.

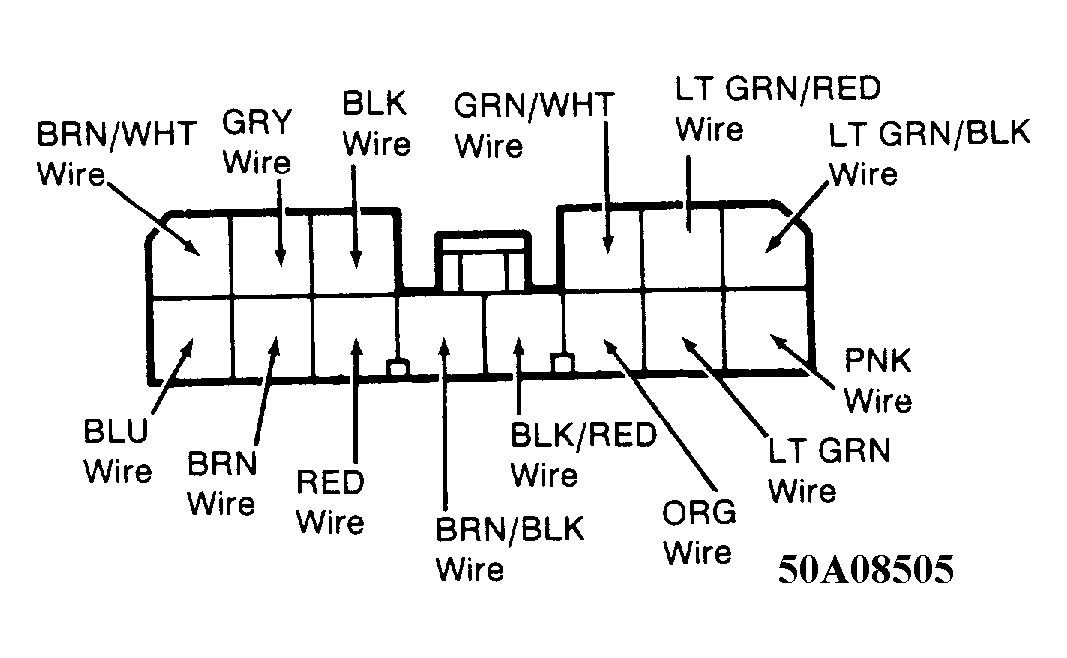

   Fig 1: Cruise Control Unit Connector

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
   • Numbers 1 through 14 refer to test numbers, not terminal numbers.
   • Ground G301 is located in left front corner of engine compartment.
   • Ground G401 is located behind left kick panel.
   • Ground G402 is located behind right kick panel.

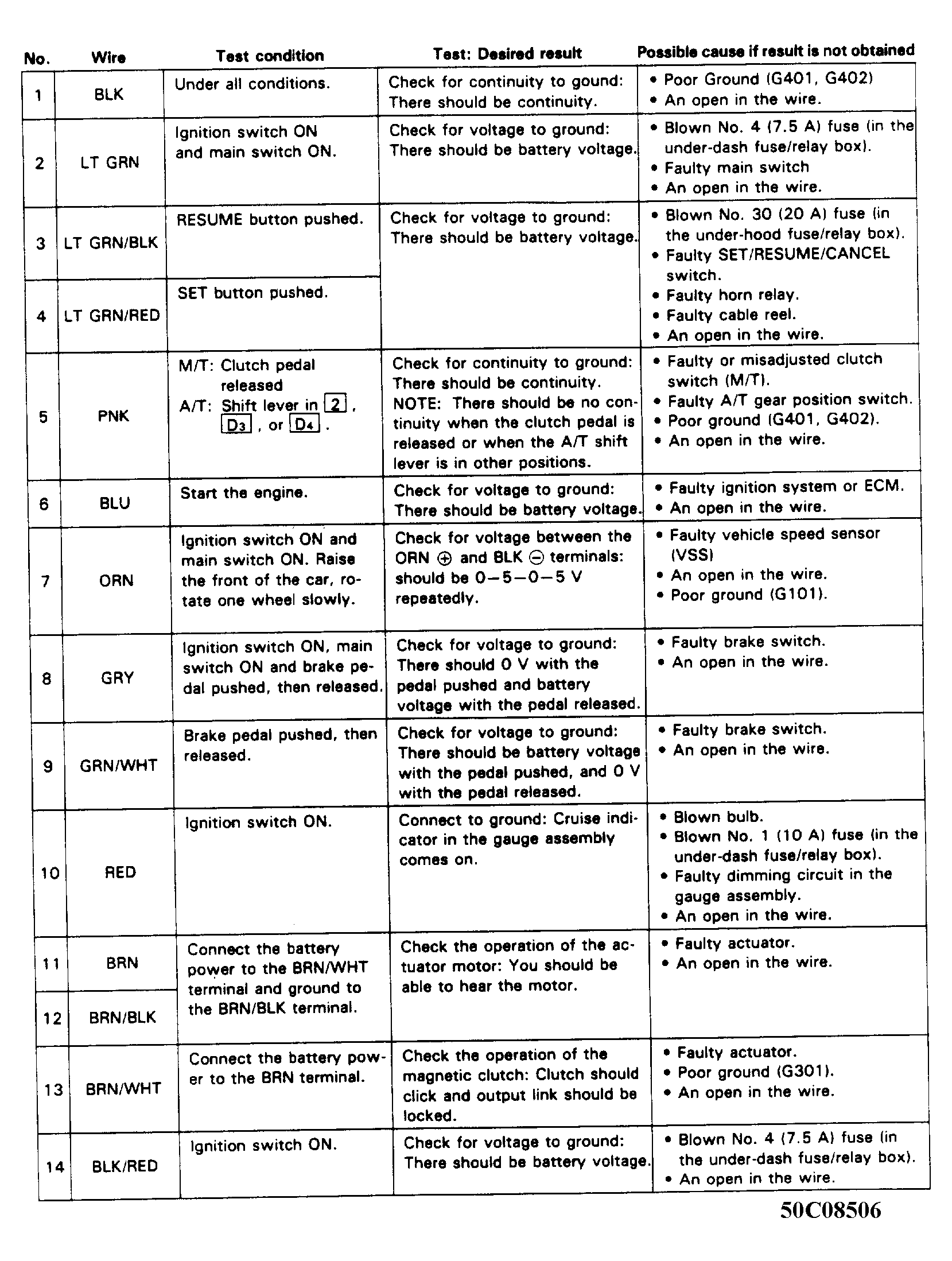

Fig 2: Cruise Control Unit Input Test

Courtesy of AMERICAN HONDA MOTOR CO., INC.
