Abs Self-Diagnostic Flow Charts
›
8-1: Abs Function
8-1: Abs Function

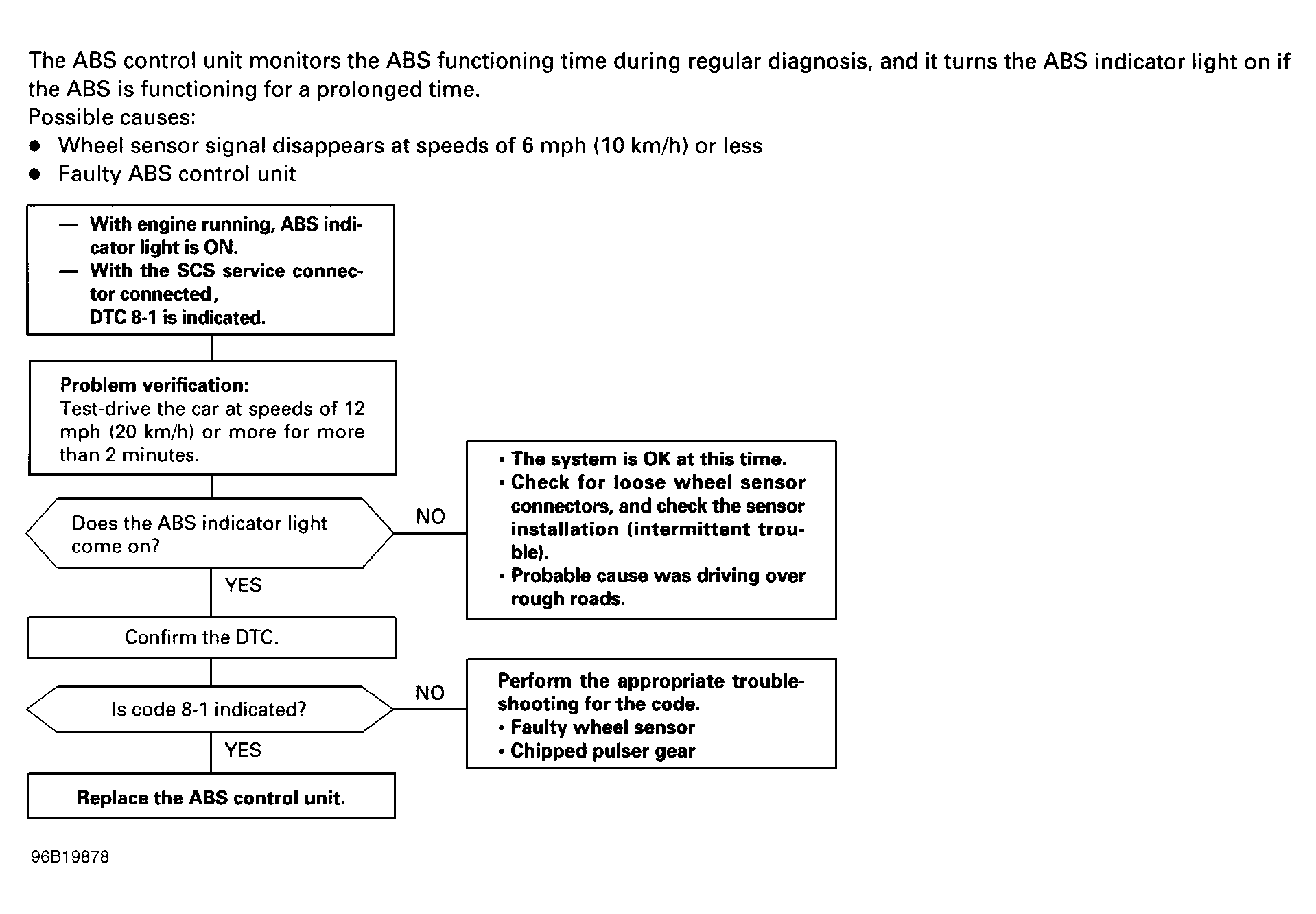

Fig 1: 8-1: ABS Function
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
