Fuel Pump: Replacement

  1. Remove the fuel tank. See FUEL TANK .
  2. Remove the fuel pump mounting nuts.
  3. Remove the fuel pump from the fuel tank.
  4. Install the parts in the reverwse order of removal.

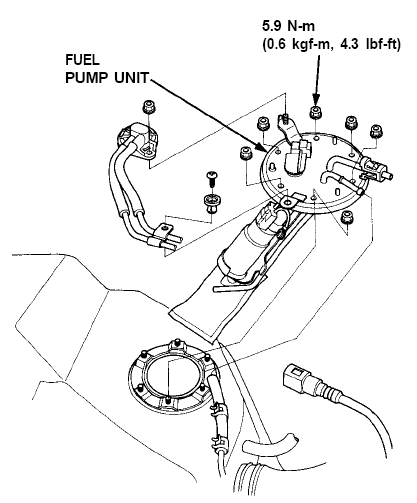

    5. Fig 1: Fuel Pump Unit With Torque Specifications
    G00491148Courtesy of AMERICAN HONDA MOTOR CO., INC.
