Component Location

The following test procedures require that wiring be connected and disconnect from components. These components are identified in illustration. See Fig 1.

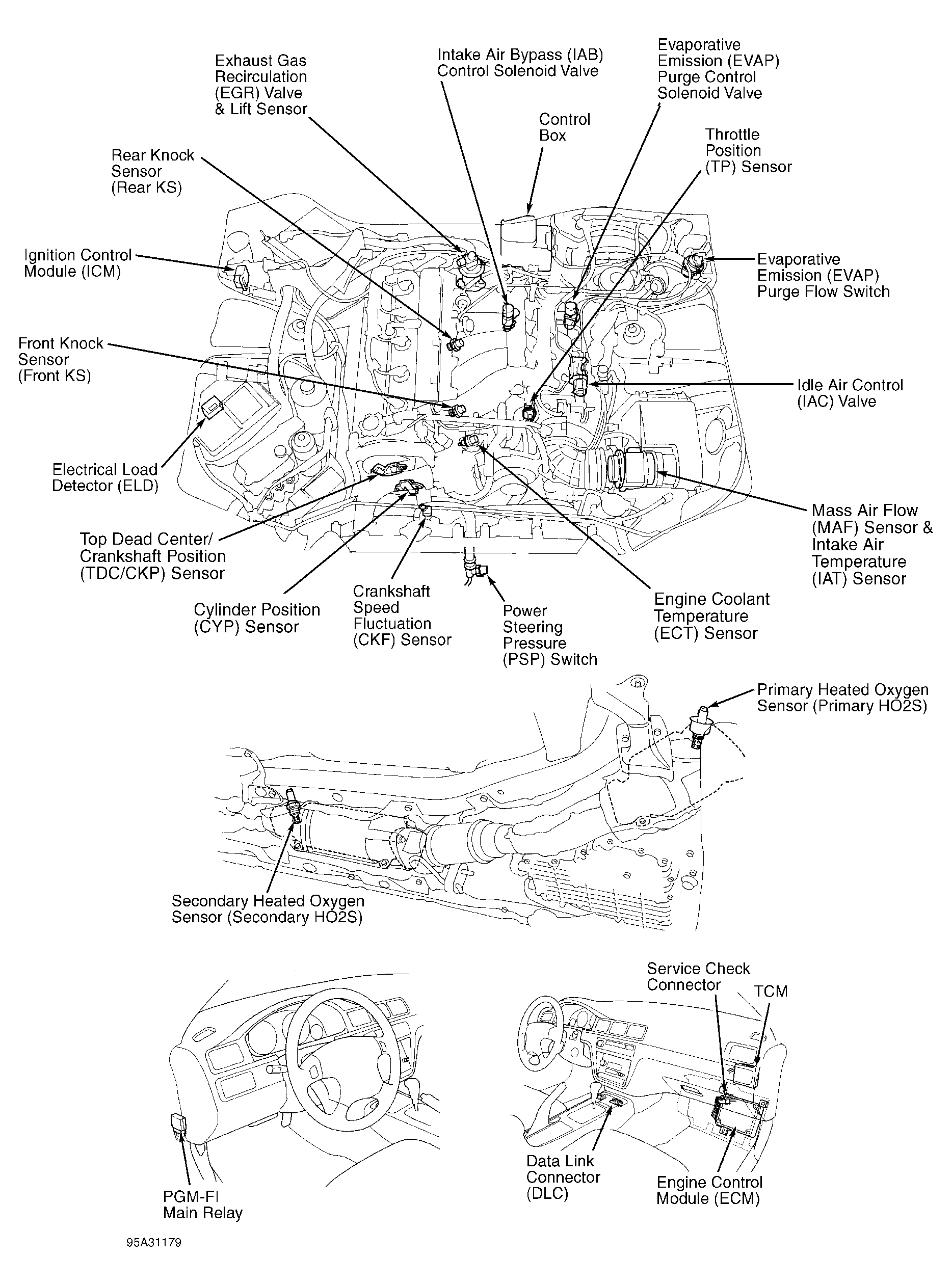

Fig 1: Locating Emission-Related Components

Courtesy of AMERICAN HONDA MOTOR CO., INC.
