Bulb Check System
See
Figure
for connector terminal identification.

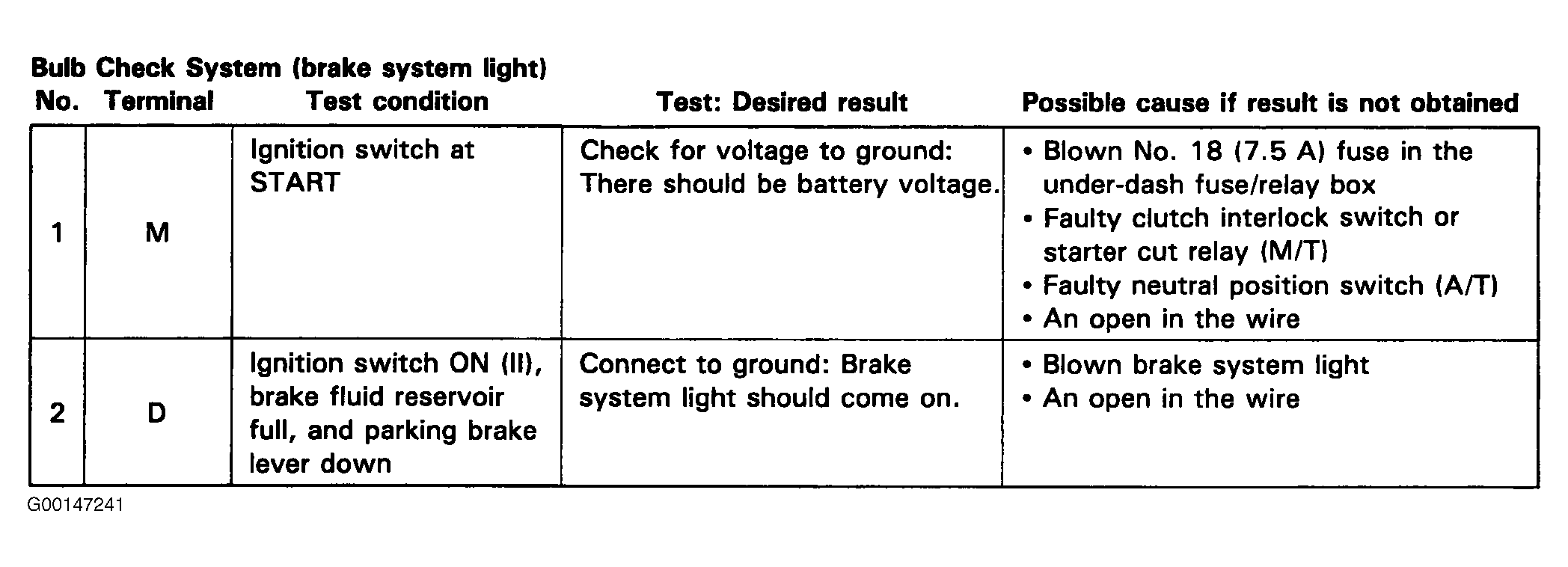

Fig 1: Bulb Check System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
