Fuel Gauge Sending Unit

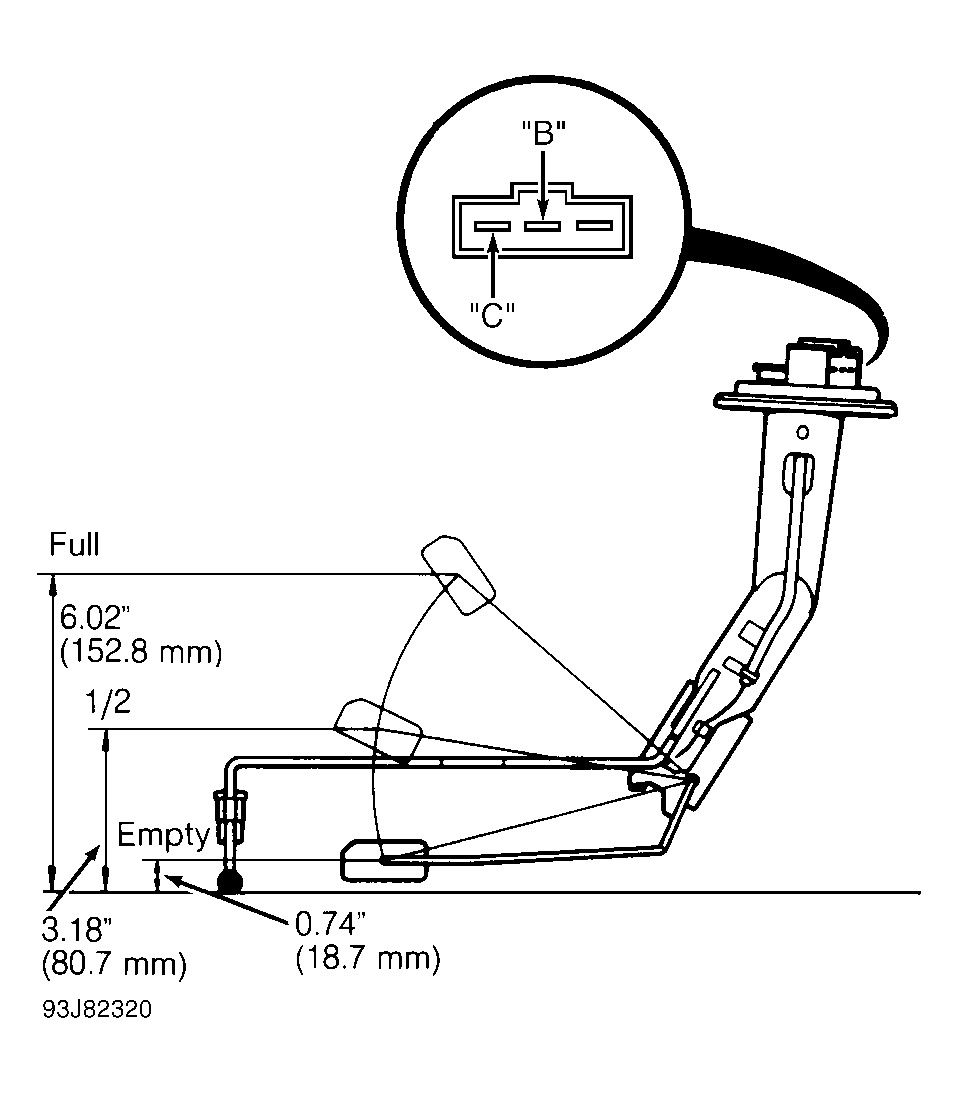

Remove rear seat and fuel pump access panel. Turn ignition off. Disconnect fuel gauge sending unit 3-pin connector. Using Fuel Sender Wrench (07GAC-SE0020A), remove sending unit. Measure resistance between sending unit terminal "B" and terminal "C" while moving float. See Fig 1 . Resistance must be as specified in FUEL GAUGE SENDING UNIT RESISTANCE table.
FUEL GAUGE SENDING UNIT RESISTANCE
| Float Position | Ohms |
|---|---|
| Full | 2-5 |
| 1/2 | 25-39 |
| Empty | 105-110 |
