Component Locations
For component locations see .
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| A/C Diode | Above Right Kick Panel. |

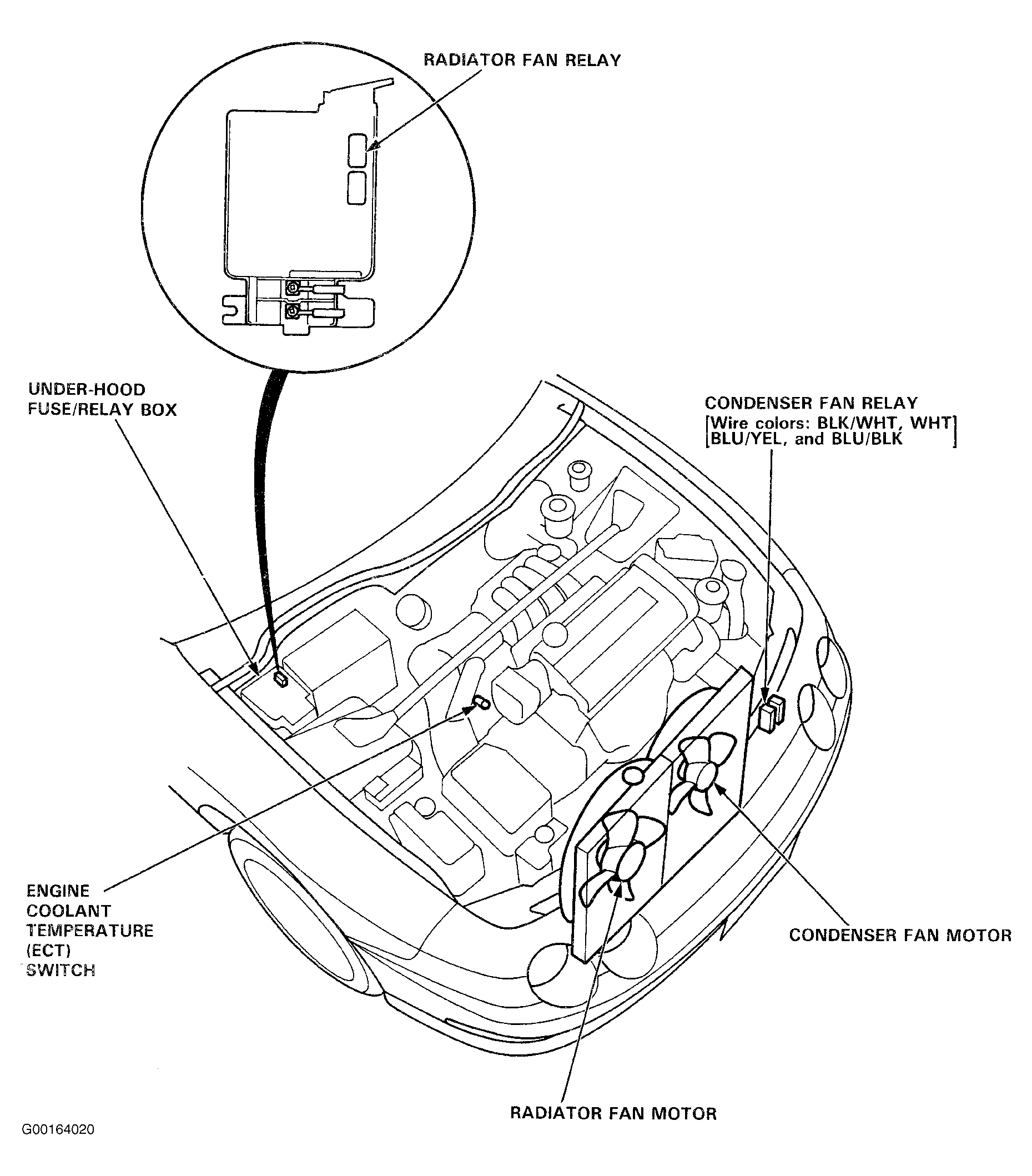

| Condenser Fan Motor | Behind Left Side Of Radiator, At Front Of Engine Compartment. See Fig 1 . |
| Condenser Fan Relay | Left Front Corner Of Engine Compartment, Near Radiator. See Fig 1 . |

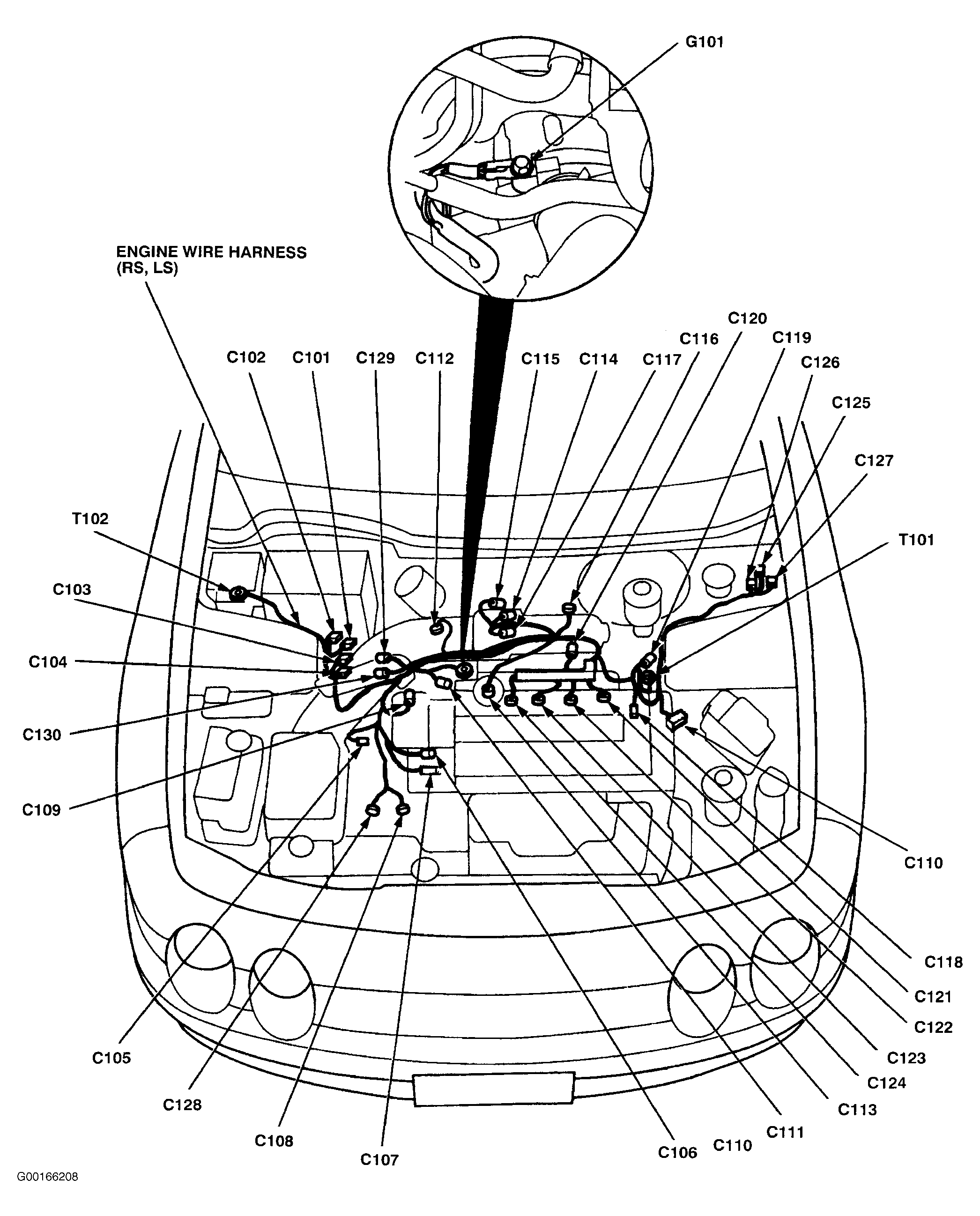

| Connector C127 | Left Rear Corner Of Engine Compartment. See Fig 2 . |

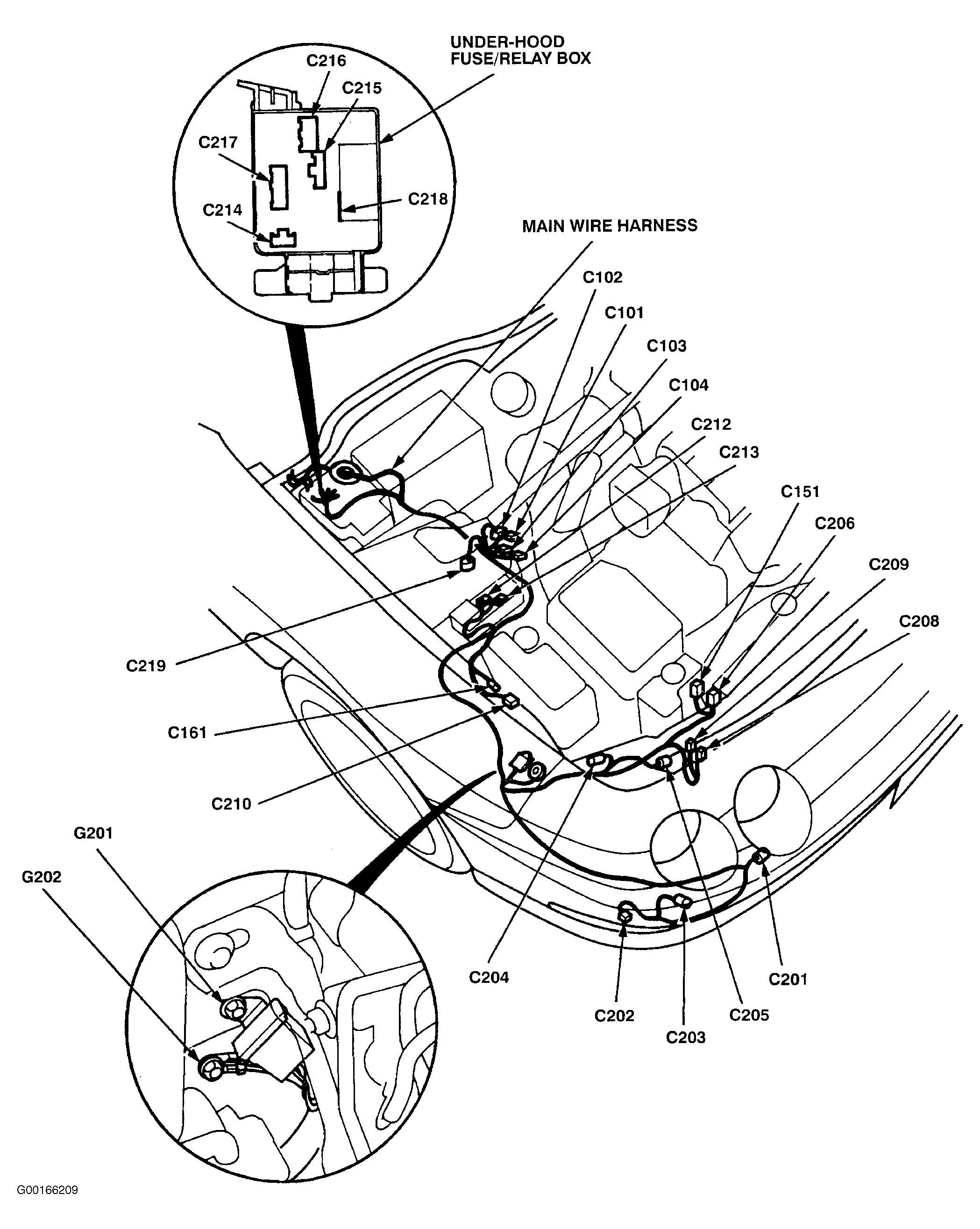

| Connector C206 | Front Of Engine Compartment. See Fig 4 . |
| Connector C217 | Left Rear Corner Of Engine Compartment. See Fig 4 . |

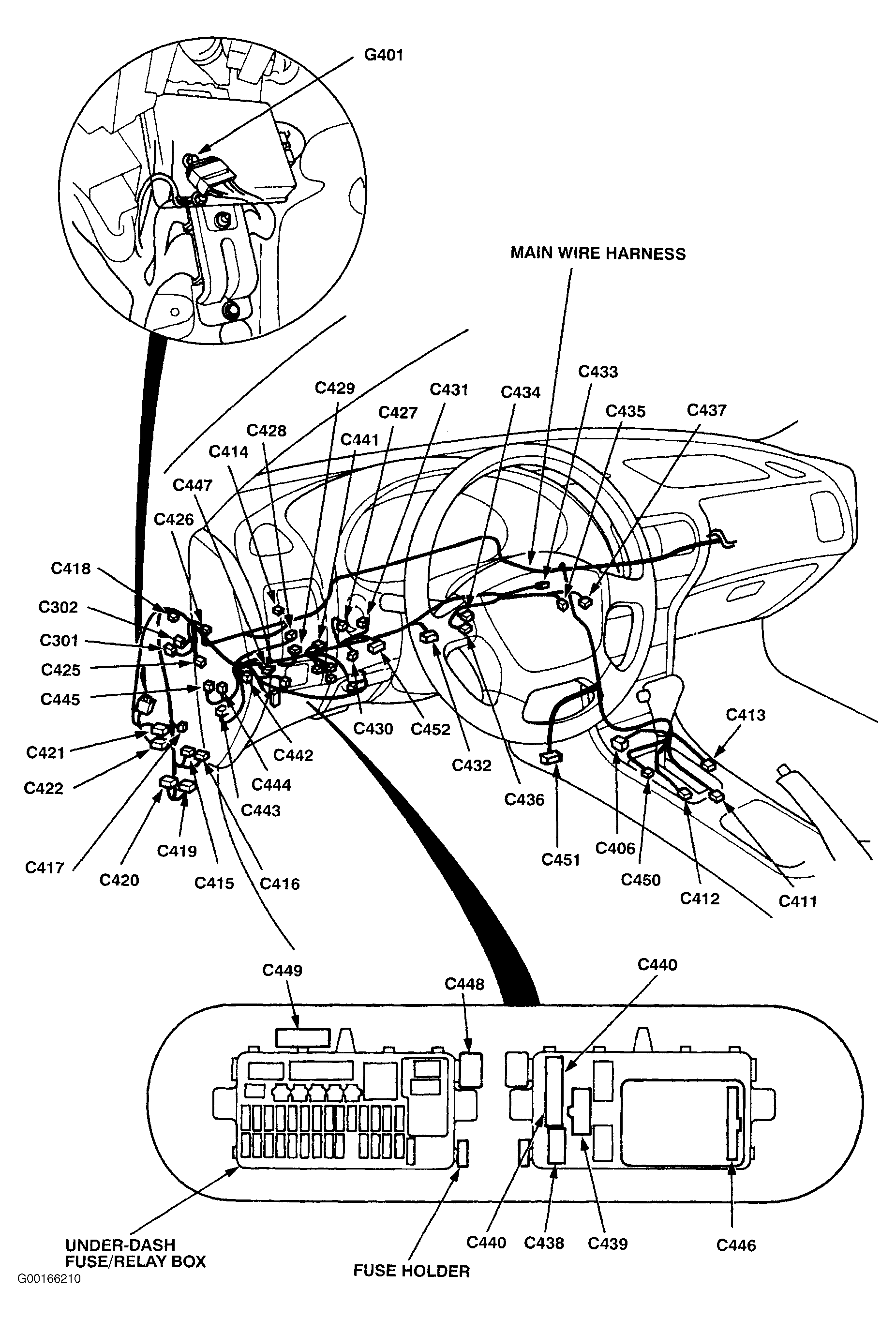

| Connector C301 | Behind Left Side Of Instrument Panel. See Fig 5 . |
| Engine Coolant Temperature Switch | Lower Right Rear Of Engine, On Thermostat Housing. See Fig 1 . |
| Ground G101 | On Top Of Engine. See Fig 2 . |

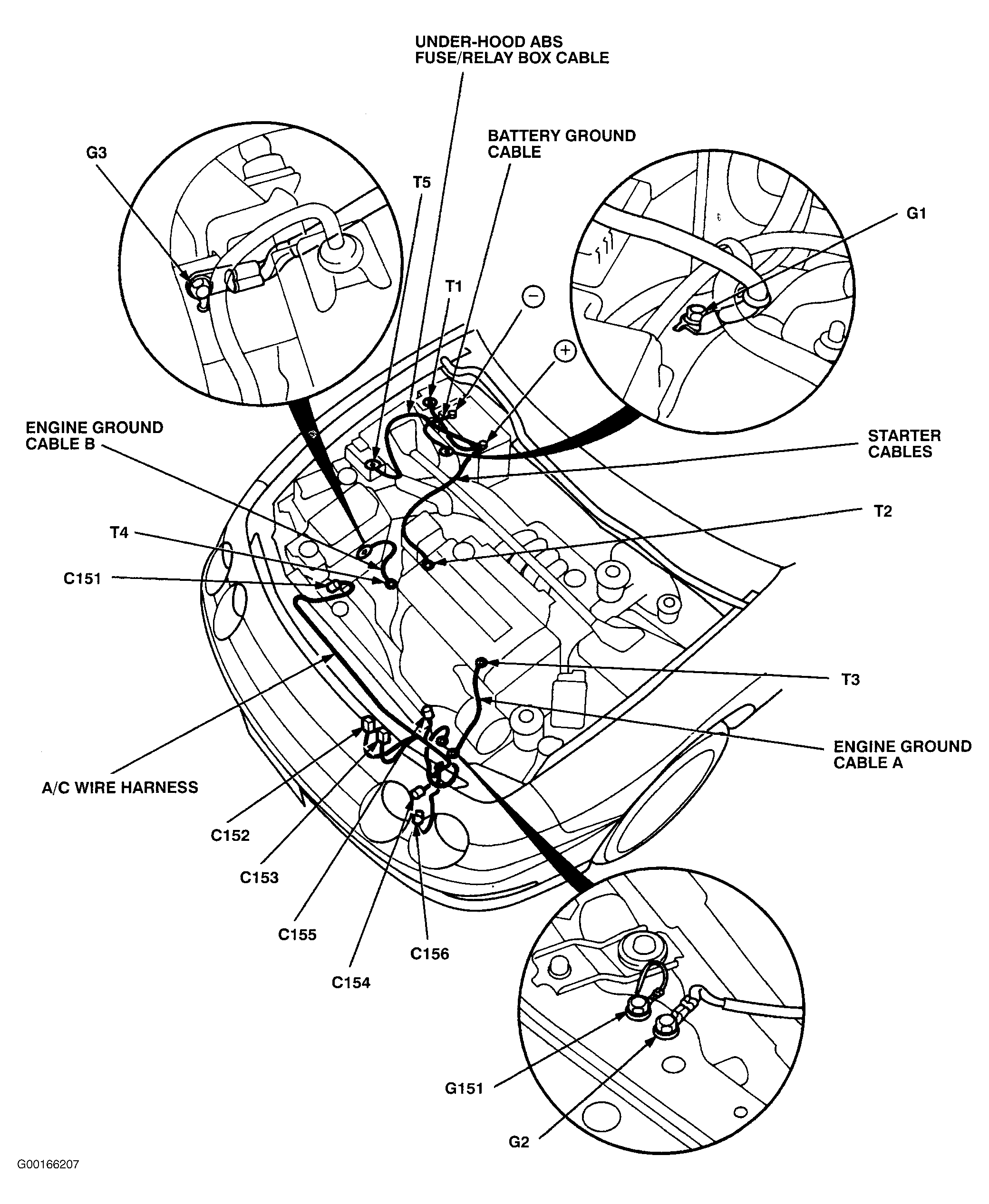

| Ground G151 | Left Front Corner Of Engine Compartment. See Fig 3 . |
| Ground G201 | On Right Fenderwell. See Fig 4 . |
| Ground G401 | Behind Left Side Of Instrument Panel. See Fig 5 . |
| Radiator Fan Motor | Behind Right Side Of Radiator, At Front Of Engine Compartment. See Fig 1 . |
| Radiator Fan Relay | In Under-Hood Fuse/Relay Box. See Fig 1 . |
| Under-Hood Fuse/Relay Box | Right Side Of Engine Compartment, Near Battery. See Fig 1 . |
