Integrated Control Unit

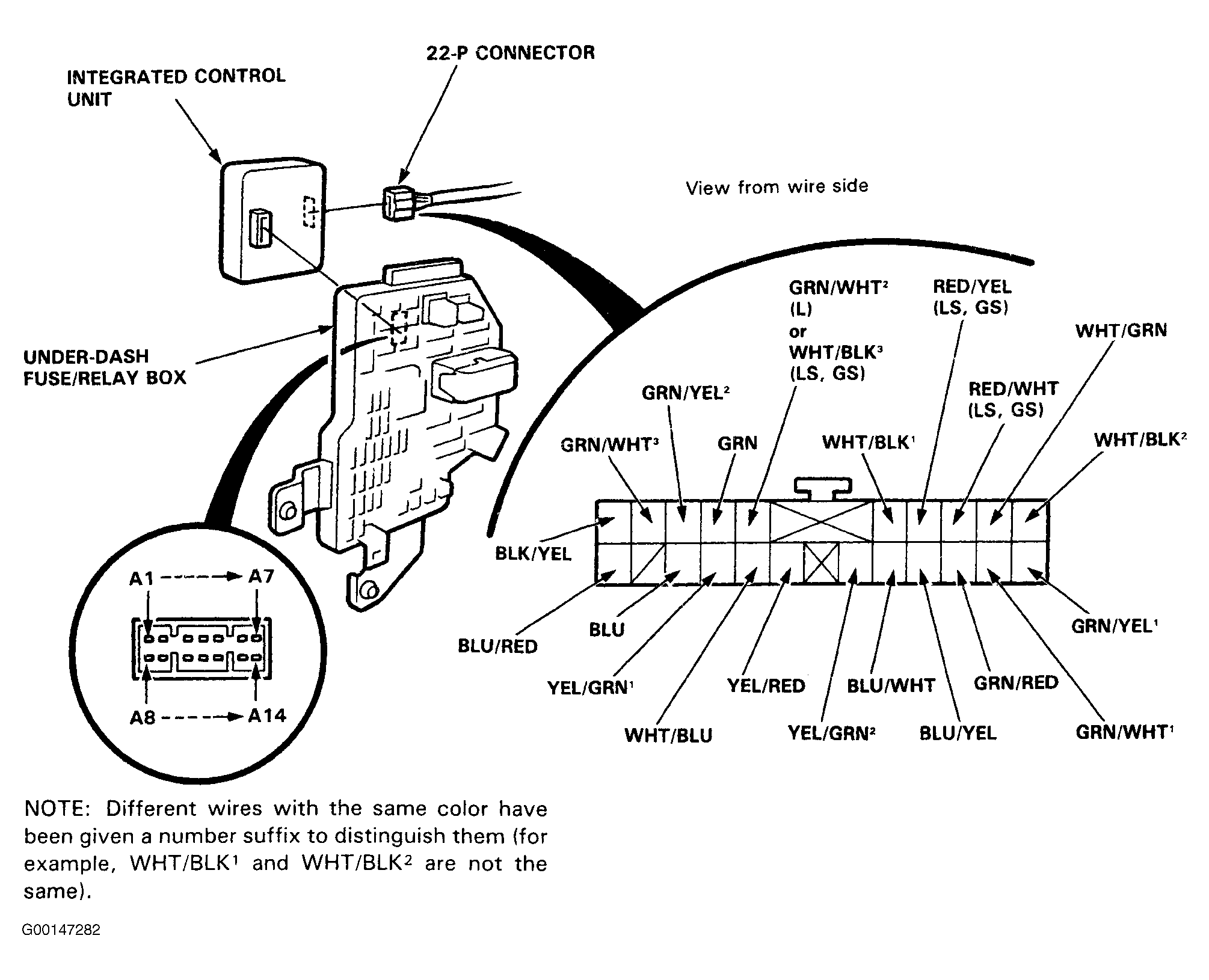

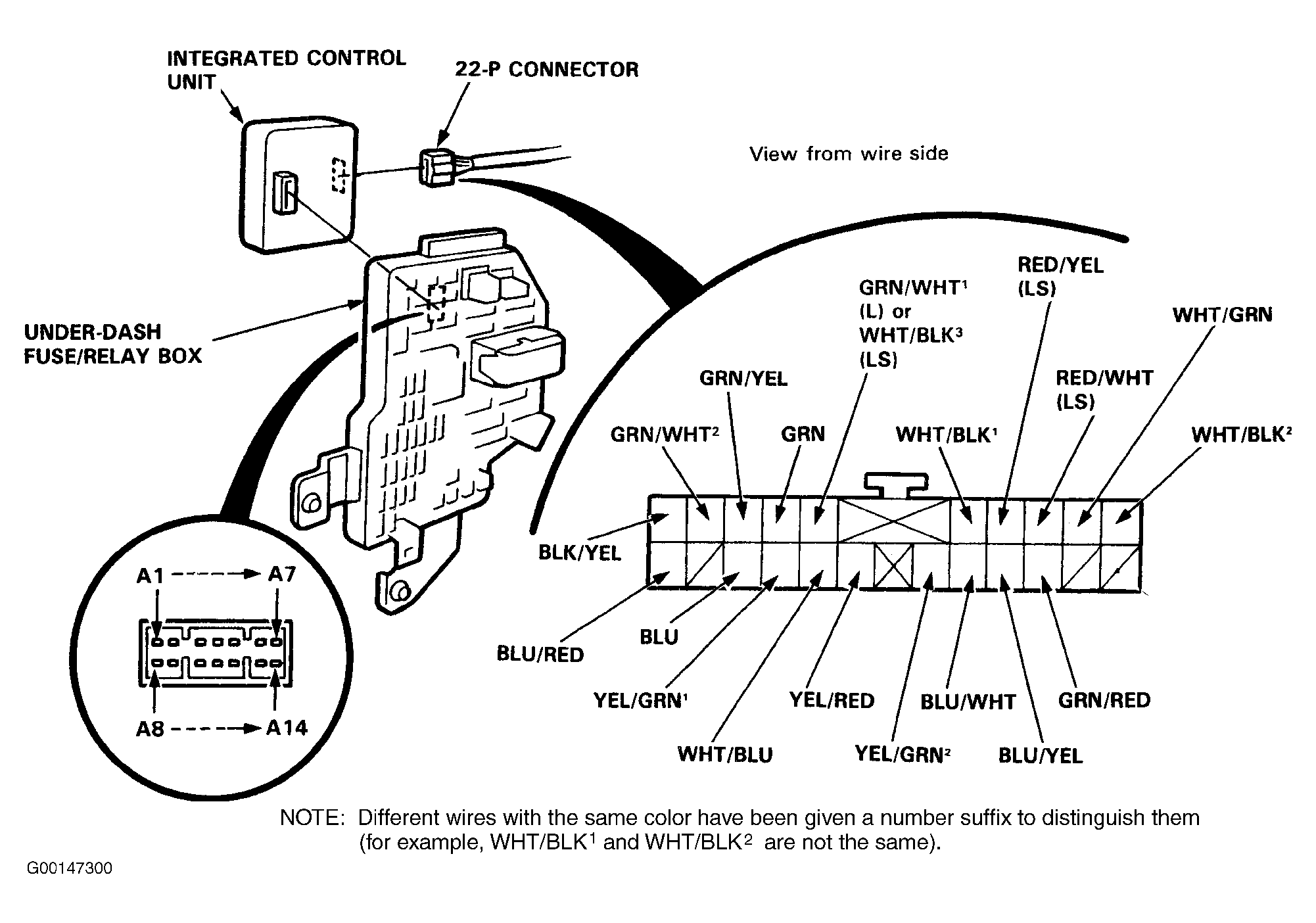

A multi-function control unit located on the left kick panel integrates on one circuit board the functions of the entry light control, key-in reminder, lights-on reminder, seat belt reminder, oil pressure indicator, side marker light flasher, power window key-off timer, intermittent wiper, and rear window defogger timer onto one circuit board, sharing common circuit functions. See Fig 1 or Fig 2 .
NOTE:
Several different wires have the same color. They have been given a number suffix to distinguish them (for example YEL/GRN1 and YEL/GRN2 are not the same).
