Power Window Key-Off Timer System

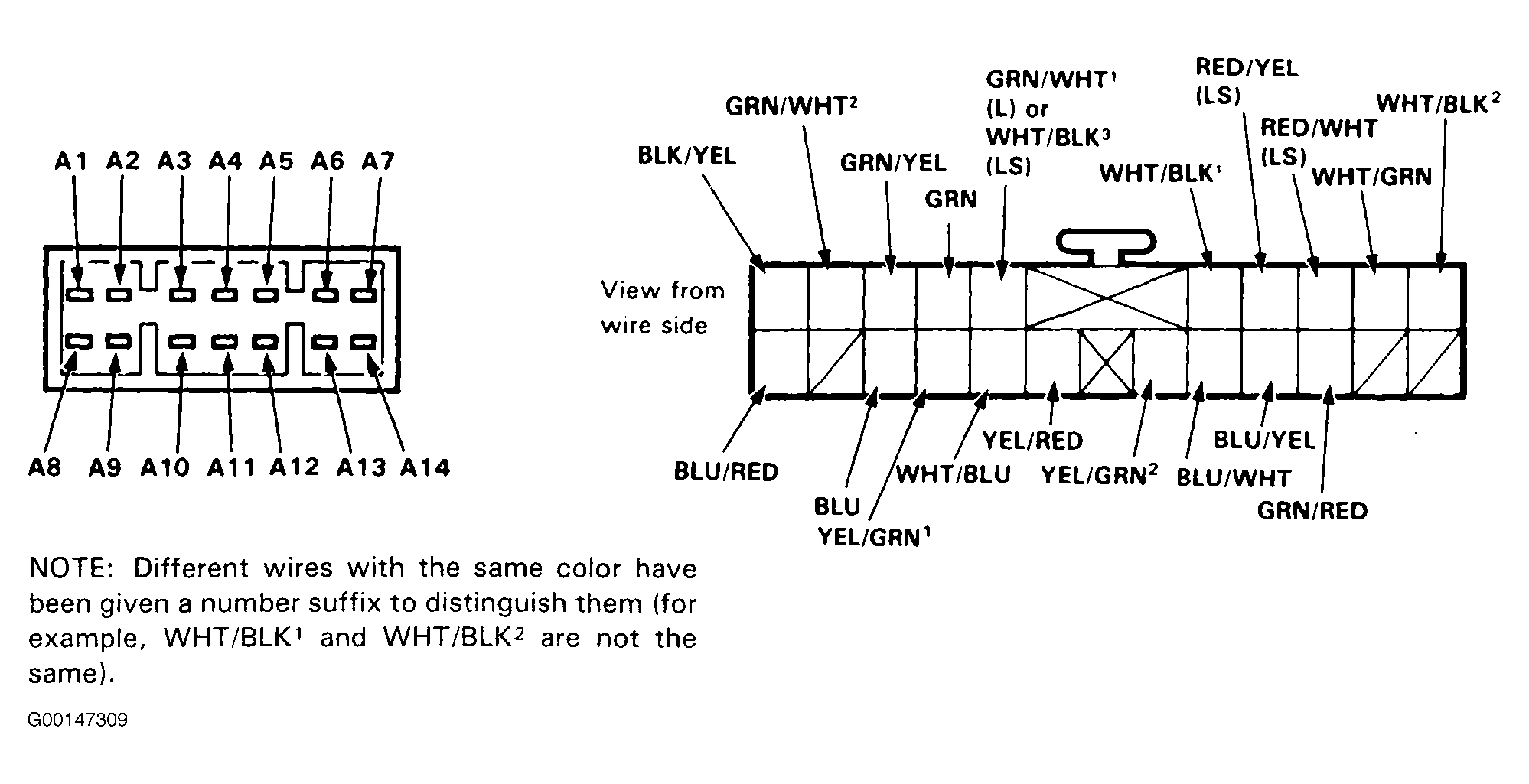

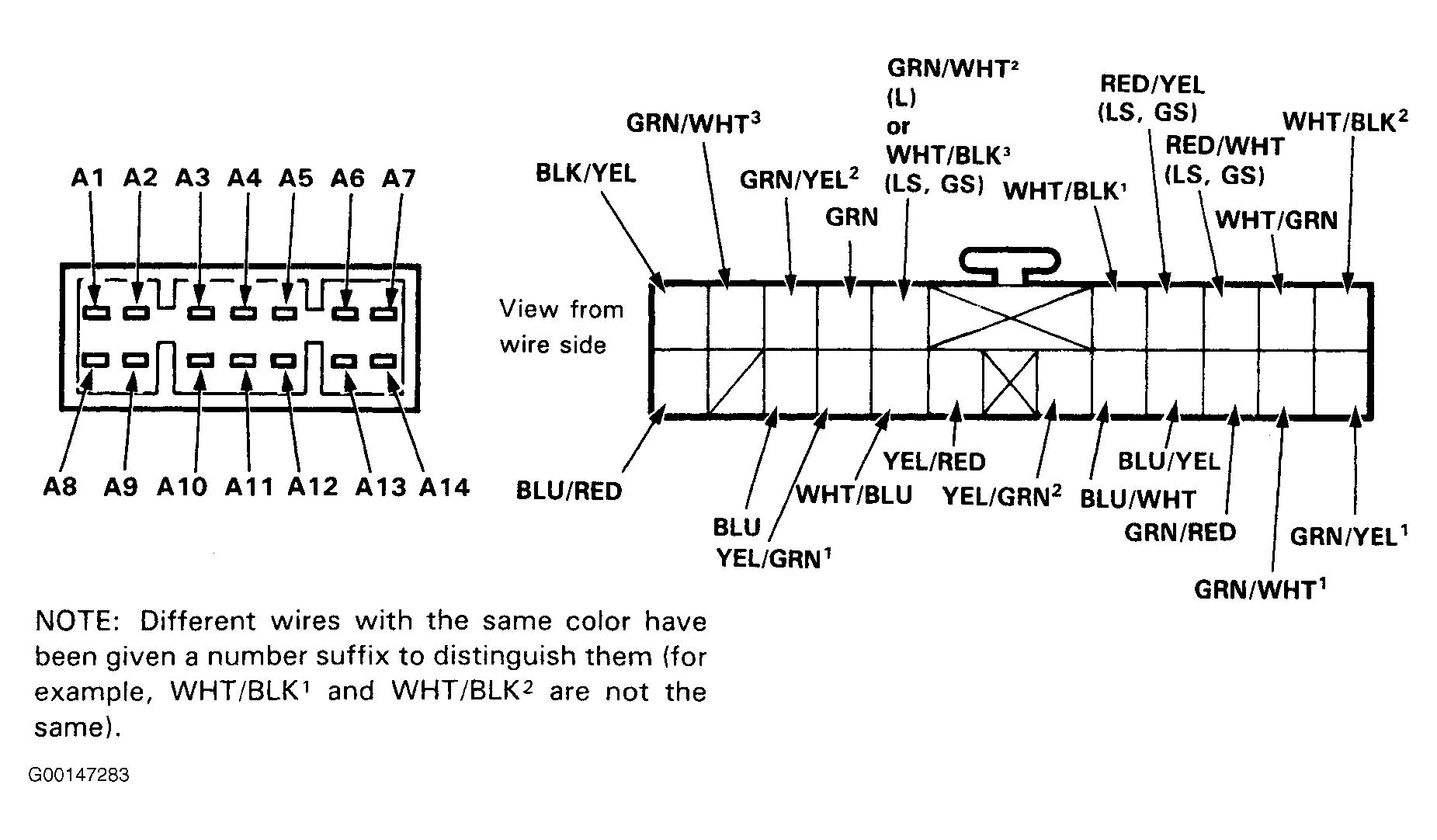

See
Figure
or
Figure
for connector terminal identification.

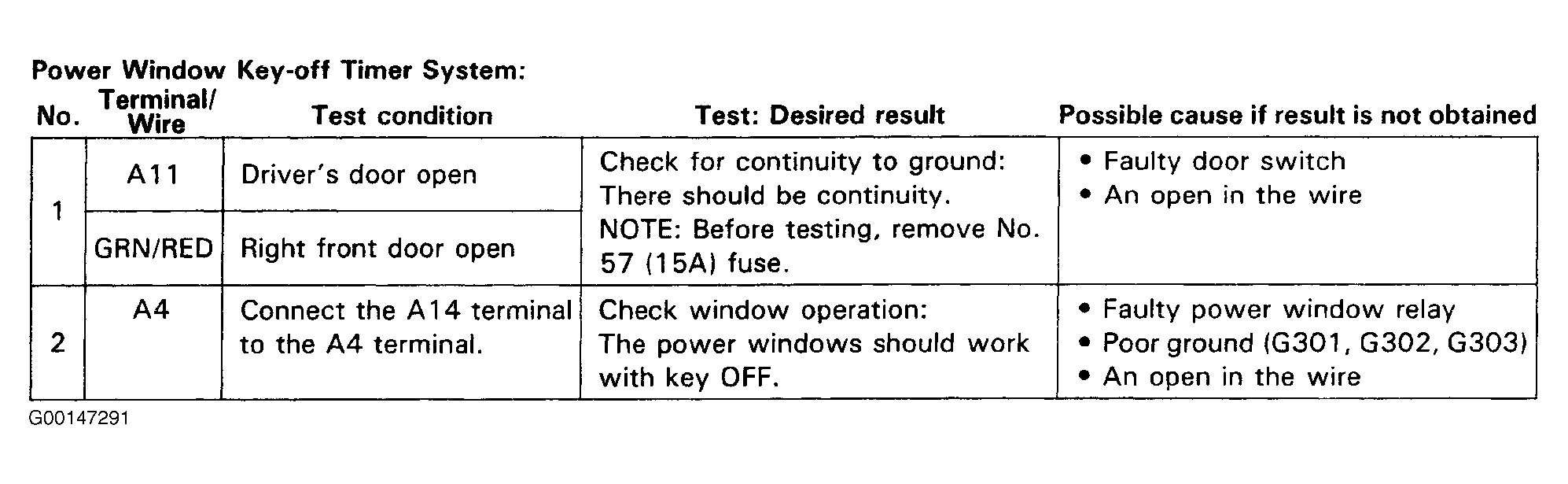

Fig 1: Power Window Key-Off Timer System Input Test
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
