Steering Angle Sensor
Steering Angle Sensor

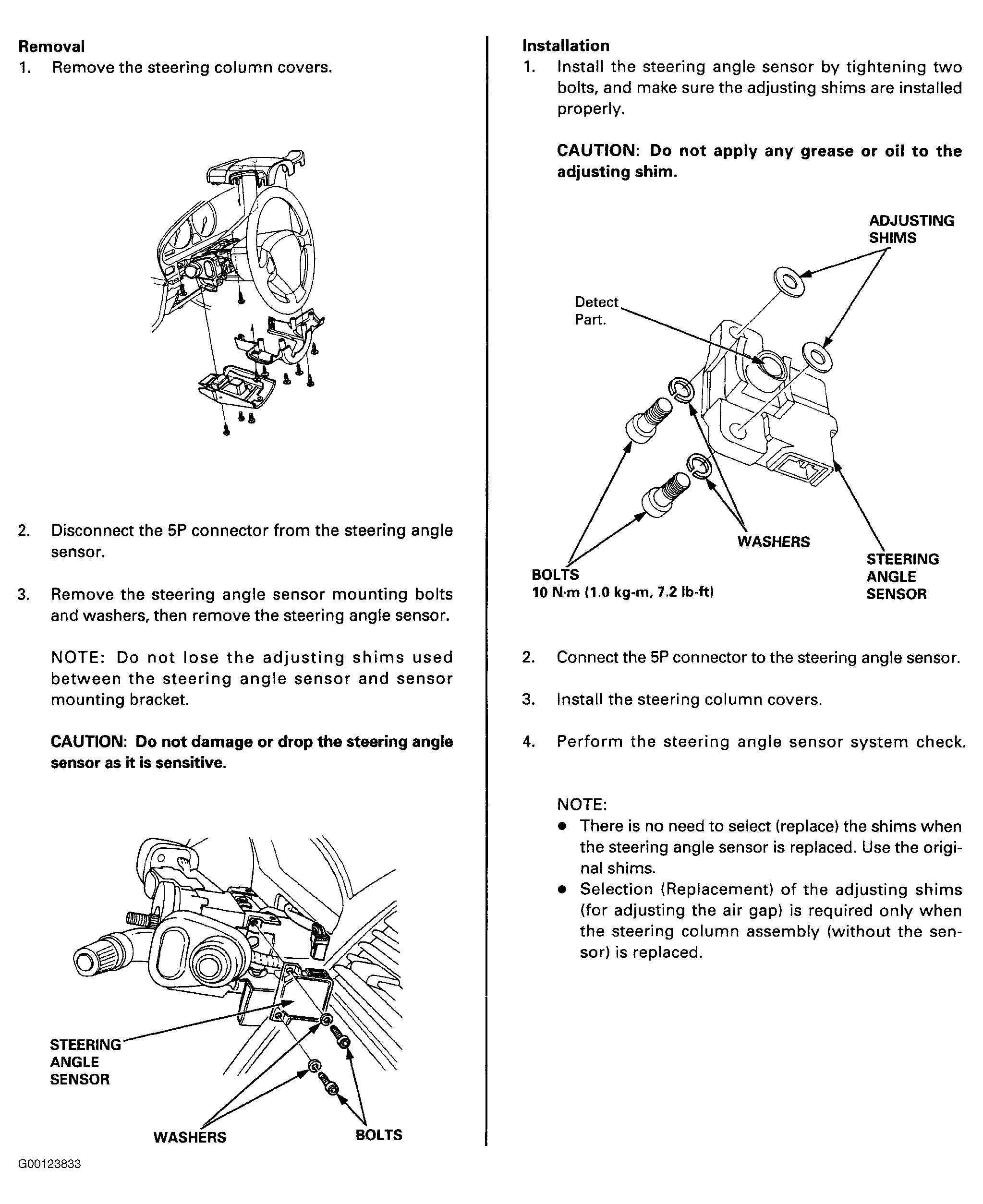

Fig 1: Steering Angle Sensor Removal & Installation
Courtesy of AMERICAN HONDA MOTOR CO., INC.

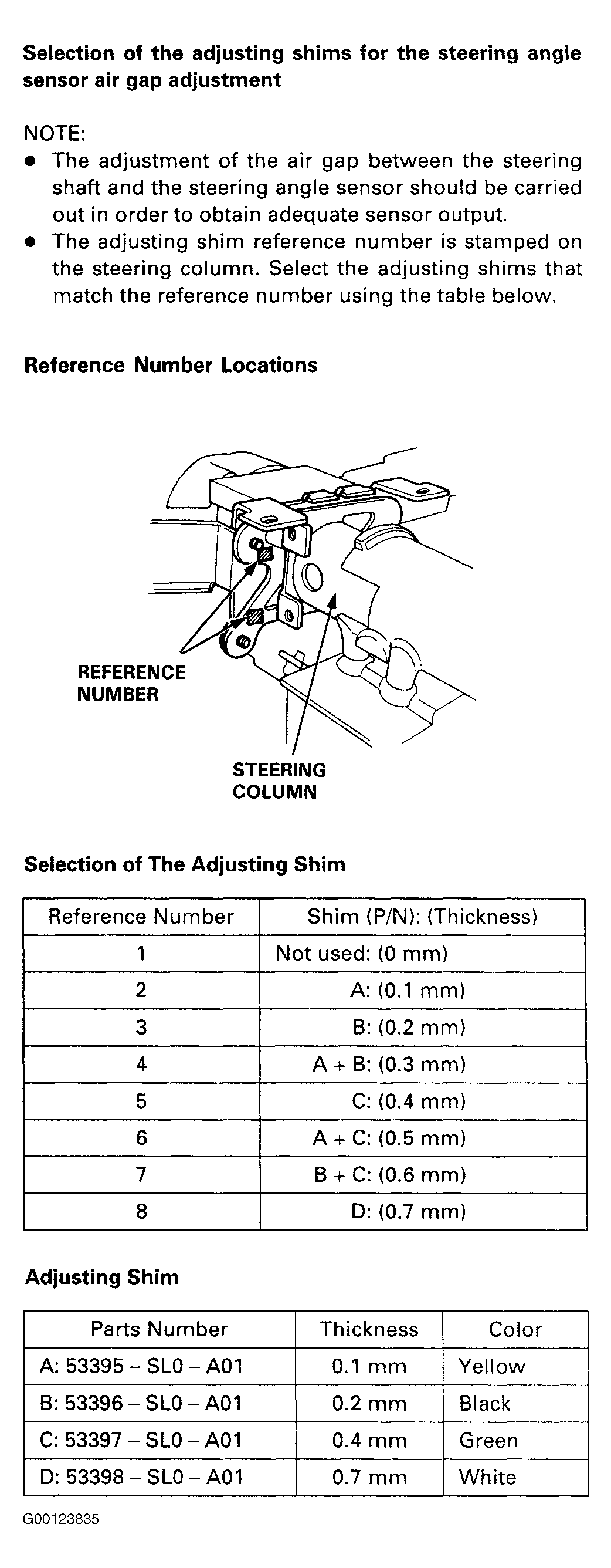

Fig 2: Adjusting Steering Angle Shims
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
