DTC P0106: Map Sensor (Mechanical)

If the scan tool indicates DTC P0106, a mechanical problem (vacuum leak) may exist in the Manifold Absolute Pressure (MAP) sensor system. See Fig 1 and Fig 2 .

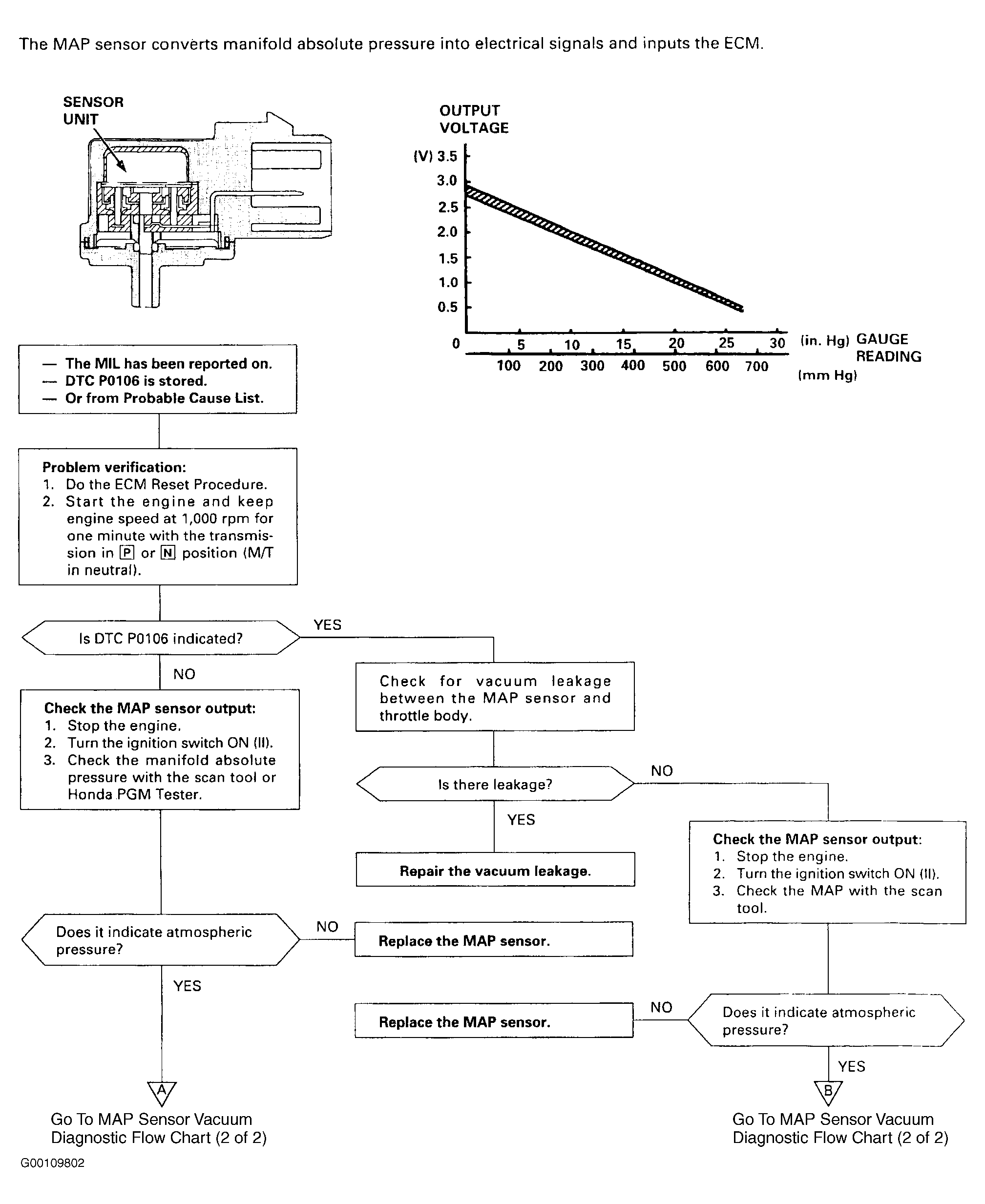

Fig 1: MAP Sensor Vacuum Diagnostic Flow Chart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

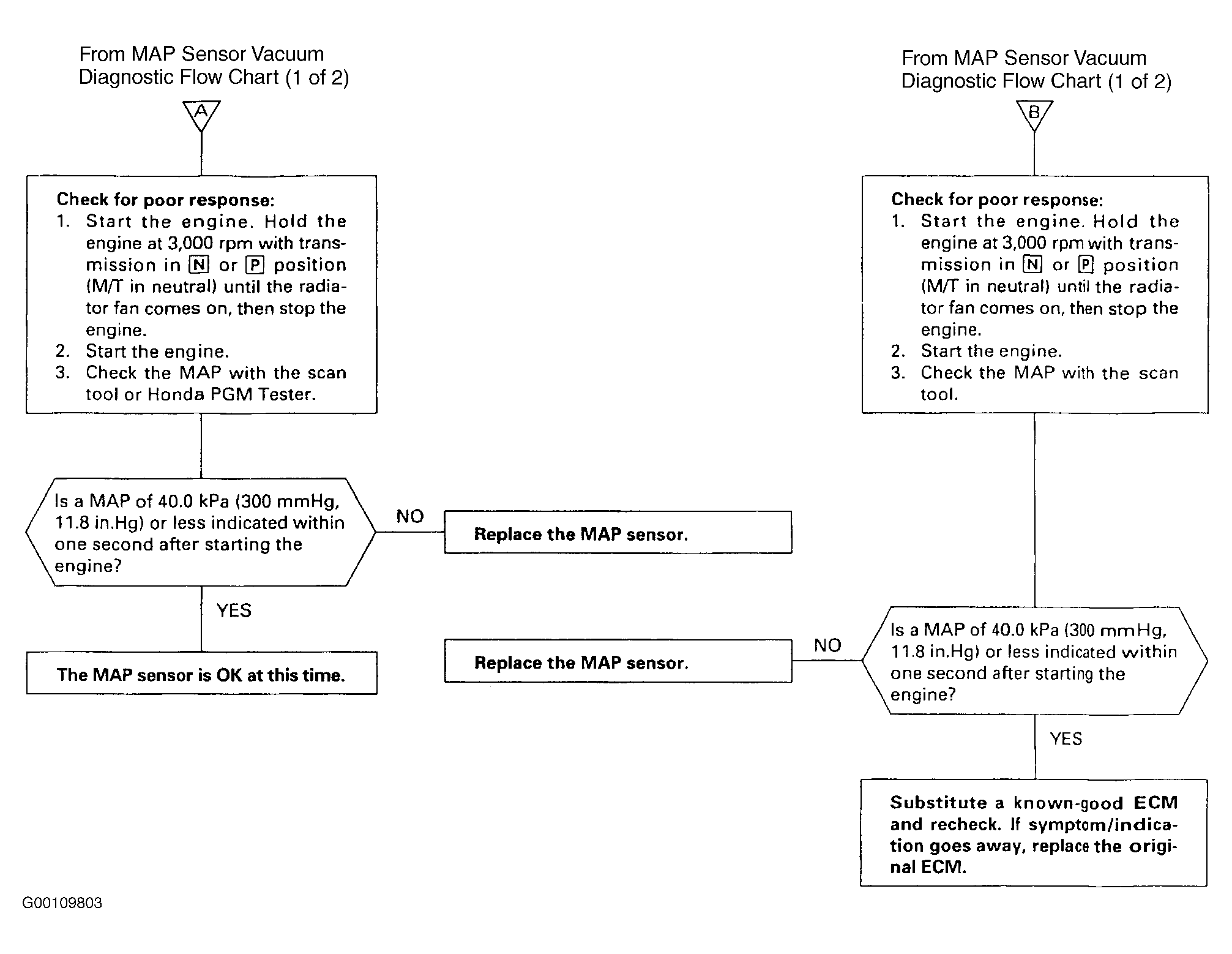

Fig 2: MAP Sensor Vacuum Diagnostic Flow Chart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
