Fuel Pump Resistor

For troubleshooting of the fuel pump resistor, see Fig 1 .

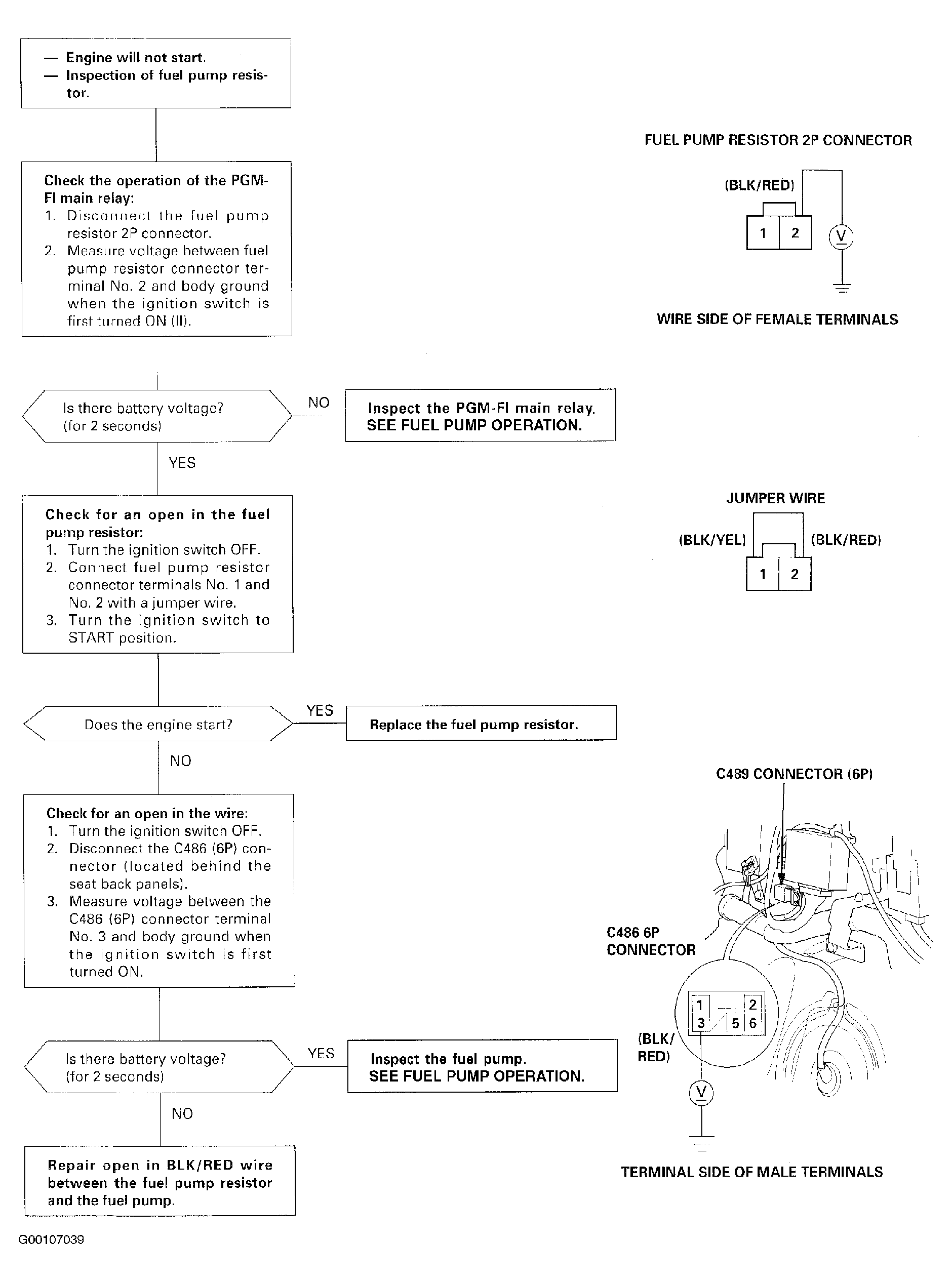

Fig 1: Fuel Pump Resistor Diagnostic Flow Chart
G00107039Courtesy of AMERICAN HONDA MOTOR CO., INC.
