Throttle Valve Control Motor Relay

To troubleshoot the throttle valve control motor relay, see Fig 1 and Fig 2 .

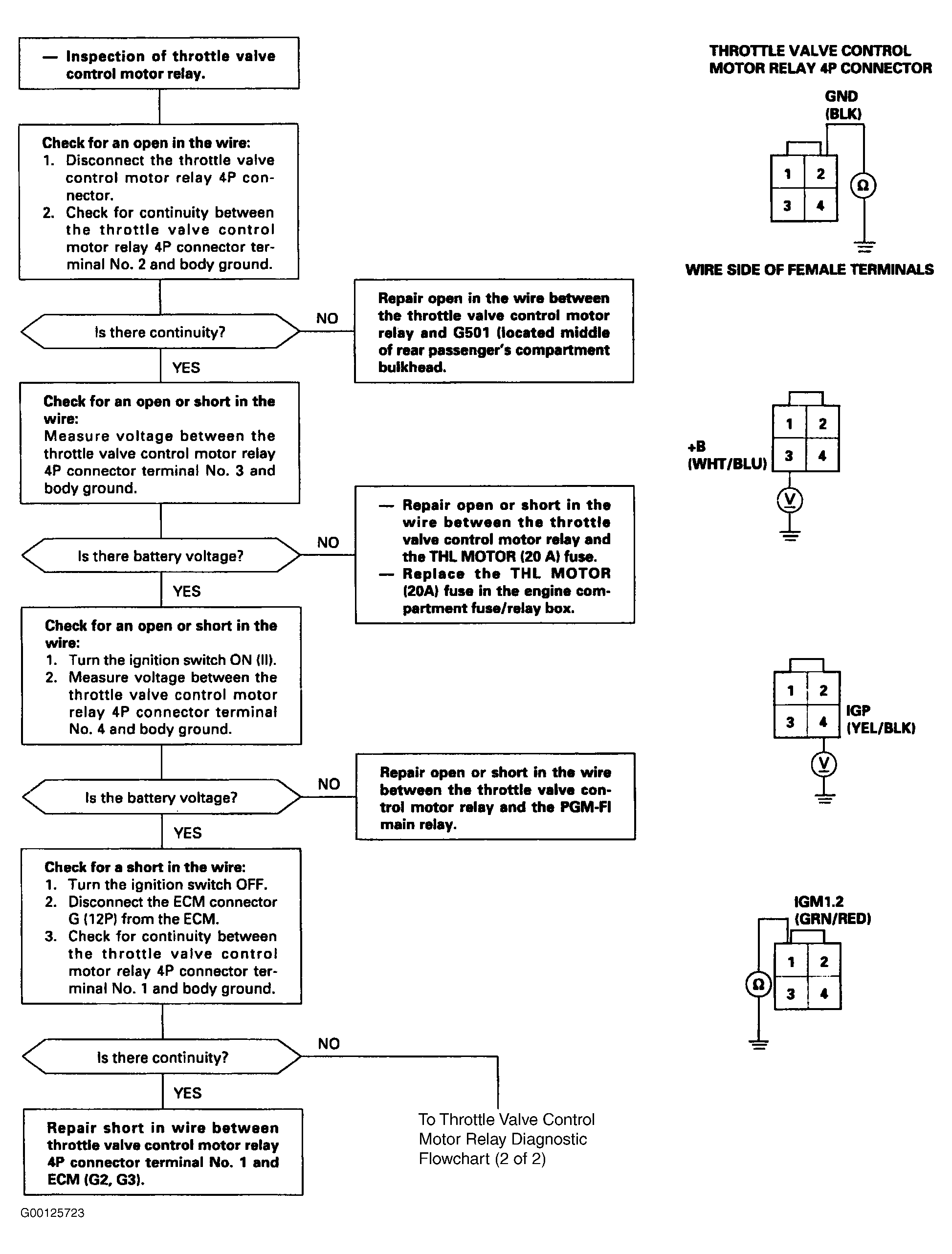

Fig 1: Throttle Valve Control Motor Relay Diagnostic Flowchart (1 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

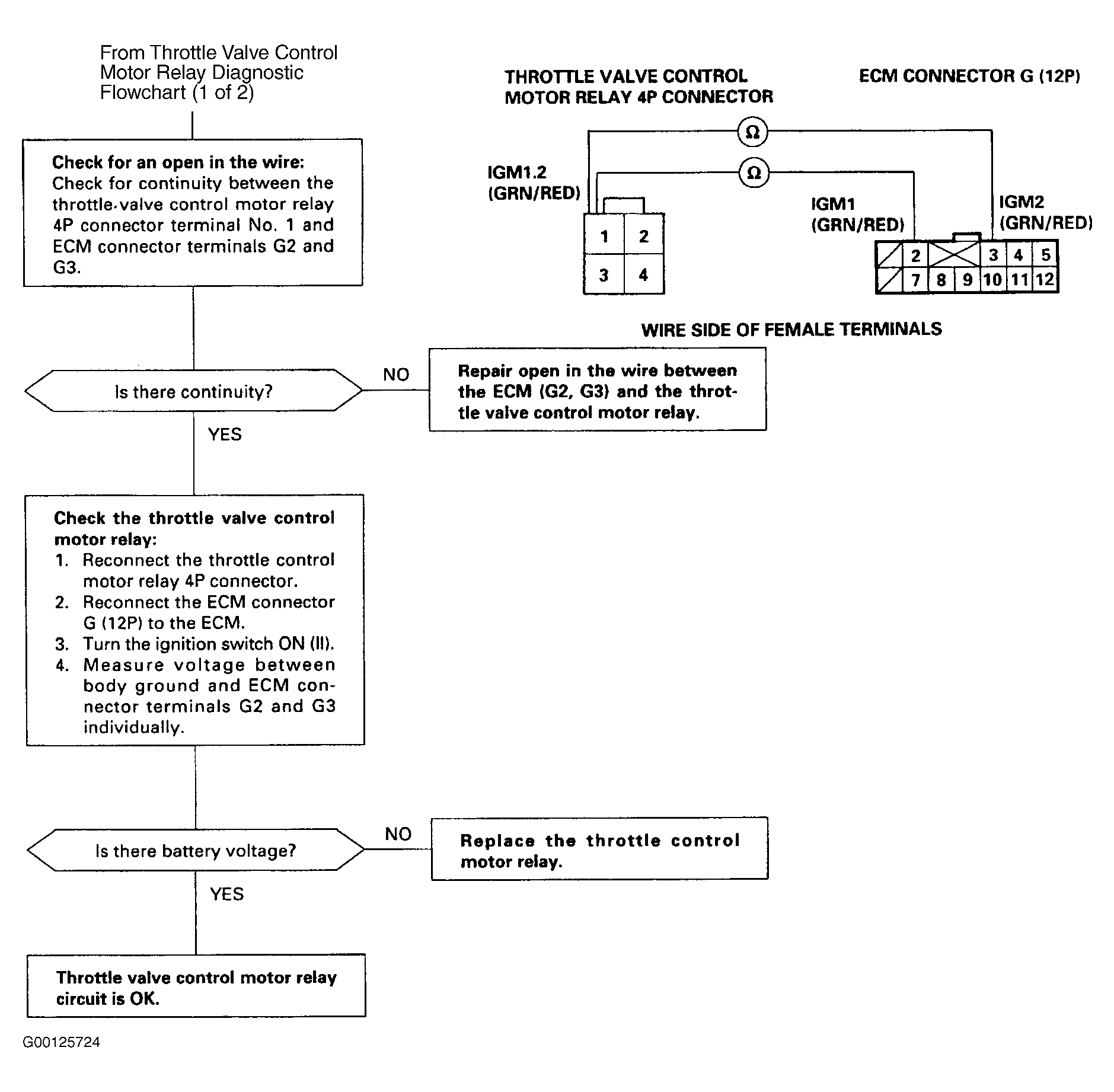

Fig 2: Throttle Valve Control Motor Relay Diagnostic Flowchart (2 Of 2)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
