Removal & Installation

  1. Disconnect the 8-P and 6-P connectors from the Ignition Control Module (ICM). See Fig 1 .
  2. Remove the two mounting bolts from the ignition control module.
  3. Slide the ignition control module out the front side.
  4. To install, reverse removal procedures.

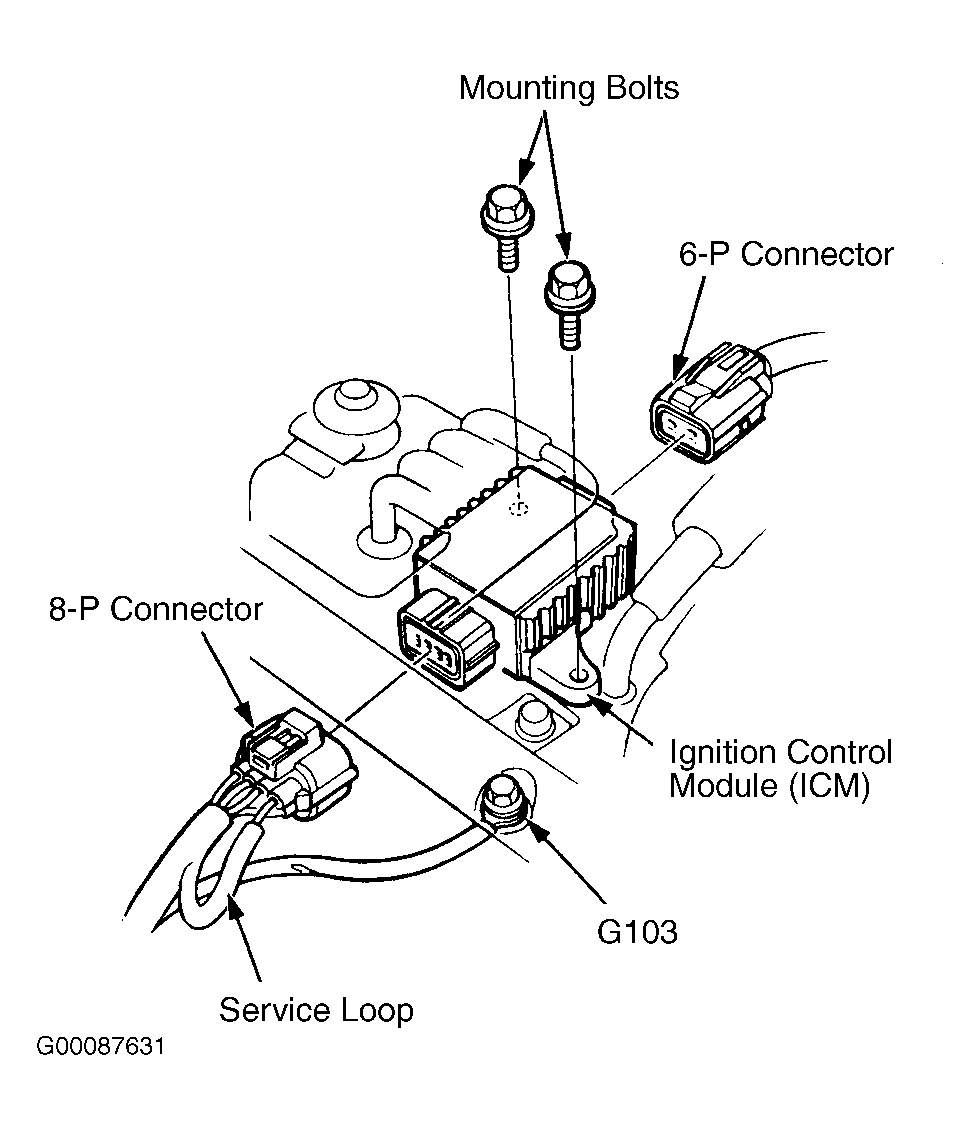

Fig 1: Removing Ignition Control Module
G00087631Courtesy of AMERICAN HONDA MOTOR CO., INC.
