PGM-FI Control System

NOTE: Components are grouped into two categories. The first category covers input devices, which control or produce voltage signals monitored by the ECM. See INPUT DEVICES  . The second category covers output signals, which are components controlled by the ECM. See OUTPUT SIGNALS  .

The Programmed Fuel Injection (PGM-FI) system controls the engine emission and performance functions as well as providing information to other vehicle systems. With the ignition switch in RUN or START, battery voltage is supplied from fuse No. 18 to the Engine Control Module (ECM) through the PGM-FI main relay and the Yellow/Black wires. Battery voltage is supplied at all times from fuse No. 33 and the White/Yellow wires to the ECM for memory functions. The ECM is grounded through the Black wires to ground G101.

The ECM is self-diagnosing and monitors the sensors for irregular signals. The ECM is programmed with settings for fuel injector discharge duration at various engine speeds and manifold pressures. Discharge duration is modified by signals sent from various sensors to determine final discharge duration. If the engine is cold, the A/C compressor is on, the transmission is in gear (A/T only) or the alternator is charging, the ECM sends signal to the drive by wire system to maintain correct idle speed. The ECM is programmed with settings for basic ignition timing at various engine speeds and manifold pressures. Ignition timing is also adjusted for coolant temperature. A knock control system retards ignition timing when the knock sensor detects detonation. For PGM-FI inputs and outputs, see Fig 1 . The PGM-FI also features the following:

For component locations, see Fig 2 -Fig 7 . For circuit diagram, see Fig 8 -Fig 20 .

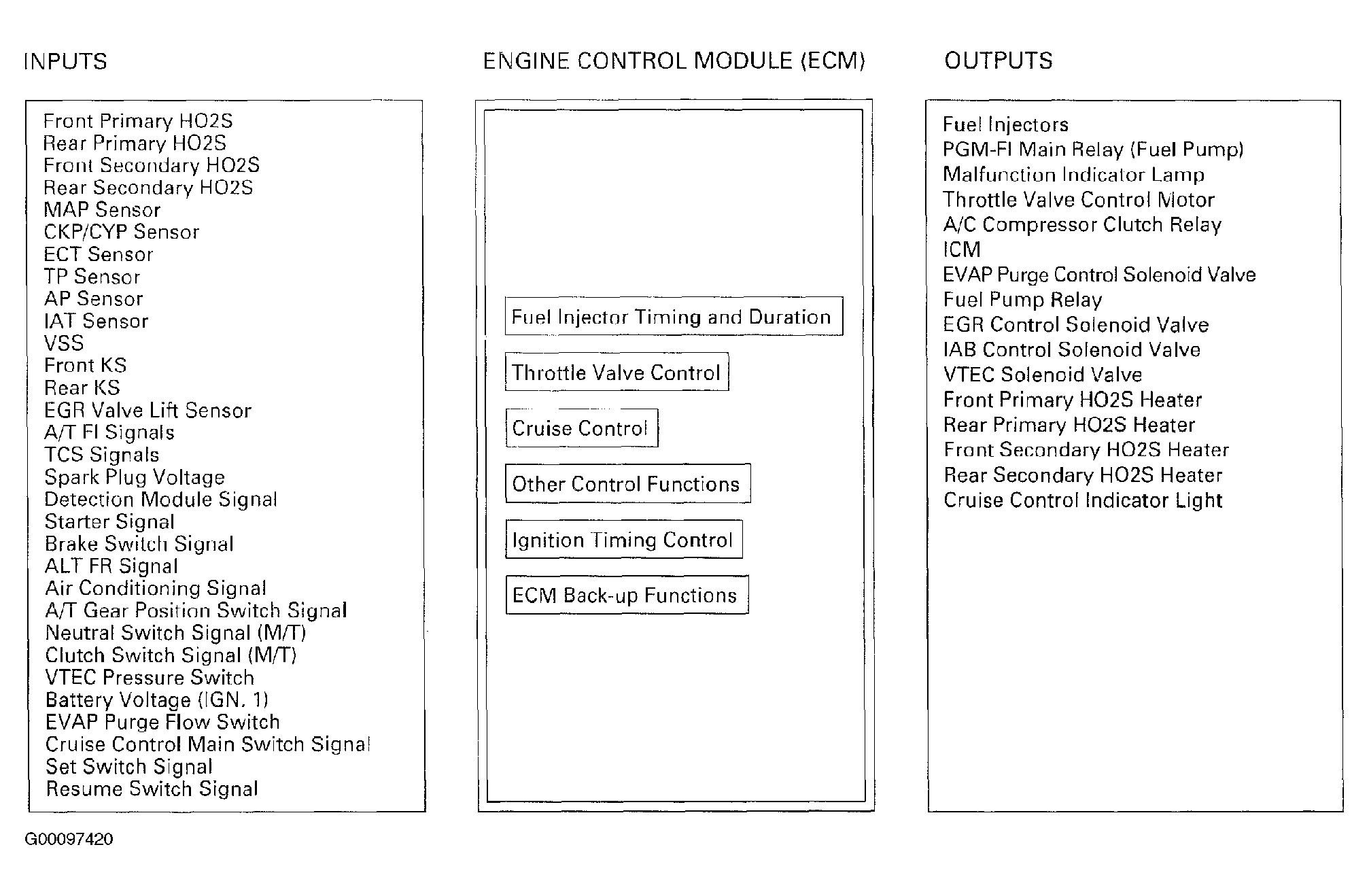

Fig 1: Identifying PGM-FI Inputs & Outputs
G00097420Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Locating PGM-FI Components (1 Of 6)
G00097421Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 3: Locating PGM-FI Components (2 Of 6)
G00097422Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 4: Locating PGM-FI Components (3 Of 6)
G00097423Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 5: Locating PGM-FI Components (4 Of 6)
G00097424Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 6: Locating PGM-FI Components (5 Of 6)
G00097425Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 7: Locating PGM-FI Components (6 Of 6)
G00097426Courtesy of AMERICAN HONDA MOTOR CO., INC.

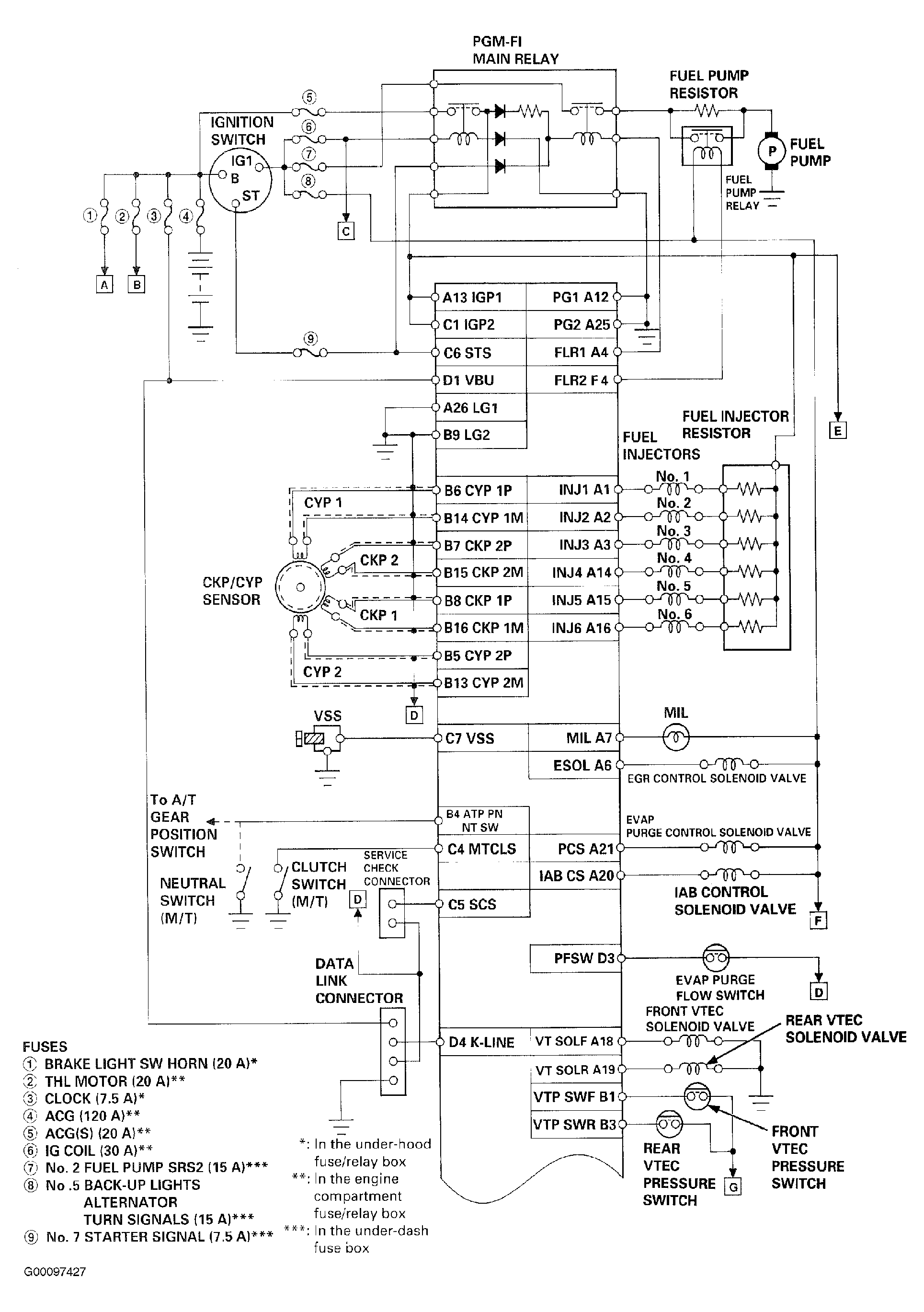

Fig 8: PGM-FI Circuit Schematic (1 Of 13)
G00097427Courtesy of AMERICAN HONDA MOTOR CO., INC.

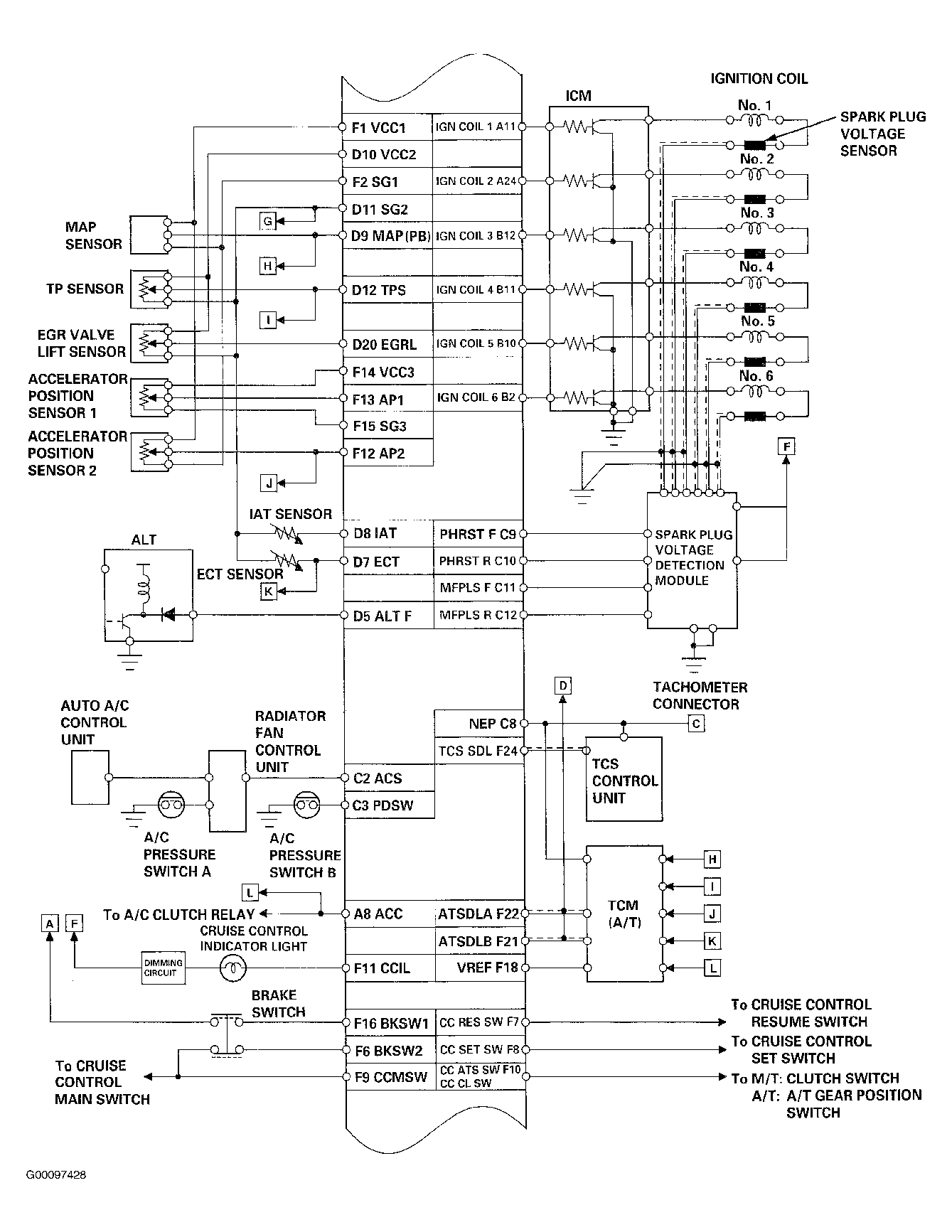

Fig 9: PGM-FI Circuit Schematic (2 Of 13)
G00097428Courtesy of AMERICAN HONDA MOTOR CO., INC.

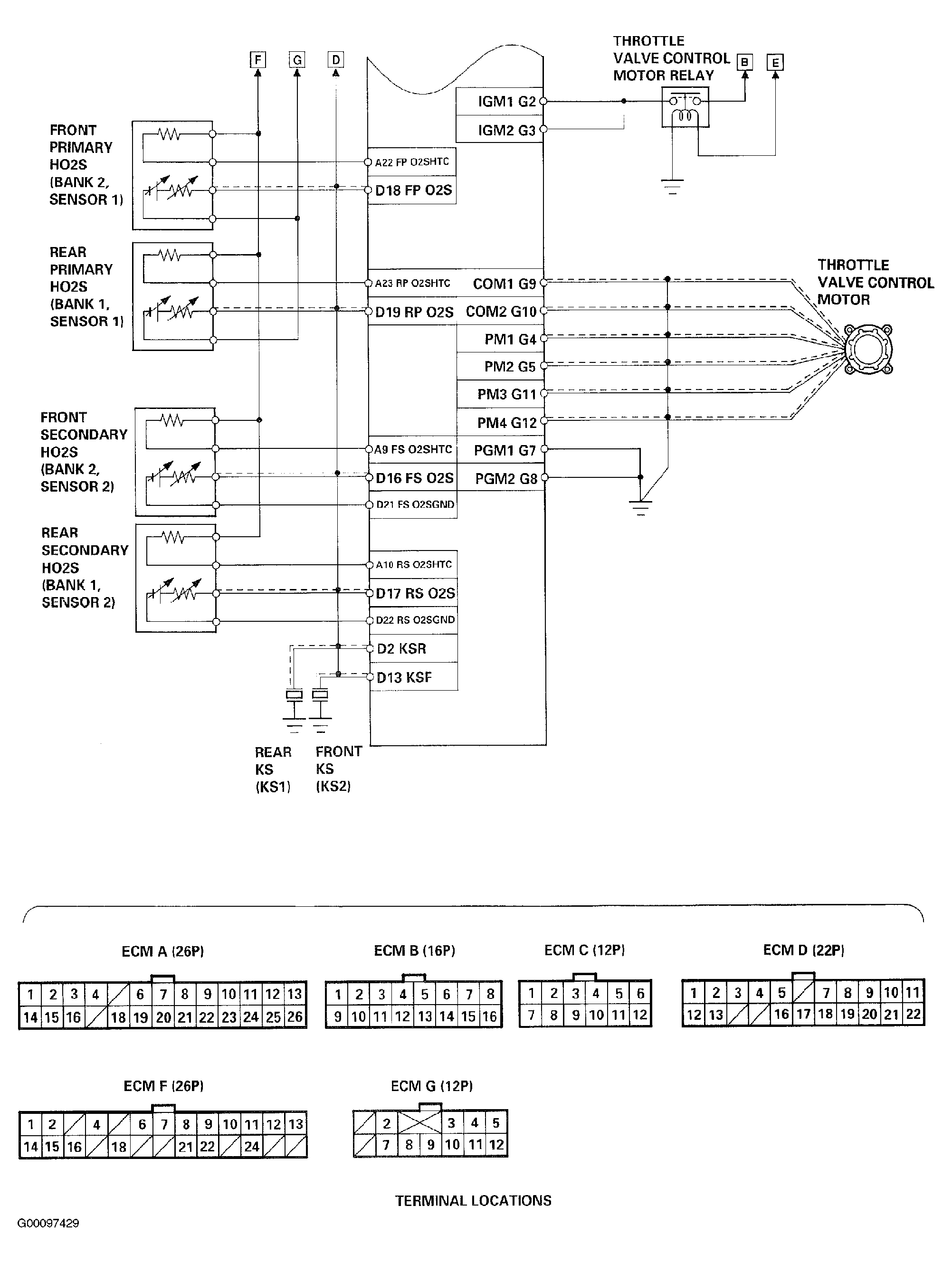

Fig 10: PGM-FI Circuit Schematic (3 Of 13)
G00097429Courtesy of AMERICAN HONDA MOTOR CO., INC.

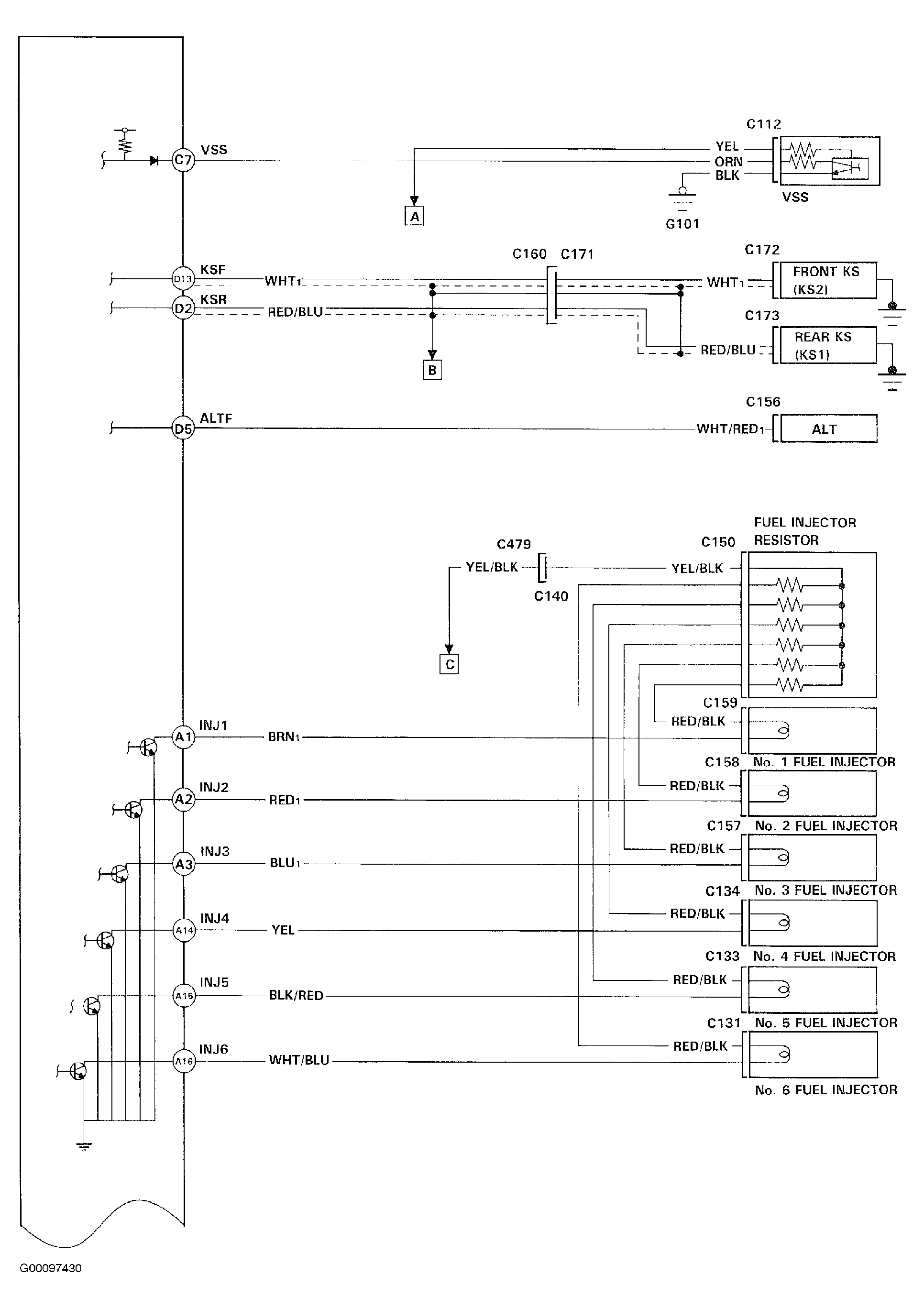

Fig 11: PGM-FI Circuit Schematic (4 Of 13)
G00097430Courtesy of AMERICAN HONDA MOTOR CO., INC.

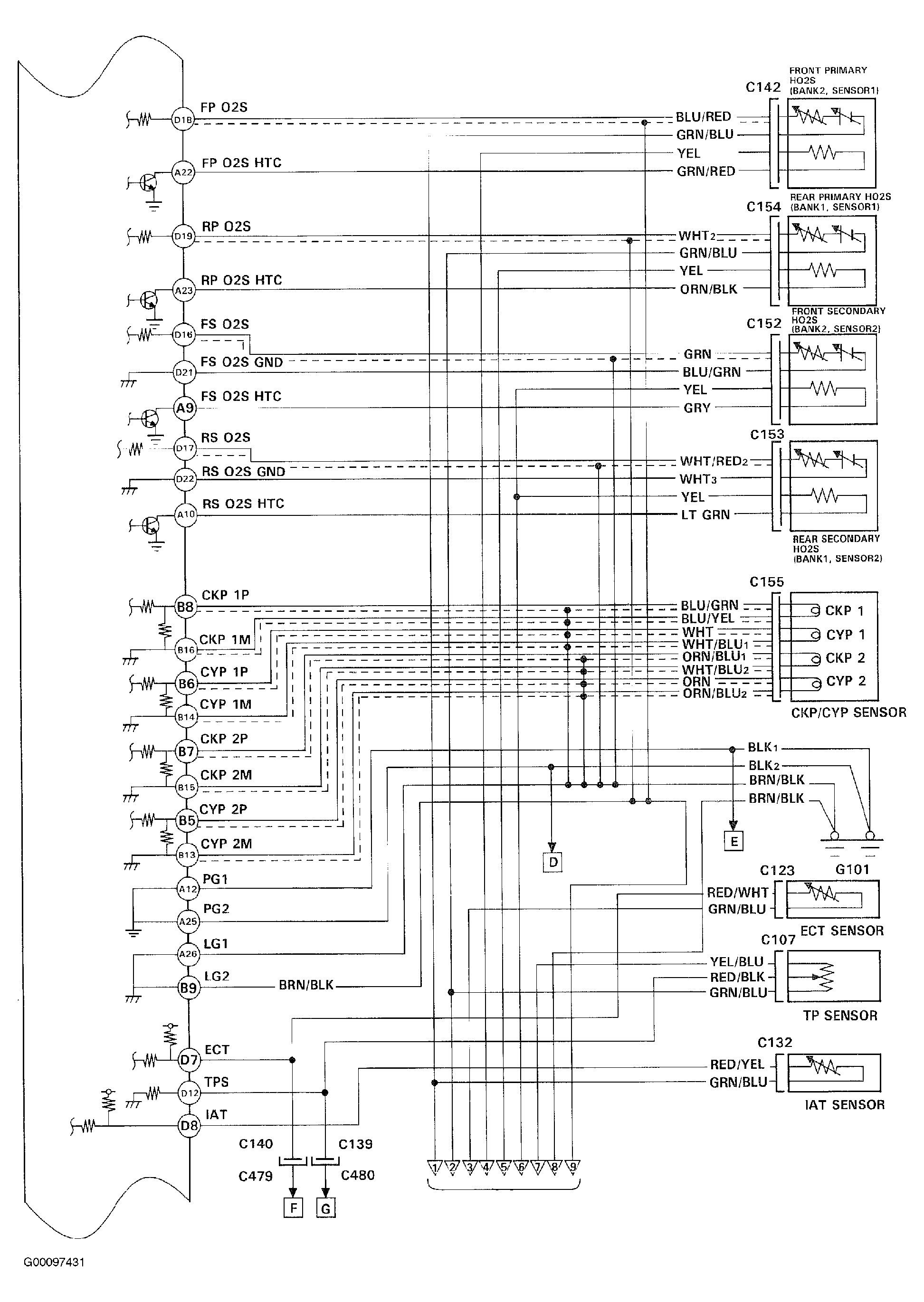

Fig 12: PGM-FI Circuit Schematic (5 Of 13)
G00097431Courtesy of AMERICAN HONDA MOTOR CO., INC.

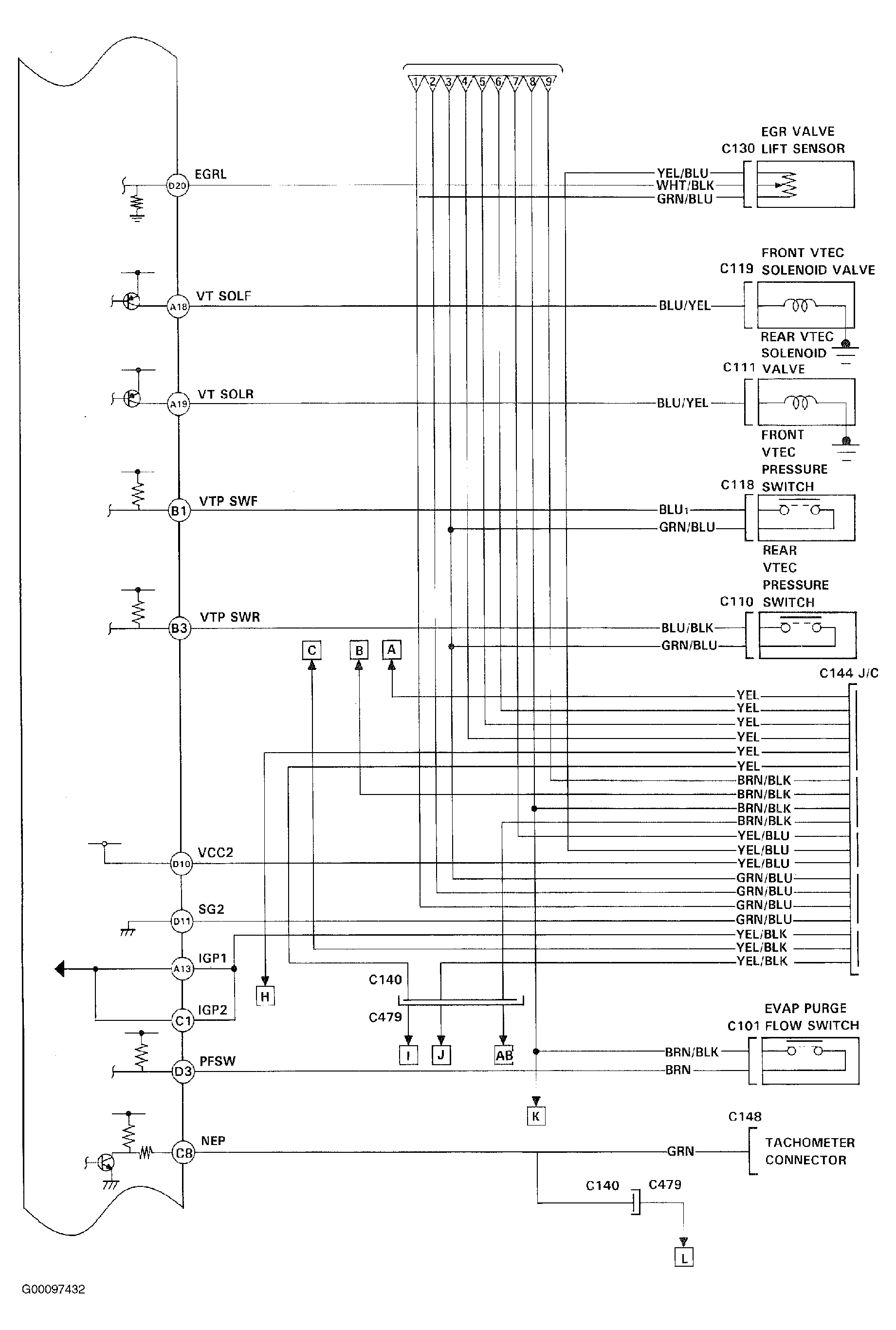

Fig 13: PGM-FI Circuit Schematic (6 Of 13)
G00097432Courtesy of AMERICAN HONDA MOTOR CO., INC.

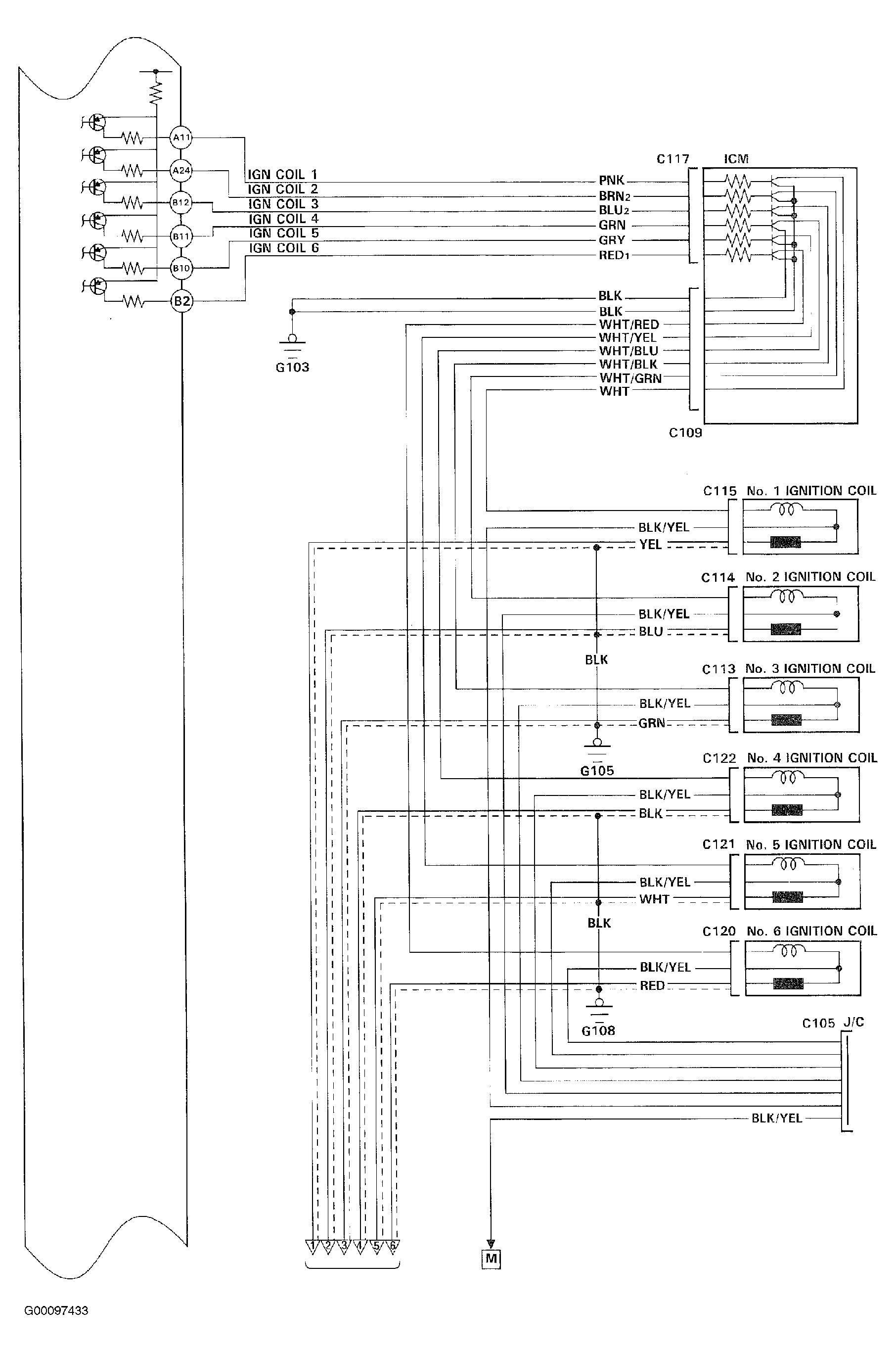

Fig 14: PGM-FI Circuit Schematic (7 Of 13)
G00097433Courtesy of AMERICAN HONDA MOTOR CO., INC.

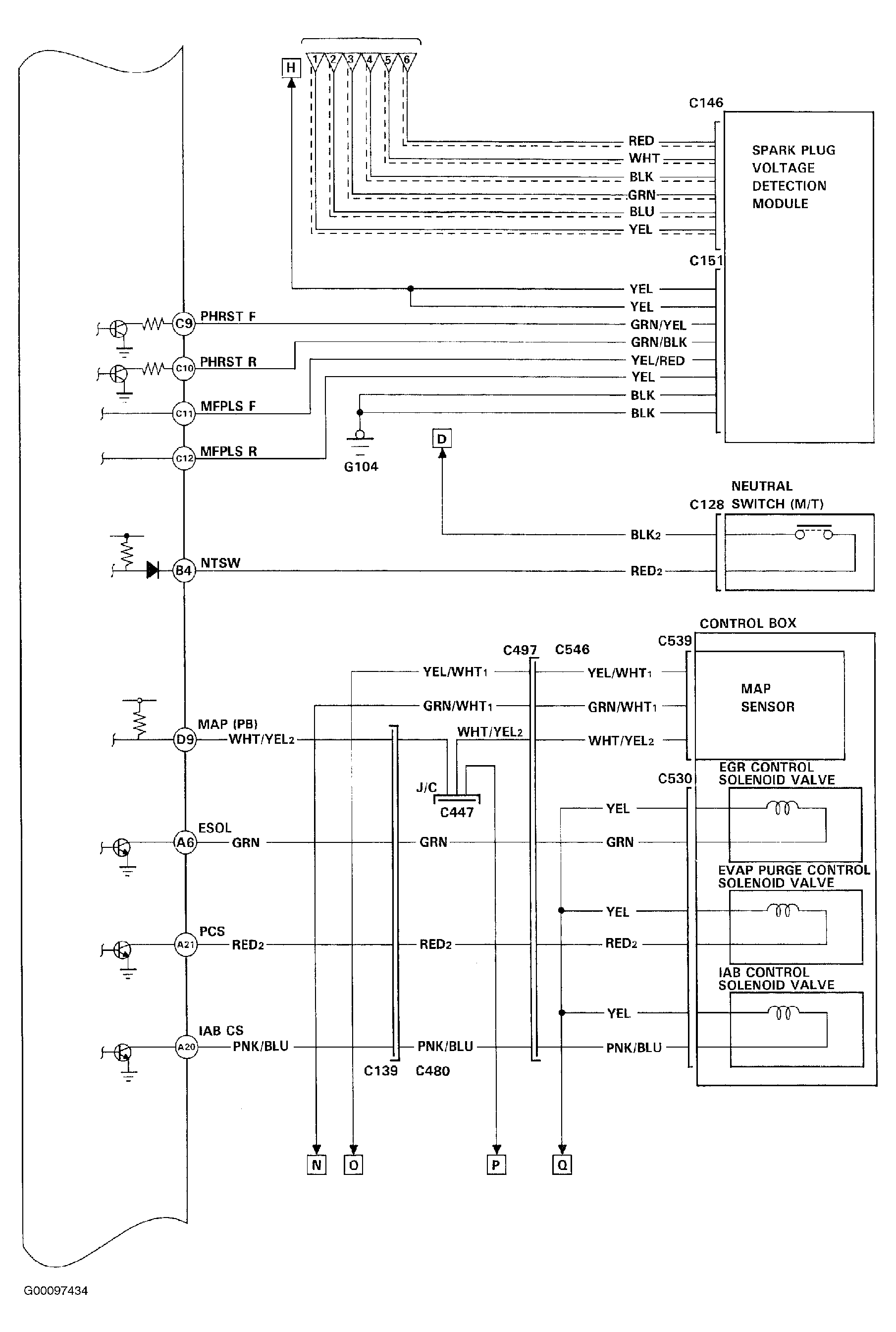

Fig 15: PGM-FI Circuit Schematic (8 Of 13)
G00097434Courtesy of AMERICAN HONDA MOTOR CO., INC.

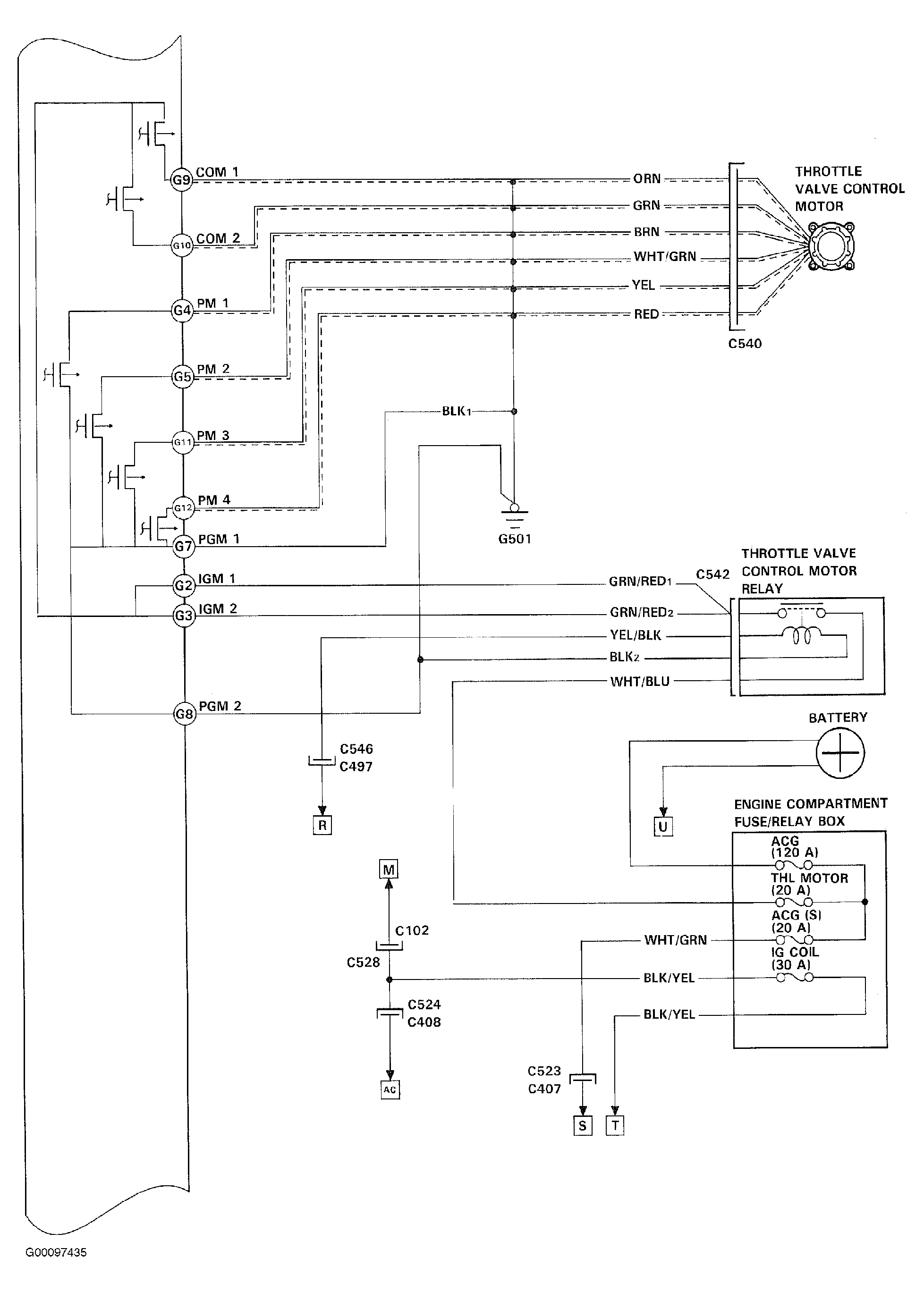

Fig 16: PGM-FI Circuit Schematic (9 Of 13)
G00097435Courtesy of AMERICAN HONDA MOTOR CO., INC.

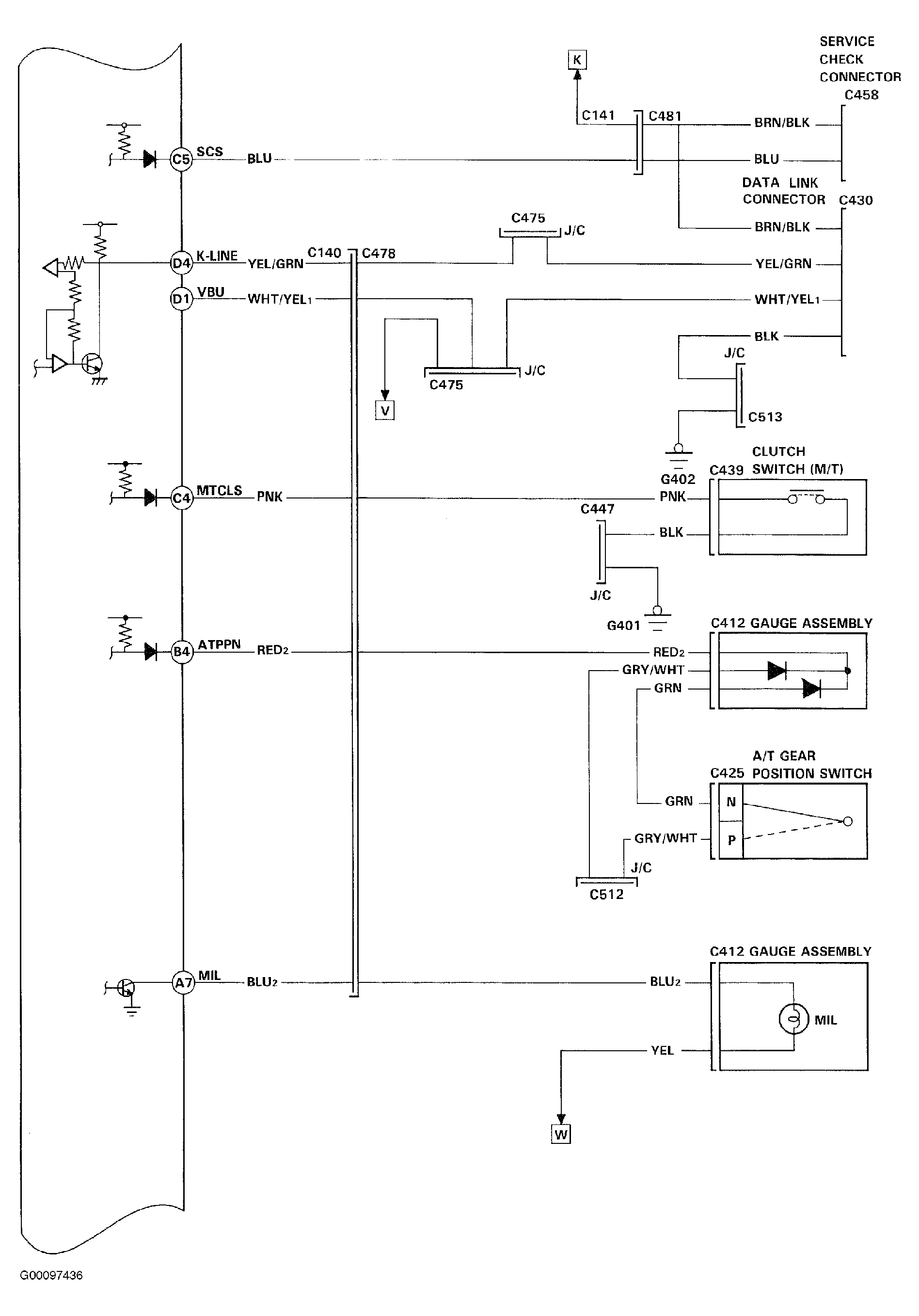

Fig 17: PGM-FI Circuit Schematic (10 Of 13)
G00097436Courtesy of AMERICAN HONDA MOTOR CO., INC.

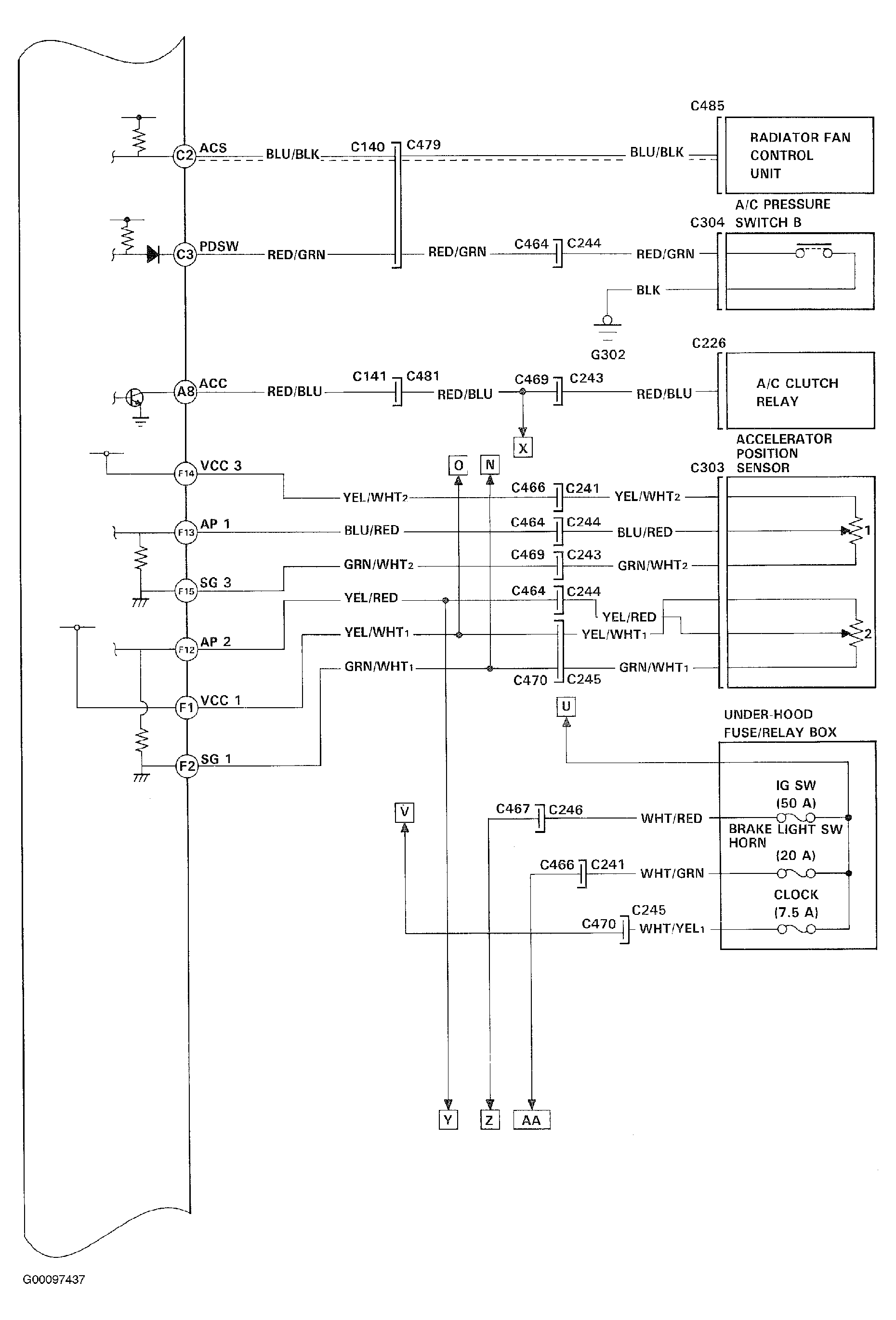

Fig 18: PGM-FI Circuit Schematic (11 Of 13)
G00097437Courtesy of AMERICAN HONDA MOTOR CO., INC.

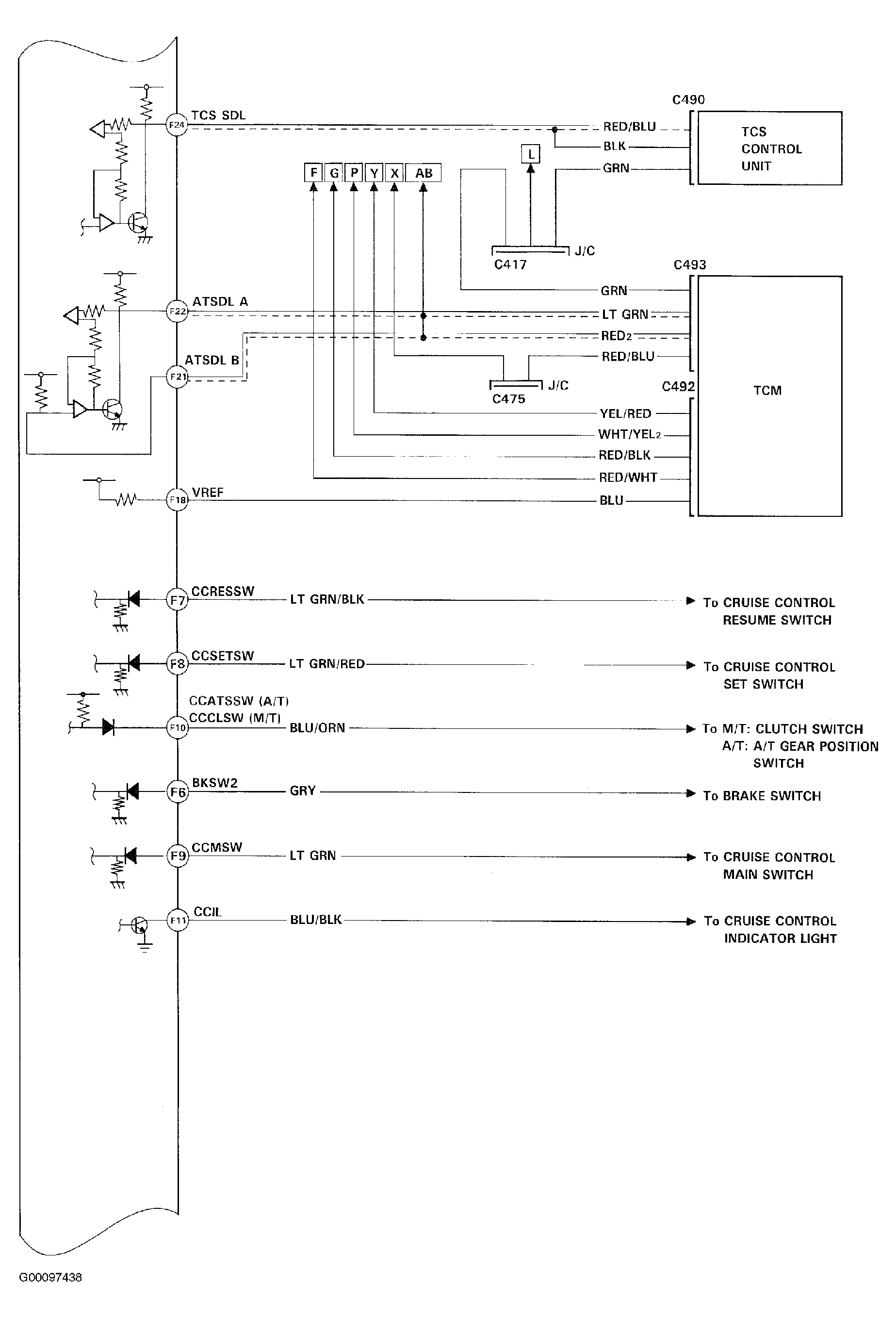

Fig 19: PGM-FI Circuit Schematic (12 Of 13)
G00097438Courtesy of AMERICAN HONDA MOTOR CO., INC.

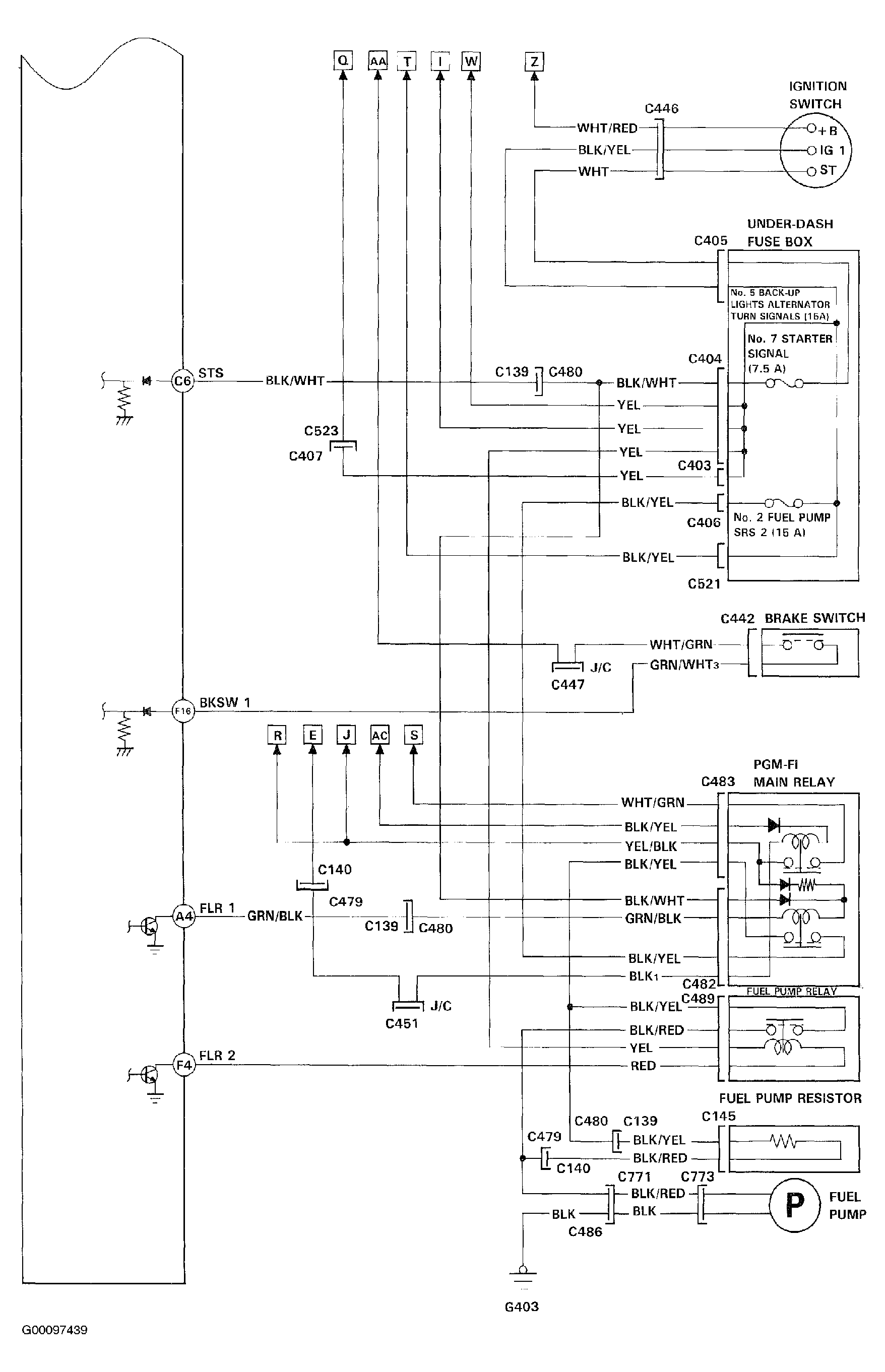

Fig 20: PGM-FI Circuit Schematic (13 Of 13)
G00097439Courtesy of AMERICAN HONDA MOTOR CO., INC.
