Traction Control System (TCS)

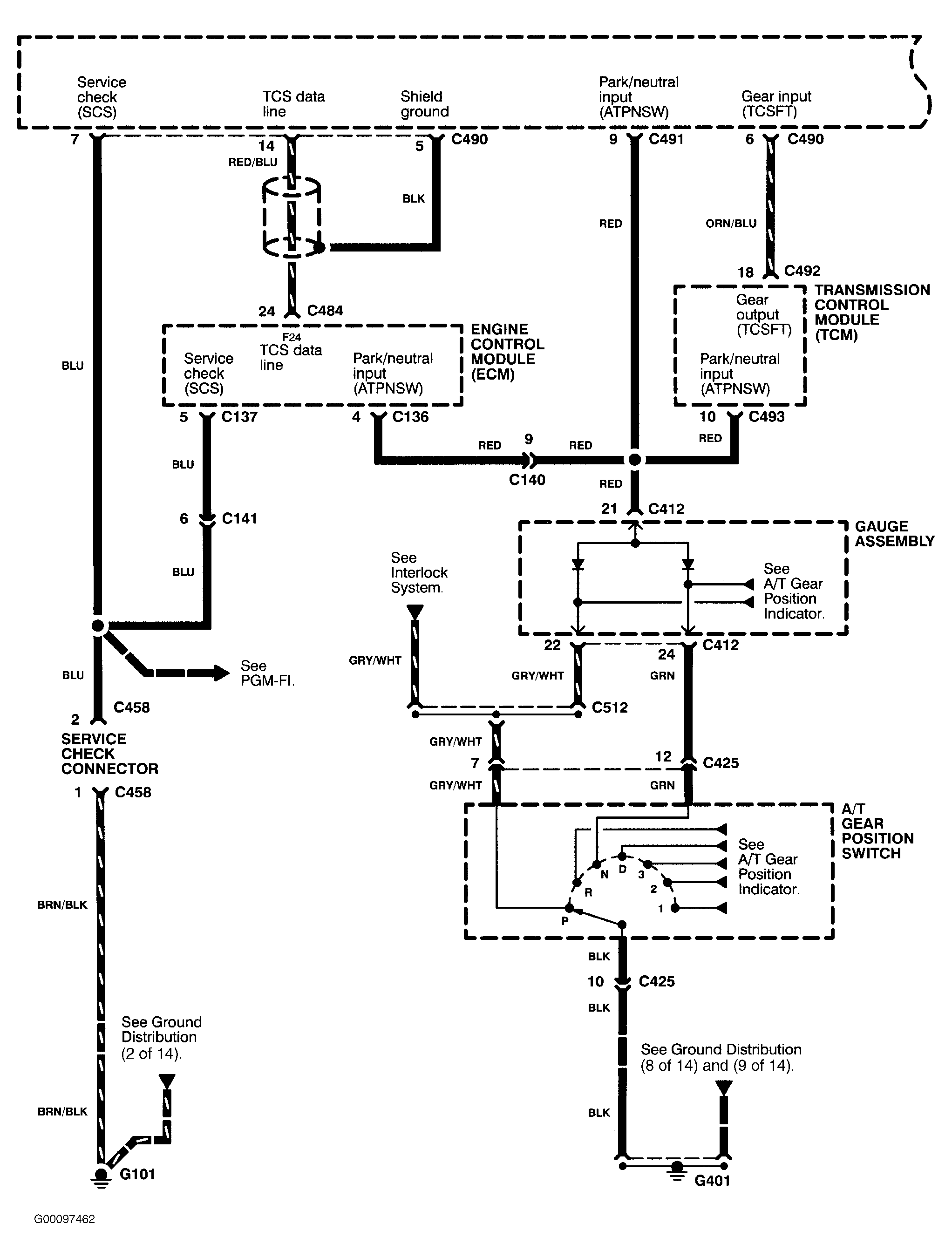

Fig 1: Traction Control System (TCS) (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

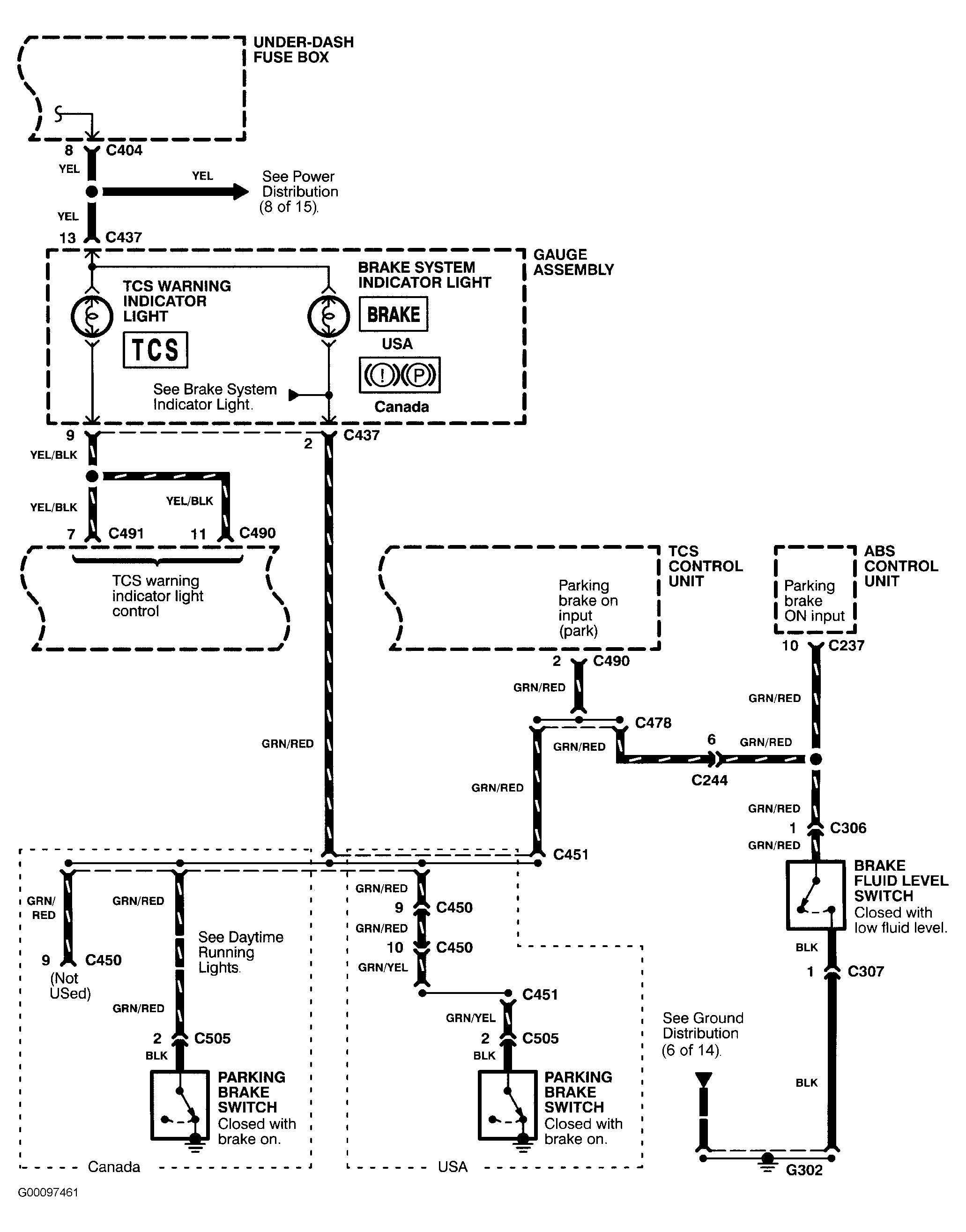

Fig 2: Traction Control System (TCS) (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

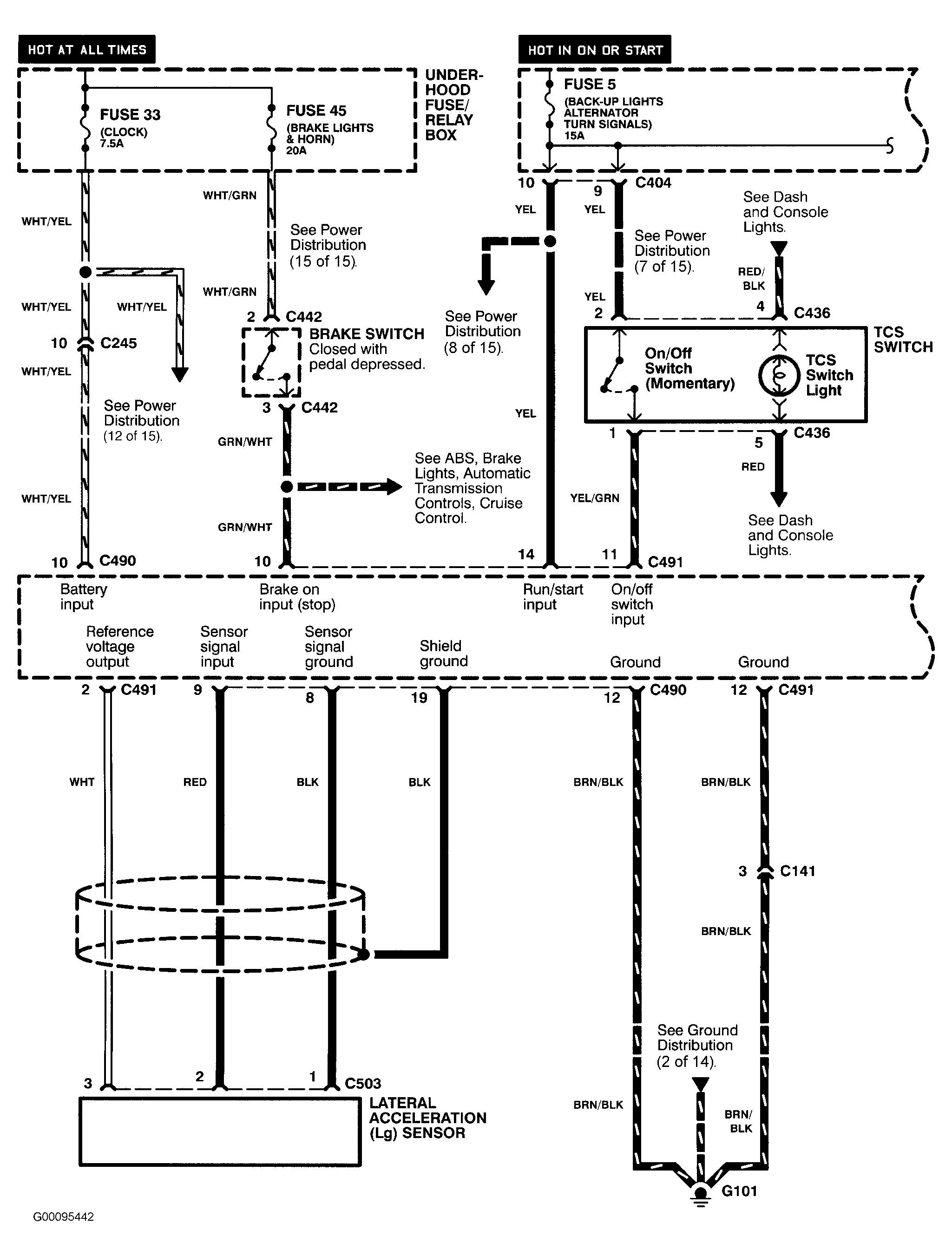

Fig 3: Traction Control System (TCS) (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

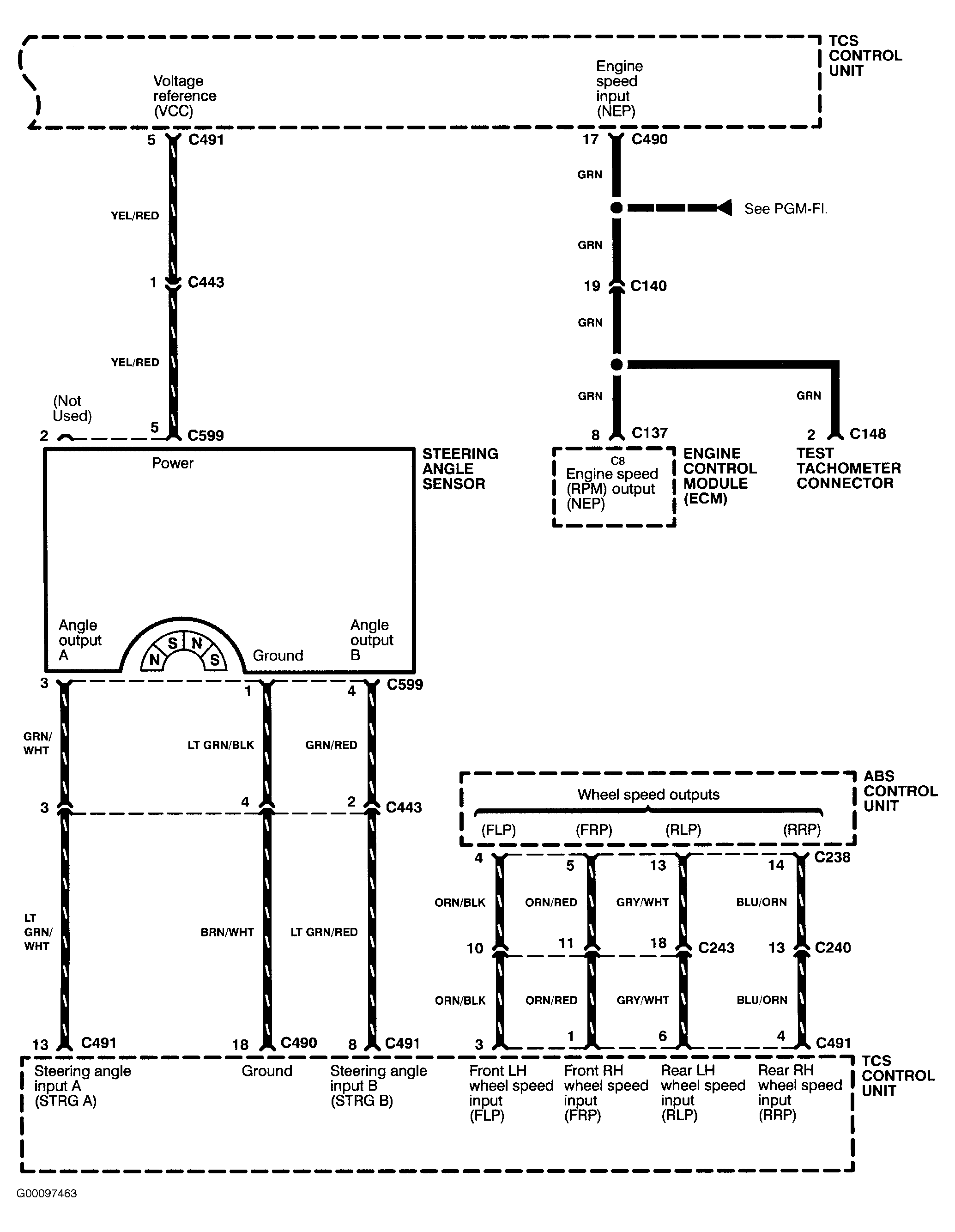

Fig 4: Traction Control System (TCS) (4 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
