Diagnostic Trouble Code Definitions

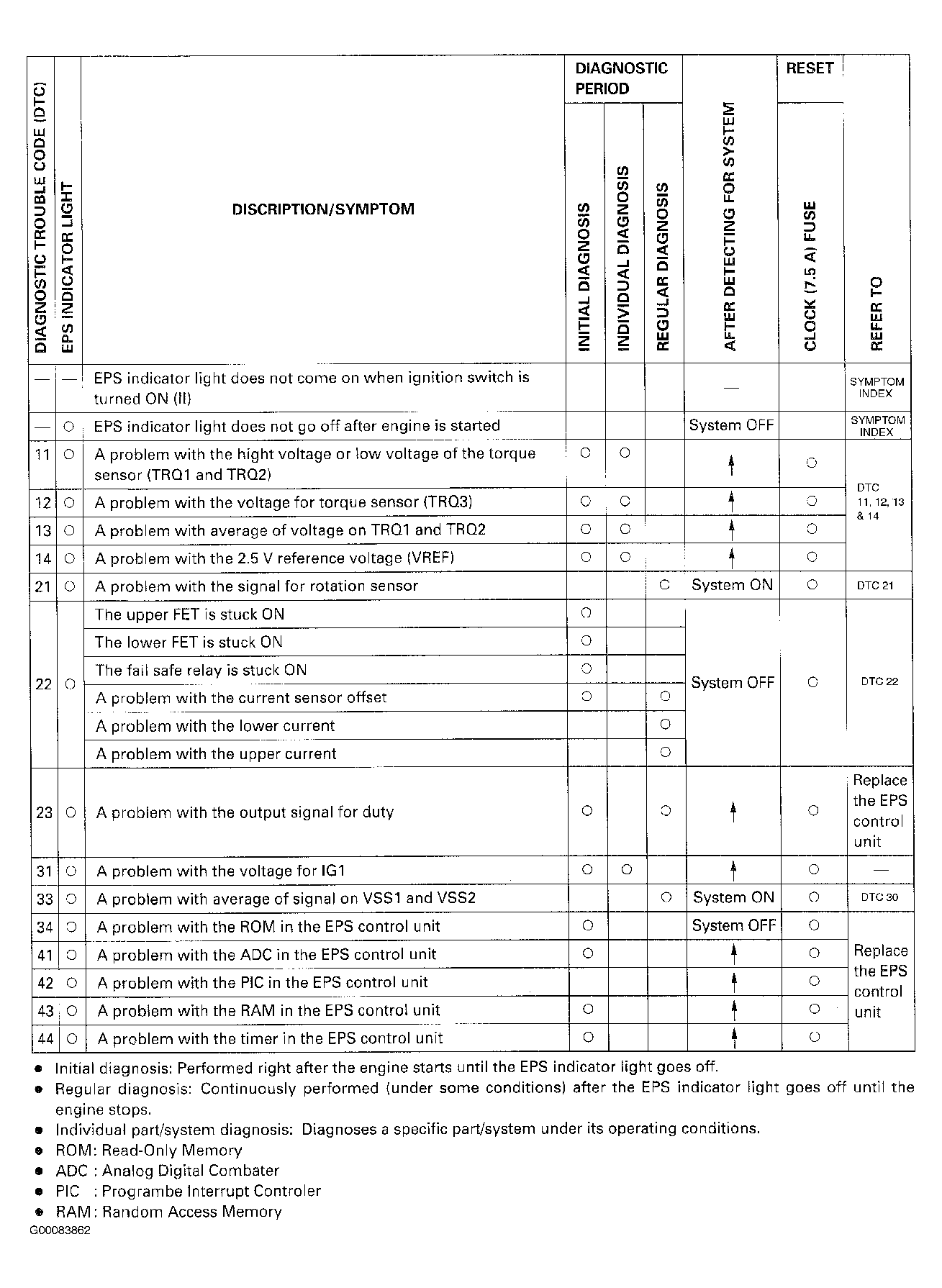

Fig 1: DTC & Symptom Chart

Courtesy of AMERICAN HONDA MOTOR CO., INC.

DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC	Description
DTC 11, 12, 13 &14	TORQUE SENSOR DIAGNOSIS
DTC 21	ROTATION SENSOR DIAGNOSIS
DTC 22	POWER UNIT DIAGNOSIS
DTC 33	VSS & A/T SPEED SENSOR/PULSE UNIT (M/T) DIAGNOSIS
