Retrieving Trouble Codes

Connect SCS Service Connector (07PAZ-0010100) to 2-pin service check connector located under glove box. Turn ignition switch to ON position (without starting engine). ABS warning light comes on for a 2-second bulb check. Record blinking ABS warning light sequence. See Fig 1.
After ignition is turned on, ABS warning light will turn on for 2 seconds, then pause for 2 seconds before blinking first DTC. First code number indicates main code and second code number indicates sub code. Three DTCs can be stored at once. To recheck sequence, turn ignition off and then turn it on again. After DTCs have been retrieved, conduct appropriate test procedures outlined in flow charts. See ABS SELF-DIAGNOSTIC FLOW CHARTS .

Fig 1: Identifying Diagnostic Trouble Codes (DTCs) ABS Warning Light Flash Sequence

Courtesy of AMERICAN HONDA MOTOR CO., INC.

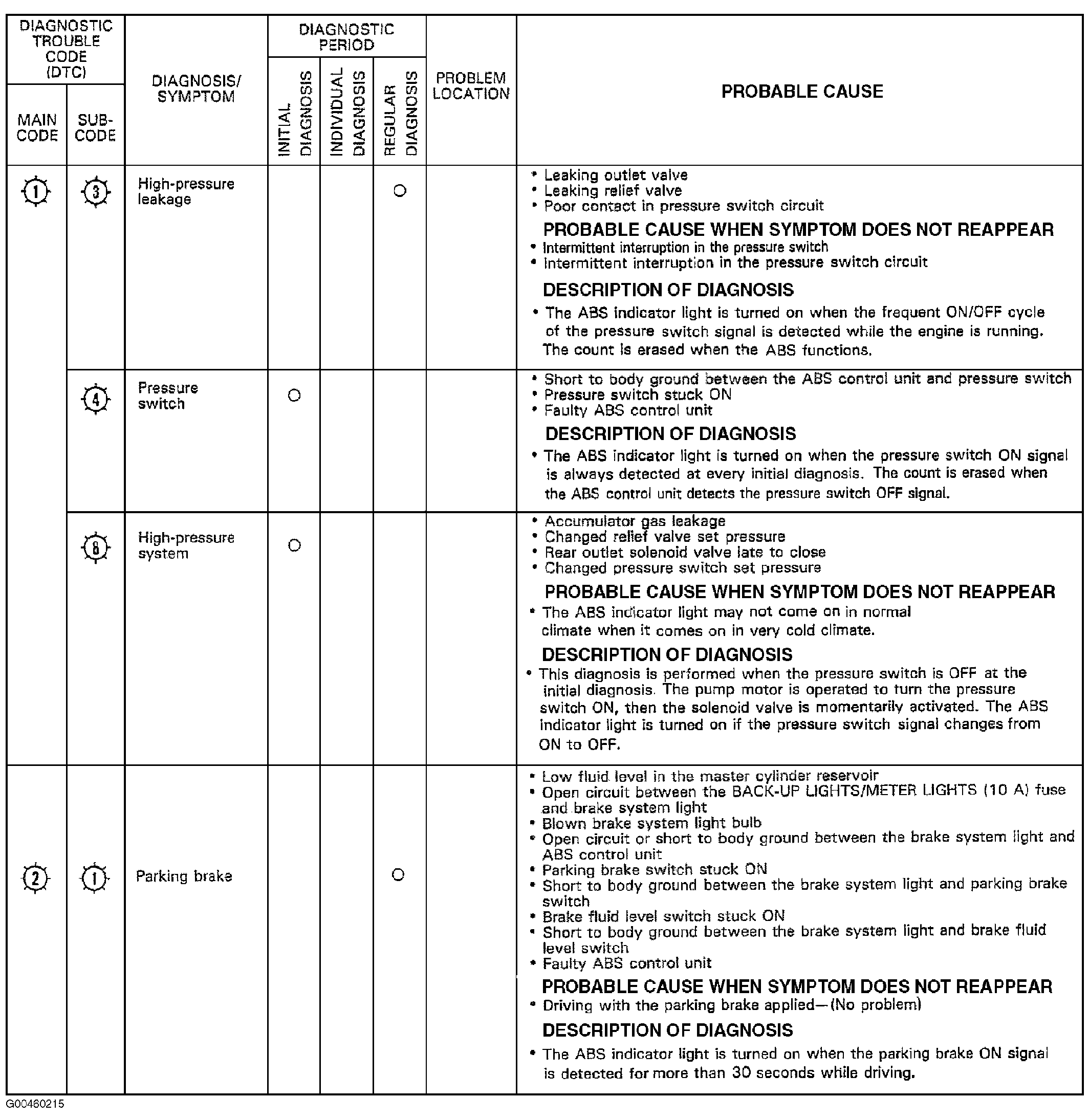

Fig 2: ABS Warning Light Flash & Symptom Diagnosis Chart (1 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

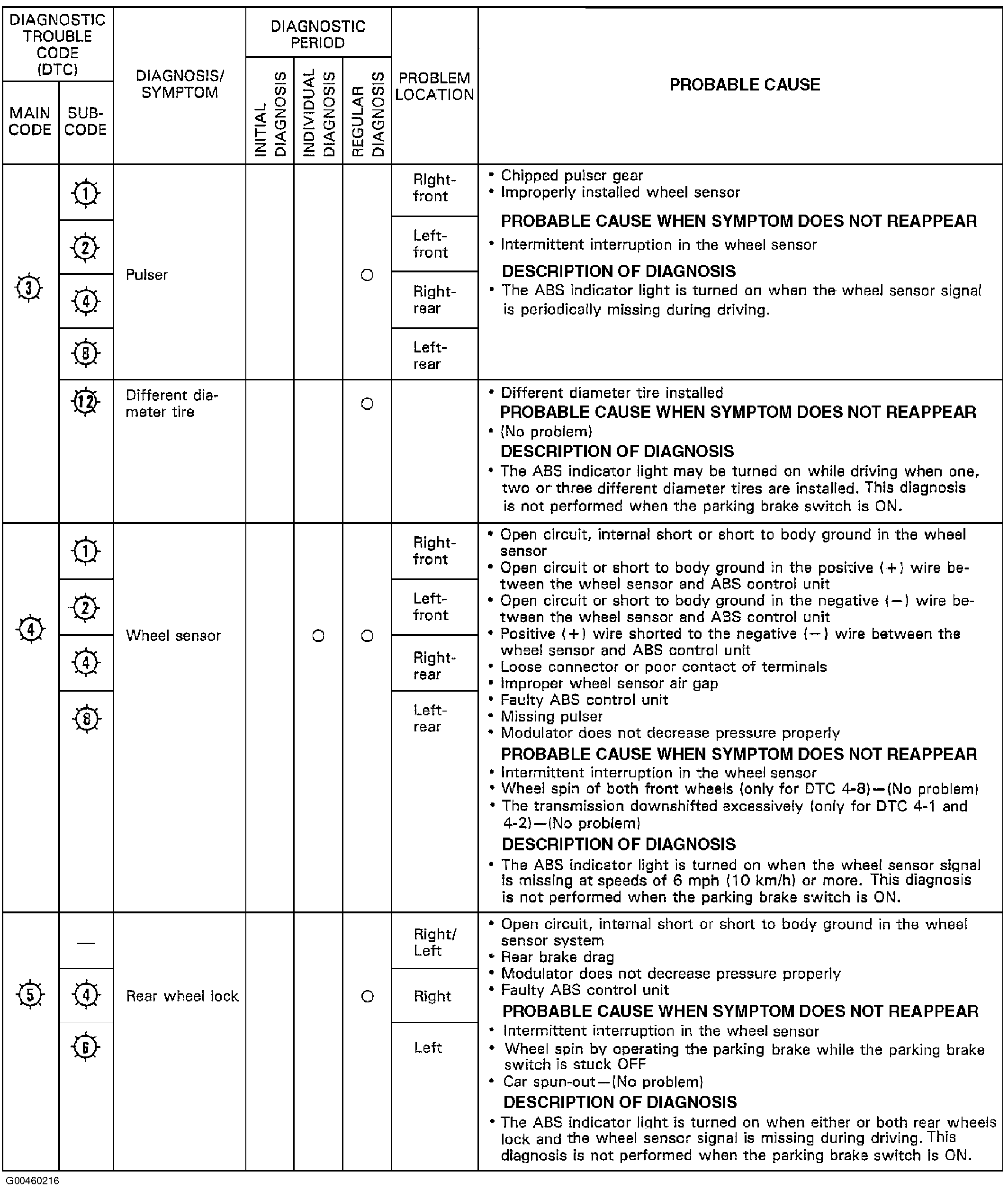

Fig 3: ABS Warning Light Flash & Symptom Diagnosis Chart (2 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

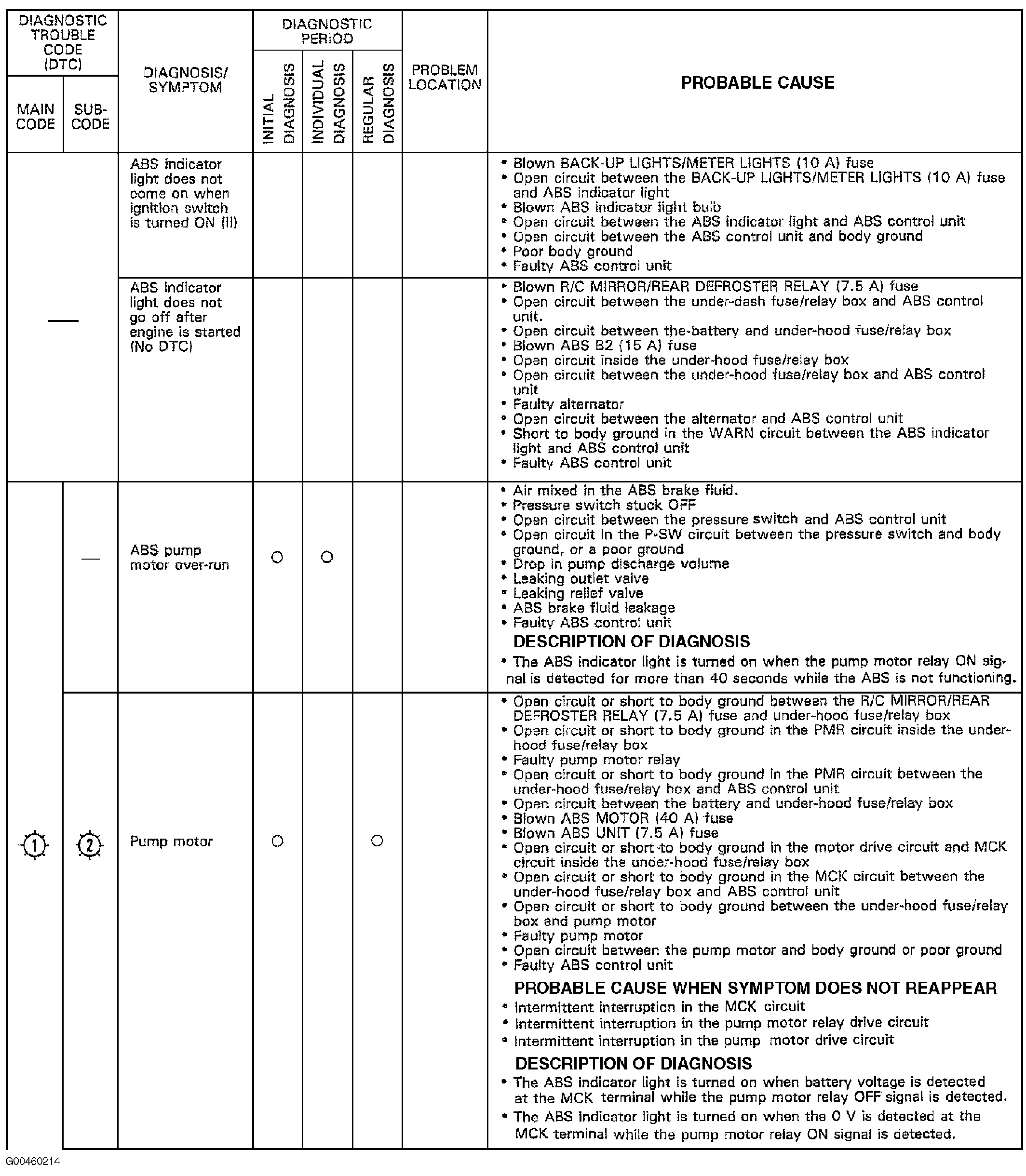

Fig 4: ABS Warning Light Flash & Symptom Diagnosis Chart (3 Of 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Fig 5: ABS Warning Light Flash & Symptom Diagnosis Chart (4 & 4)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
